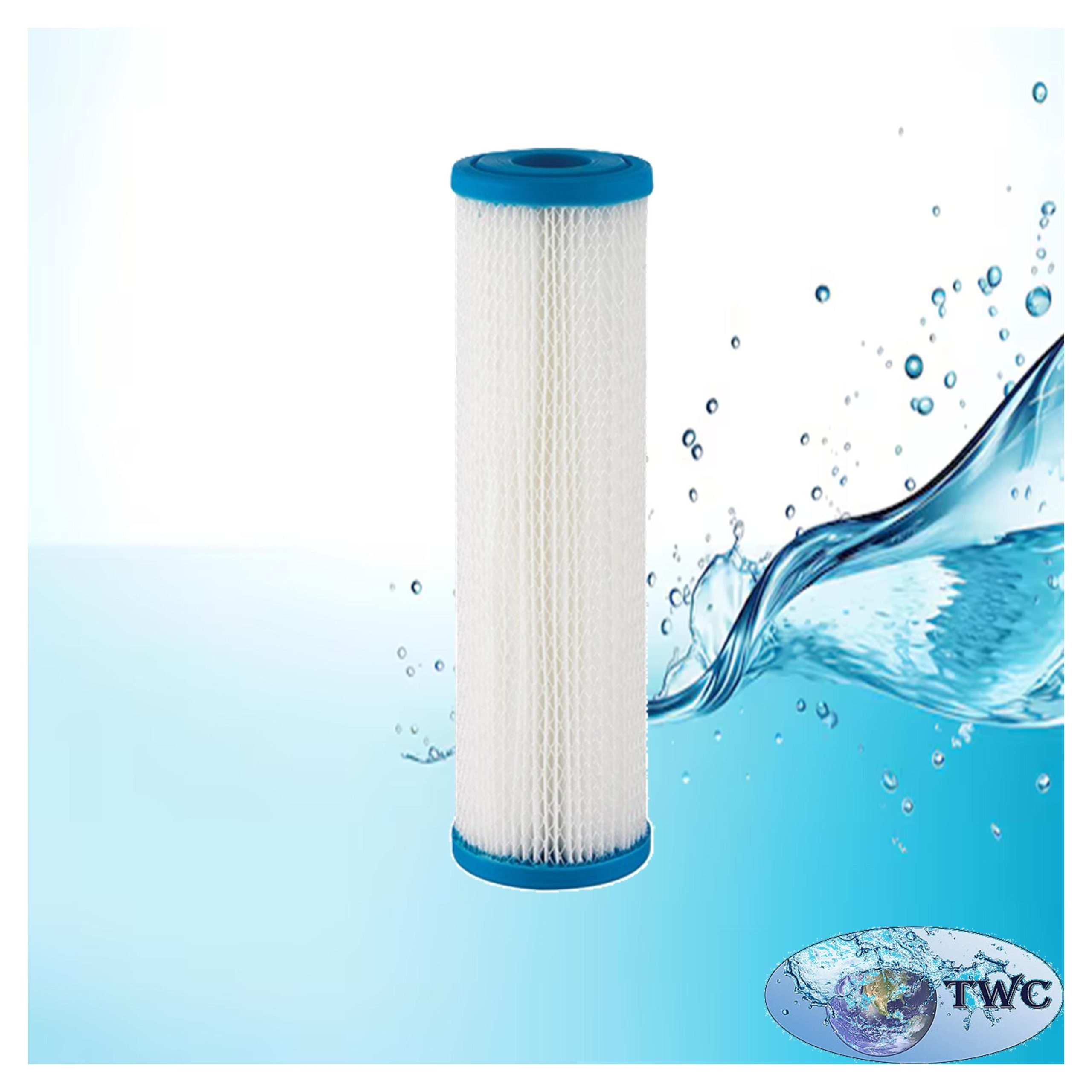

Pleated filter 10 inch standard (Diameter 2,5")

Pleated filter 10 inch standard (Diameter 2,5″)

R57.96

Available in store
Please note that shipping and installation is not included.

Sediment filters, as the name suggests, are used to remove excess sediment from water that passes through them. Sediment filters do not remove any chemicals or heavy metals dissolved in the water. They also do not affect the taste or smell of the water, so make sure you have a sediment problem before choosing to use one of these filters.

Available in:

1 Micron : WC-WT-PLT1001-PP-S

5 Micron : WC-WT-PLT1005-PP-S

10 Micron : WC-WT-PLT1010-PP

20 Micron : WC-WT-PLT1020-PP

50 Micron : WC-WT-PLT1050-PP

Download Technical Data Sheet

SKU: WC-WT-PLT10-PP-S Categories: , , Tags: , , , , , , , , , , , , , , , , , ,

Description

The pleated filter 10 inch standard 2.5″ is a high-performance, washable sediment filter designed to remove sand, silt, rust, dirt, and other suspended particles from water. Manufactured from durable pleated polyester media, it offers a significantly larger filtration surface area than conventional sediment cartridges, providing excellent dirt-holding capacity, high flow rates, and an extended service life.

Unlike disposable sediment filters, the pleated cartridge can be cleaned and reused multiple times, making it a cost-effective and environmentally friendly solution for residential and commercial water filtration systems. It is commonly installed as the first stage of a filtration system to protect carbon filters, reverse osmosis membranes, pumps, valves, and household appliances from sediment damage.

Features:
  • Manufactured from high-quality pleated polyester filter media.
  • Washable and reusable for extended service life.
  • Large filtration surface area for increased dirt-holding capacity.
  • High flow rates with minimal pressure loss.
  • Effectively removes sand, rust, silt, dirt, and suspended particles.
  • Protects downstream filters, RO membranes, pumps, and appliances.
  • Durable construction for long-lasting performance.
  • Excellent resistance to most water treatment chemicals.
  • Easy to clean and maintain.
  • Compatible with most standard 10″ Standard Slimline (2.5″) filter housings.
Specifications:
  • Filter size: 10″ Standard slimline (2.5″ diameter).
  • Filter media: Pleated polyester.
  • Construction: Washable pleated sediment filter.
  • Micron ratings: Available in 1, 5, 10, 20, and 50 microns.
  • Maximum operating temperature: 60°C.
  • Reusable: Yes.
  • Housing compatibility: Standard 10″ slimline (2.5″) filter housings.
Applications:
  • Domestic water filtration systems.
  • Under-sink filtration systems.
  • Reverse osmosis pre-filtration.
  • Municipal water filtration.
  • Borehole water filtration.
  • Commercial water filtration.
  • Irrigation systems.
  • Food and beverage processing.
  • Pump and appliance protection.
  • General sediment removal.
Installation:

Install the cartridge into a compatible 10″ standard slimline (2.5″) filter housing, ensuring all O-rings and seals are clean and properly seated before tightening the housing. Flush the filter thoroughly before use to remove any loose manufacturing residue. Clean the cartridge periodically by rinsing it under clean water or using a soft brush to remove accumulated sediment. Replace the cartridge if it becomes damaged or can no longer be effectively cleaned.

Why choose the pleated filter 10″ standard 2.5″?
  • Washable and reusable for lower maintenance costs.
  • Higher dirt-holding capacity than standard sediment cartridges.
  • Excellent flow rates with minimal pressure drop.
  • Protects downstream filtration equipment and extends filter life.
  • Durable polyester construction for long service life.
  • Available in multiple micron ratings to suit different water conditions.
  • Fits most standard 10″ Slimline (2.5″) filter housings.
  • Ideal for residential, commercial, and light industrial water filtration systems.
Pleated filter 10 inch standard (Diameter 2,5″)

Additional information

Dimensions 6 × 6 × 26 cm
