Description

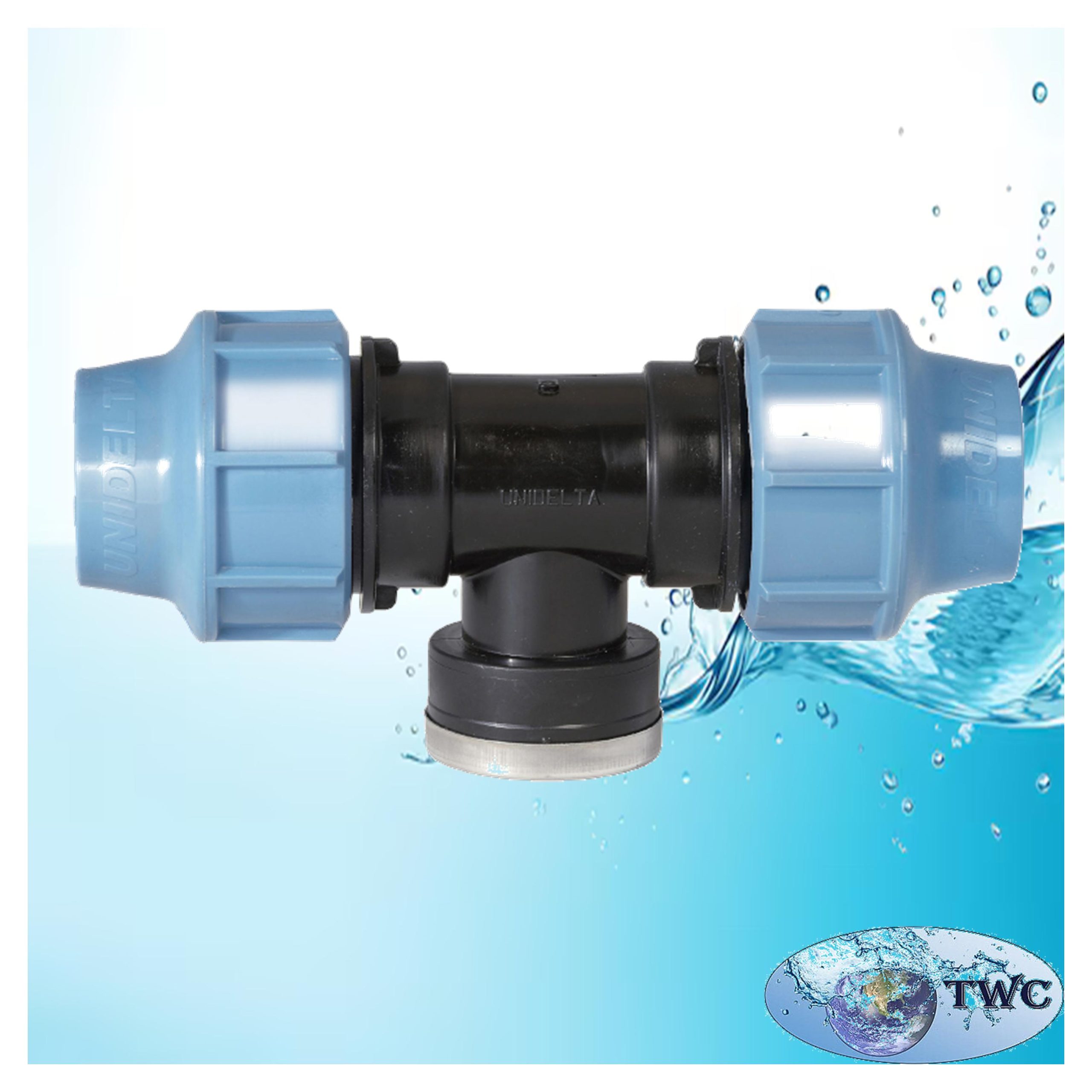

Firstly Unidelta 90 Degree tee with female offtake 63 x 2″ x 63 compression. A Unidelta 90-degree tee with a female off-take compression is a specific type of plumbing fitting. Used to join high-density polyethylene (HDPE) pipe. This T-shaped fitting has two compression ends to connect to the main pipe and a third female-threaded outlet at a 90-degree angle for connecting to other components.

Key features 90 Degree tee with female offtake 63 x 2″ x 63

• Application: These fittings are used to create a branch line for either water distribution or agricultural irrigation systems. They are suitable for both above- and below-ground installations.
• Materials: They are typically manufactured from high-quality, corrosion-resistant polypropylene and are stabilized to protect against UV rays.
• Compression ends: The fitting has a compression nut on the straight-through ends. When tightened, the nut compresses a ring seal around the pipe to create a leak-proof and secure connection without needing special tools.
• Female off-take: The 90-degree branch has a female thread for easy connection to a male-threaded pipe or other plumbing component.
• Pressure and temperature ratings: These fittings are rated for a maximum pressure of 16 bar at 20 degrees Celsius and are suitable for cold water applications.
• Sizes: They are available in various sizes to accommodate different pipe diameters, ranging from 16 mm to 110 mm.
