Description

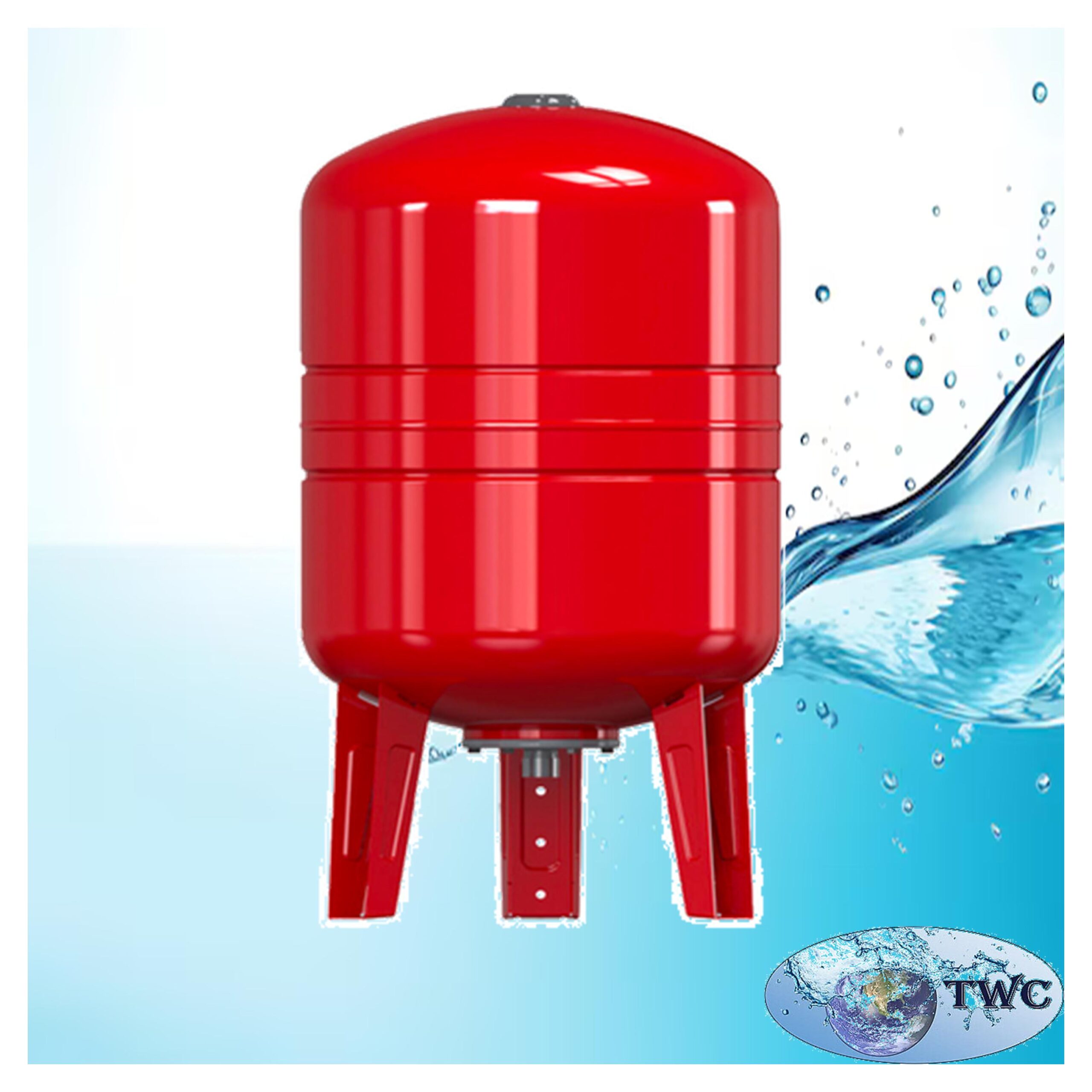

The Aquasystem VAV 50 is a high-performance 50-litre vertical pressure tank designed to provide reliable water pressure, protect pump systems, and improve the efficiency of domestic, commercial, agricultural, and light industrial water installations. Manufactured in Italy to the highest European quality standards, the VAV 50 features a replaceable food-grade EPDM bladder that separates water from compressed air, ensuring hygienic water storage, consistent pressure, and long-lasting performance.
Constructed from durable epoxy-coated carbon steel, the pressure vessel offers excellent resistance to corrosion and is built for years of dependable service. By storing a reserve of pressurised water, the VAV 50 reduces pump start and stop cycles, extending pump and motor life while reducing energy consumption and maintaining stable water pressure throughout the system.
The replaceable bladder design makes maintenance quick and cost-effective, allowing the bladder to be replaced without changing the entire pressure vessel. The Aquasystem VAV 50 is an excellent choice for pressure booster systems, borehole water supplies, irrigation systems, rainwater harvesting, and water treatment applications.
Features:
- 50-litre vertical pressure tank.
- Premium Italian manufacture.
- Durable epoxy-coated carbon steel construction.
- Replaceable food-grade EPDM rubber bladder.
- Maintains stable and consistent water pressure.
- Reduces pump cycling to extend pump and motor lifespan.
- Improves system efficiency and reduces electricity consumption.
- Helps prevent pressure fluctuations and water hammer.
- Suitable for potable water and sanitary water systems.
- Compact vertical design for easy installation.
- Replaceable bladder for simple and economical maintenance.
- Manufactured to stringent European quality standards.
Specifications:
- Model: VAV 50.
- Capacity: 50 Litres.
- Installation: Vertical.
- Tank material: Epoxy-coated carbon steel.
- Bladder material: Replaceable food-grade EPDM rubber.
- Maximum Working pressure: 10 Bar.
- Factory pre-charge pressure: 2 Bar.
- Connection size: 1″.
- Operating temperature: -10°C to +100°C.
Applications:
- Domestic water pressure boosting.
- Borehole water systems.
- Residential and commercial water supply.
- Irrigation systems.
- Rainwater harvesting systems.
- Reverse osmosis and water treatment plants.
- Pump protection systems.
- Light industrial water installations.
Why Choose the Aquasystem VAV 50?
- Extended pump and motor lifespan.
- Stable and reliable water pressure.
- Improved system efficiency.
- Lower electricity consumption.
- Reduced maintenance and operating costs.
- Protection against pressure surges and water hammer.
- Premium Italian engineering for long-term reliability.
- Replaceable EPDM bladder for cost-effective maintenance and servicing.
