Description

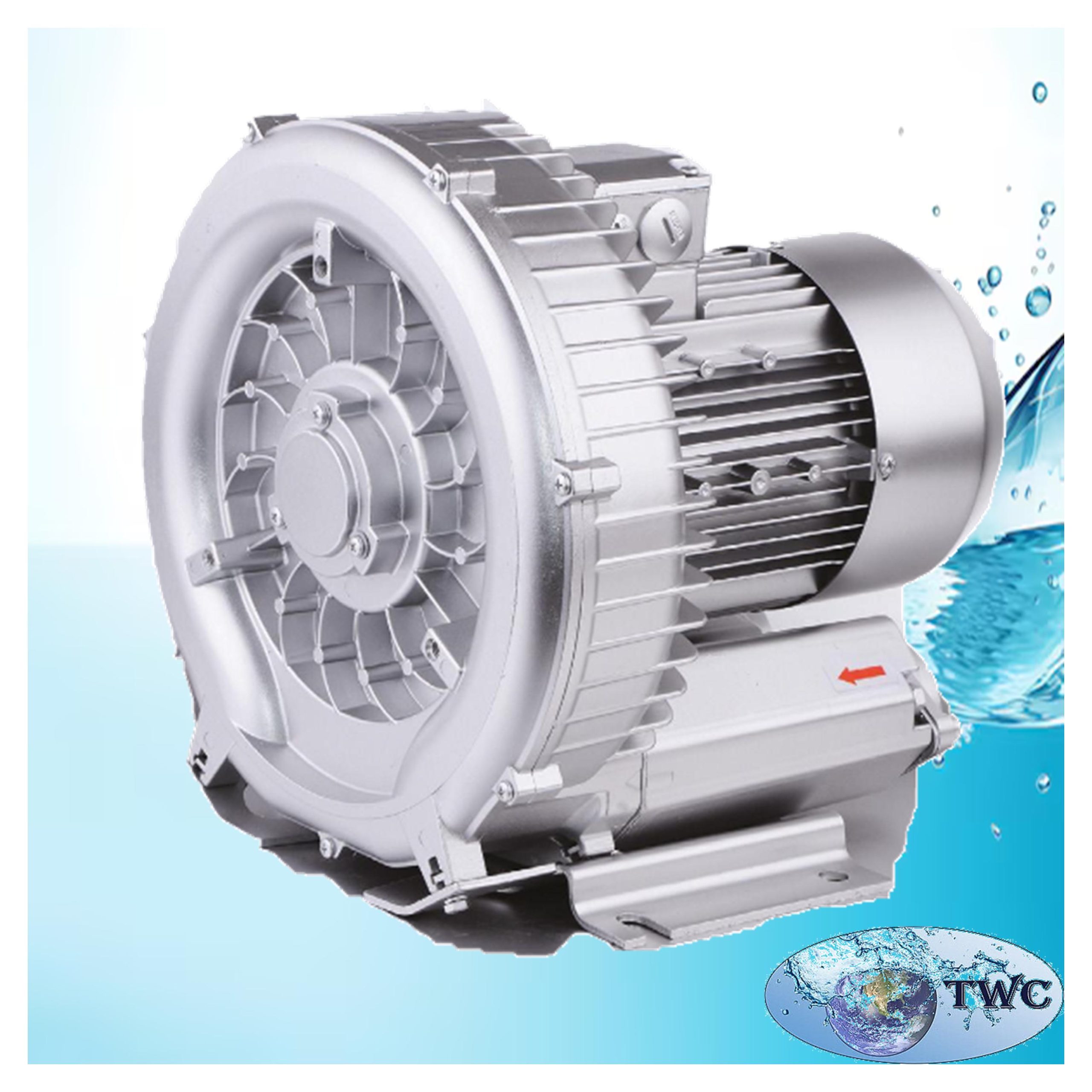

The BL060 single-impeller side channel blower is designed to move large volumes of air for industrial, commercial and water-treatment applications. Its single-stage design allows it to operate as either a blower for air compression or a vacuum pump, depending on the installation and operating requirements.
Powered by a 2.2 kW motor, the BL060 provides a maximum airflow of 318 m³/h, with a rated compression pressure of 190 mbar and a rated vacuum of −180 mbar.
The blower features a die-cast aluminium construction and a dynamically balanced impeller assembly. Its design is intended for continuous-duty operation when installed and operated within the manufacturer’s specified limits.
Suitable applications include aeration, air handling, industrial cleaning processes and other systems requiring a dependable supply of air at relatively low pressure or vacuum.
When selecting a blower, airflow and differential pressure must be considered together to ensure that the unit meets the requirements of the intended application.
Features:
- Single-impeller, single-stage side channel blower.
- 2.2 kW motor.
- Maximum airflow of 318 m³/h.
- Rated compression pressure of 190 mbar.
- Rated vacuum of −180 mbar.
- 2-Inch connection.
- Die-cast aluminium construction.
- Dynamically balanced rotating assembly.
- Designed for continuous-duty operation within specified limits.
- Can operate in compression or vacuum service when correctly configured.
- Suitable for industrial air-handling and aeration applications.
- Compact design for compatible installations.
Specifications:
- Product type: Side channel blower.
- Model: BL060.
- Product code: BL06000102200.
- Impeller configuration: Single impeller.
- Stage configuration: Single stage.
- Motor power: 2.2 kW.
- Frequency: 50 Hz.
- Supply voltage: 200–240 V delta / 345–415 V star.
- Maximum airflow: 318 m³/h.
- Rated compression pressure: 190 mbar.
- Rated vacuum: −180 mbar.
- Rated current at 50 Hz: 9.7 A delta / 5.6 A star.
- Connection size: 2 inches.
- Construction: Die-cast aluminium.
- Noise level: 69 dB(A).
Applications:
- Water-treatment plant aeration.
- Wastewater-treatment aeration.
- Aquaculture and fish-farming aeration.
- Industrial air handling.
- Air supply for compatible bubbling and washing systems.
- Vacuum applications requiring suitable airflow and vacuum performance.
- Industrial cleaning and air-displacement processes.
- Other applications requiring low-pressure air compression or vacuum.
Why choose the BL060 single-impeller side channel blower?
- High airflow capacity: Provides a maximum airflow of 318 m³/h for suitable applications.
- Dual operating capability: Can be configured for compression or vacuum service.
- Robust construction: The die-cast aluminium body is designed for demanding industrial environments.
- Continuous-duty design: Suitable for ongoing operation when used within the manufacturer’s operating limits.
- Versatile applications: Can serve a range of industrial, aeration and air-handling requirements.
- Defined performance specifications: The rated pressure, vacuum and airflow figures help with equipment selection and system design.
