Description

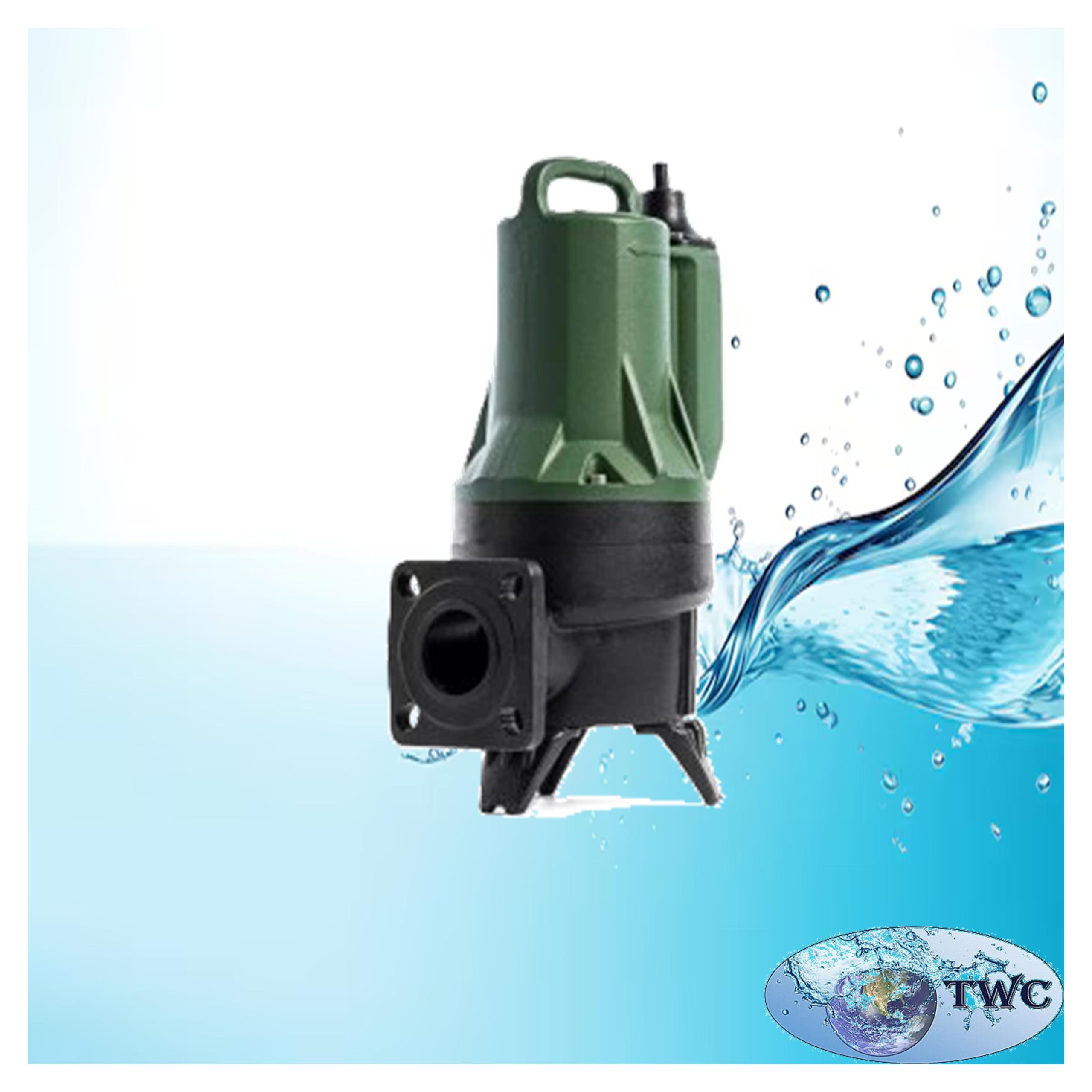

The DAB Feka FXC submersible pumps 0.7kW – single phase is a submersible pump designed for wastewater as well as sewage transfer in both civil and commercial settings. It features a channel impeller with a 50mm free passage, an anti-blocking system, and is suitable for handling gray water, rainwater, and groundwater. The pump is also available in an ATEX version for use in potentially explosive environments.

Pumps with anti-clogging channel impeller. Suitable for drainage and the transfer of effluent and sewage water, containing solids up to 50mm with reduced long fiber content.

Technical Data:

• Flow rate minimum and maximum: 23,8 m3/h
• Head up to: 33 m
• Immersion dept (maximum): 20 m
• Type of pumped liquid: Loaded waters with filamentary bodies, paper or textile material in the presence of domestic or civil waste.
• Supported liquid temperature (maximum and minimum):+ 50°C (+ 60°C for short period of time)
• Flanged and threaded: From 1″½, DN32, DN40
• Impeller type: Grinder
• Start time (maximum) per hour: 20/h
• Class of protection: IP 68
• Motor insulation class: F
• Single phase power input: 1x 220-240V 50Hz
• Three phase power input: 3x 400V 50Hz / 3x 230V 50Hz on request
• Maximum dry run time: 10 min
• Power cable (m) and plug: 10 m
• Possible type of installation: mobile on the ground or fixed on a coupling device
• Certification: EN 12050 ATEX
• Special versions on request: different cable lengths, different voltages and frequencies

DAB Feka FXC submersible pumps 0.7kW – single phase with shredder designed for the drainage of waste water coming from drains in civil and commercial environments. The pump is certified according to the wastewater standard EN 12050-1. Pump suitable for fixed installations with a coupling device or mobile if placed on a base directly on the bottom of the tank.

Thanks to the high-strength grinder, the pump is suitable for installations with small-diameter pipes or those requiring high pressures. The pump is designed for quick maintenance thanks to a constructive solution that provides easy access to the main components of the pump. Automatic versions with power up to 1,5 kW. ATEX version available for use in potentially explosive environments.
