Description

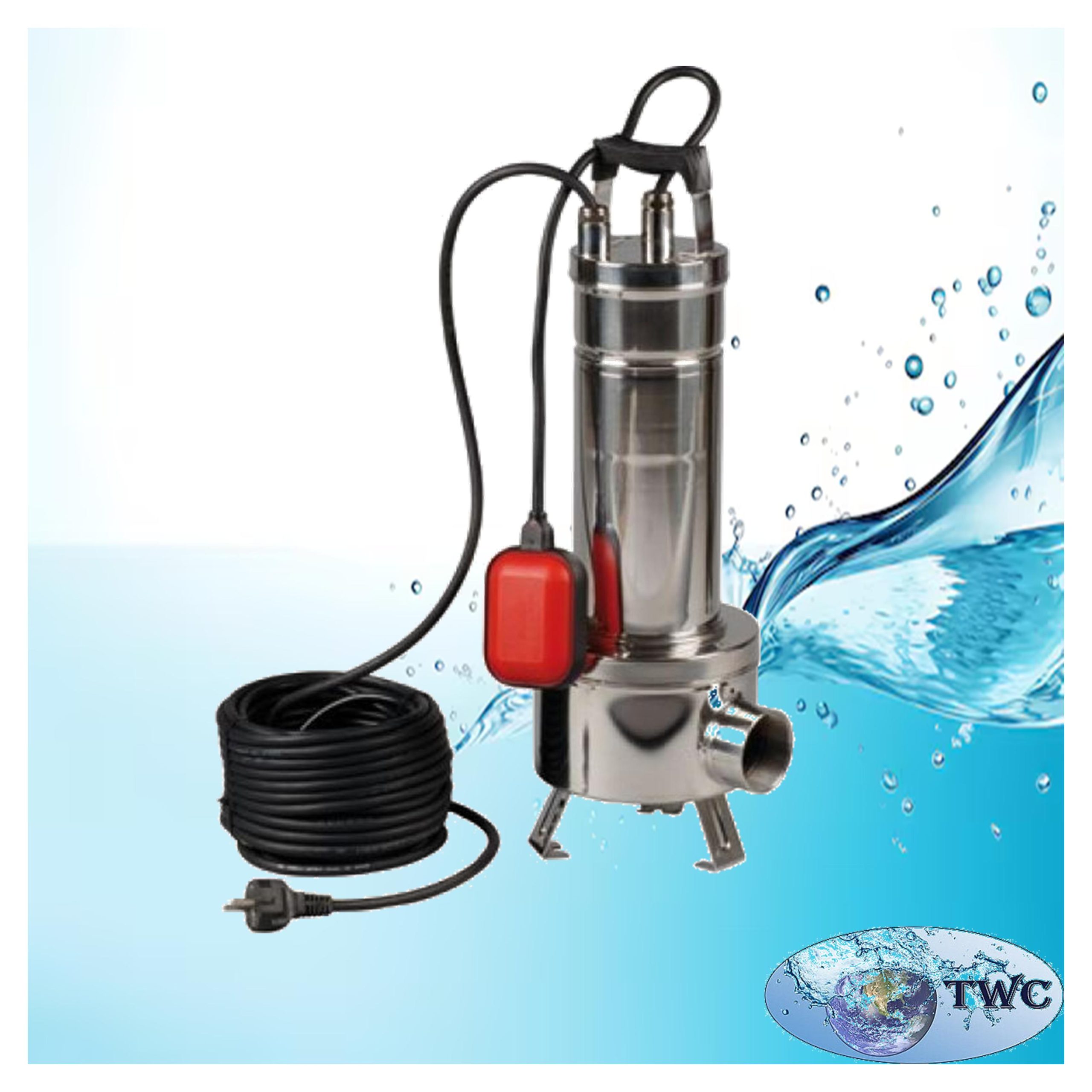

Firstly Feka vs submersible pumps 0.75kW – three phase with micro cast steel liquid vortex impeller, suitable for lifting sewage and drain water in general containing solid matter with size up to 50 mm.

Construction Features Of The Pump

AISI 304 stainless steel pump body, seal cover, motor cover, and cap with handle insulating rubber coated. Micro cast steel impeller. Insulating rubber covered handle. AISI 316 stainless steel motor shaft. Double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/silicon carbide on the pump side. Mechanical seal: Silicon Carbide

Construction Features Of The Motor

Dry, asynchronous and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, selected to ensure low noise and durability. Over current protection as standard for the single-phase version, optional for the three-phase version. Permanently connected capacitor in the single-phase version.

Continuous duty with liquid temperature 35 °C and completely submerged pump. The single-phase version can be supplied with float for automatic operation. Mechanical seal: Carbon/Alumina

DAB Feka vs submersible pumps 0.75kW – three phase Number of poles: 2 Max starts/hour: 20

Operating range: From 0 to 32 m3/h with head up to 14 meters.

Pumped liquid: Sewage water and used water in general, non aggressive.

Free passage: 50 mm.

Liquid temperature range: From 0 °C to +35 °C for domestic use (EN 60335-2-41).  From 0 °C to +50 °C for other uses.

Maximum ambient temperature for operation with motor above water: +40 °C

Maximum immersion depth: 7 meters.

Motor protection class: IP 68

Insulation class: F

Power Inputs: 3 x 400 V

Installation: Fixed or portable, vertical position

Input Voltage A: 1.94

Output Voltage A: 11

HP: 1
