Description

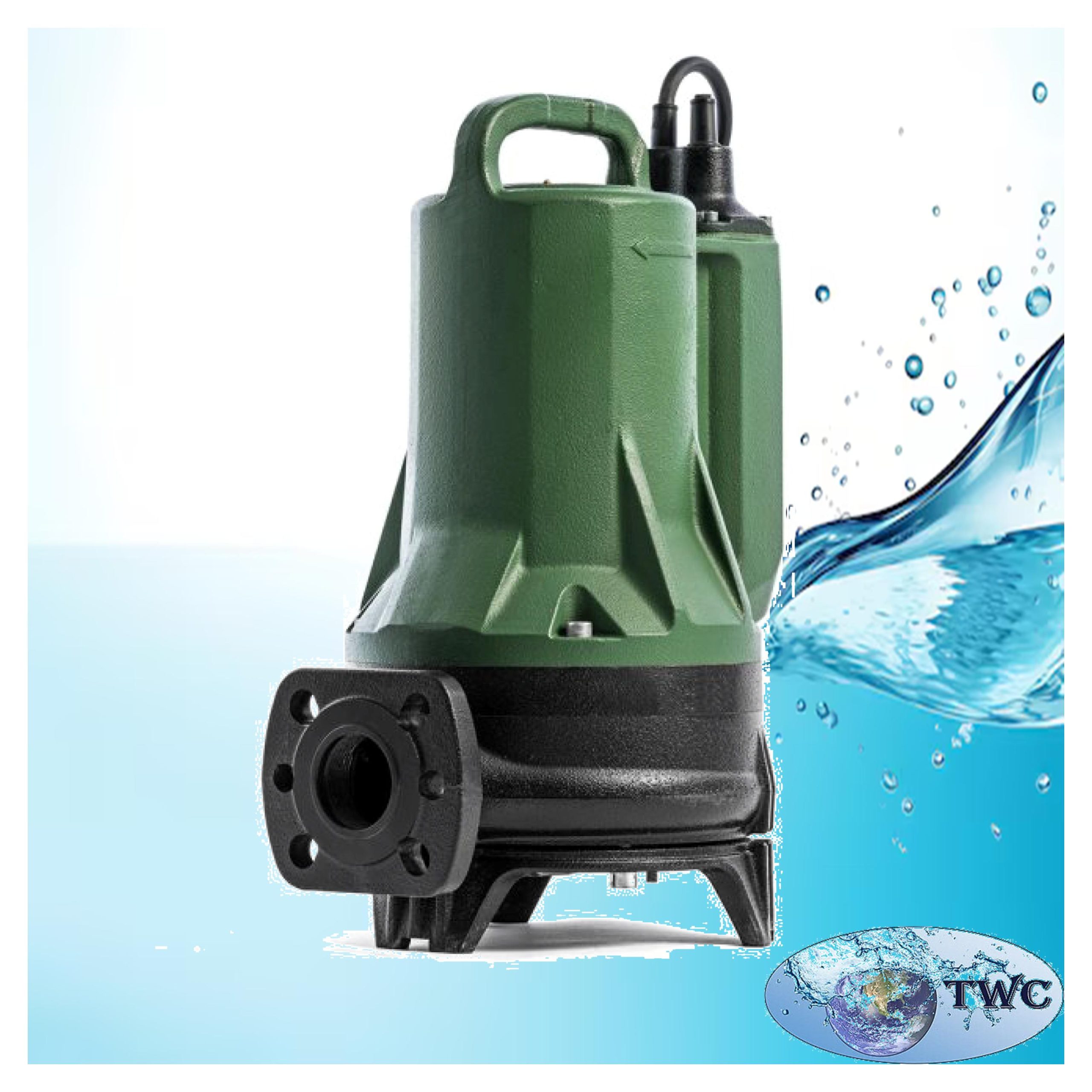

DAB grinder FX submersible pump 0.7kW three phase with a shredder designed for lifting and transferring wastewater in civil and commercial environments. Grinder FX is certified EN 12050-1.
The presence of the shredder makes the pump suitable for systems with small diameter pipes or those requiring high pressures. Shredder in AISI 630 stainless steel. Ideal pump for replacements thanks to its reduced dimensions and to both flanged and threaded delivery ports.
Technical Data of the DAB grinder FX submersible pump 0.7kW three phase
- Flow rate minimum and maximum: 23,8 m3/h
- Head up to: 33 m
- Immersion dept (maximum): 20 m
- Type of pumped liquid: loaded waters with filamentary bodies, paper or textile material in the presence of domestic or civil waste
- Supported liquid temperature (maximum and minimum): + 50°C (+ 60°C for short period of time)
- Flanged and threaded: from 1″½, DN32, DN40
- Impeller type: Grinder
- Start time (maximum) per hour: 20/h
- Class of protection: IP 68
- Motor insulation class: F
- Single phase power input: 1x 220-240V 50Hz
- Three phase power input: 3x 400V 50Hz / 3x 230V 50Hz on request
- Maximum dry run time: 10 min
- Power cable (m) and plug: 10 m
- Possible type of installation: mobile on the ground or fixed on a coupling device
- Certification: EN 12050 ATEX
- Special versions on request: different cable lengths, different voltages and frequencies
Construction features of the pump
Pump body and impeller in cast iron, shredder in AISI 630. Motor shaft in AISI 304 stainless steel. Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the pumped liquid, independent of the direction of rotation. Delivery port both flanged and threaded.
Construction features of the motor
Single-phase asynchronous motor (MA / MNA versions) and three-phase version motor (TNA versions). The rotor is mounted on lubricated bearings. Continuous operation in S1 with the motor completely immersed. Dry running for a maximum time of 10 minutes. Over-temperature sensors in the motor windings with intervention threshold at +130°C. Quick-bonded resin-bonded cable gland, 07RN8-F power cable. Single-phase versions with starter and capacitor in a separate panel, MA versions with float for automatic operation. In the three-phase motors the over-temperature sensor connection is responsibility of the user.
