Description

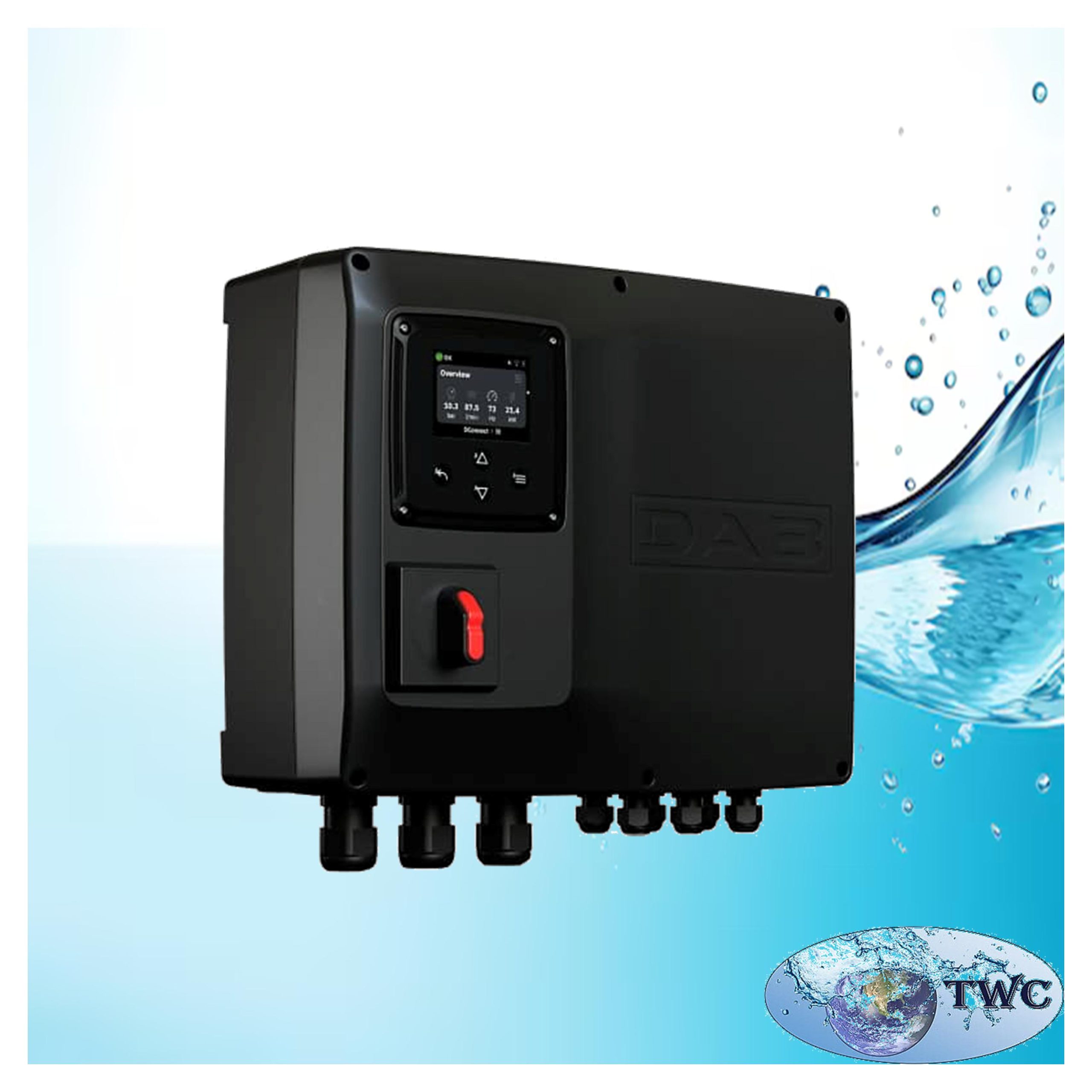

DAB NGPanel 20A – only used for drainage for the control and protection of single-phase or three-phase pumps in residential, commercial and livestock environments, used for removing sewage and drainage water or filling (transferring) water into tanks.
Technical Data
- Single-phase power: 1 x 230 VAC 50/60 Hz
- Three-phase power: 3 x 400 VAC – 3 x 575 VAC 50/60 Hz
- Maximum operating current: 2 x 20 A (1 x 230 VAC – 1 x 110 VAC)
- IP protection: IP55 and NEMA 3R
- Room temperature: -10°C +50°C
- Starting capacitor: supplied as an additional kit
- Maximum altitude: 1000 m. above sea level
- Certification: CE, UL/CSA
The DAB NGPanel 20A – only used for drainage protects the pumps and allows them to operate in automatic mode. While connected to floats, level probes, or depth probes. The graphic display allows for easy use thanks to the multilingual configuration wizard. It is possible to select the operating mode (filling or emptying) and the types of controls (floats, level probes or depth probes), or scroll through the alarm history.
Inside the control panel are: connection terminals for single-phase or three-phase power supply (L1, L2, L3); connection through single-phase or three phase pump meters (U-V-W); connection terminals for thermal protection; three flashing light or siren alarm signalling output contacts.
