Description

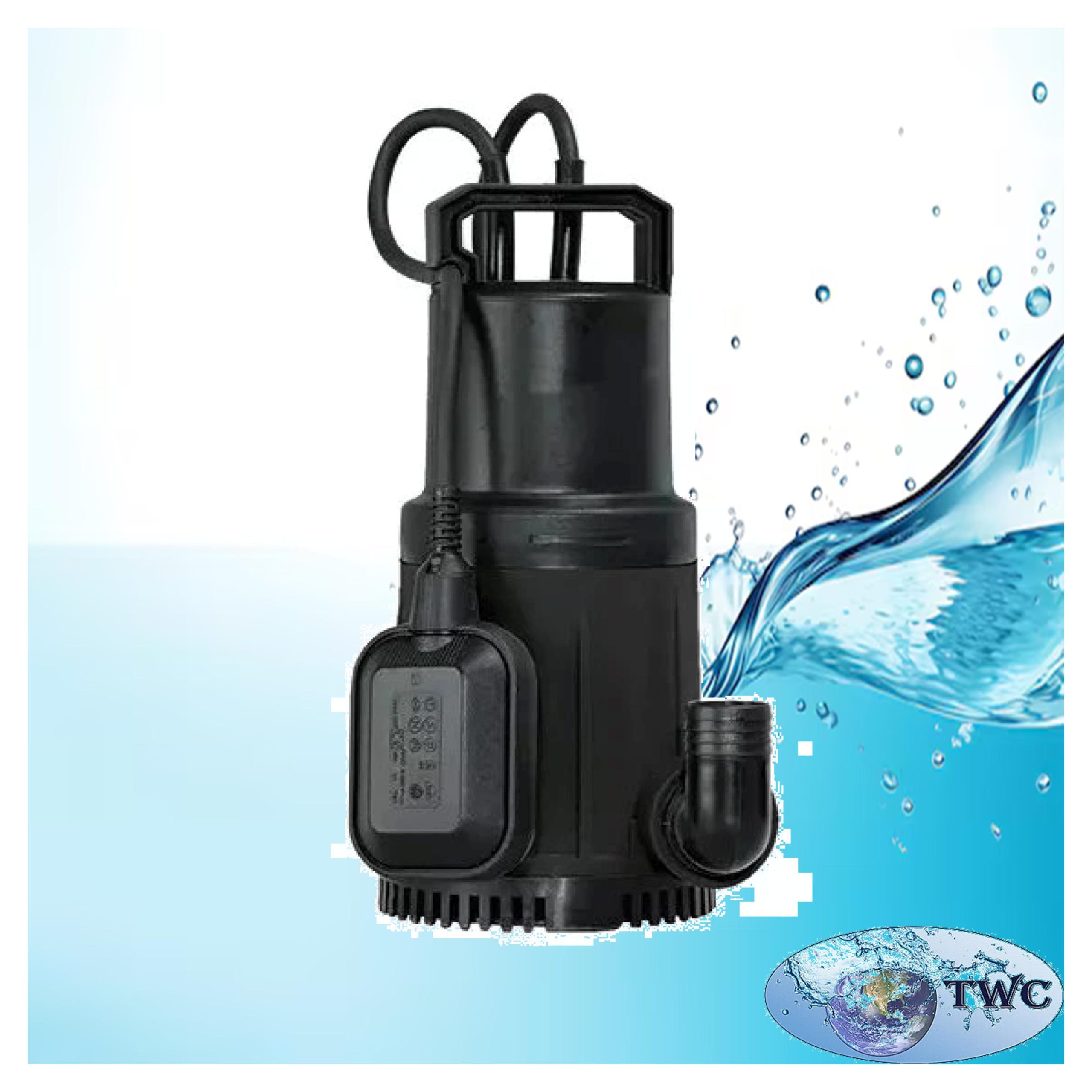

First thing to remember is the DAB nova for salt water 0.2kW a multi- purpose submersible pump specifically constructed for use in salt water. Furthermore anti-corrosive and rust-proof materials. As well as motor casing, shaft, screws and nuts made of stainless steel AISI 316. The pumps are designed to pump clean water or water containing solids with a diameter from 5 to 10 mm
Cable with tin plated conductors. Motor with thermic overload protection. Wear resistant shaft and impeller. Excellent cooling of the motor that enables the pump to operate even when it is partially submersible. Manual and automatic version with start/stop float switch. Supplied with power cable with plug and self-sealing fitting.
Technical Data of the DAB nova for salt water 0.2kW
Operating range: from 1 to 7.5 m3/h with head up to 6 meters.
Liquid temperature range: from 0 °C to +35 °C for domestic use.
Pumped liquid: dirty water, without fiber, including salt water.
Max. immersion depth: 7 meters.
Power input: 1 x 230 V
Application
The vertical delivery draining submersible pump has been specifically built for draining applications in salt water installations. It may also be used as a portable pump in emergency situations. The built-in float level switch, in the automatic version, allows fixed installation, ensuring automatic operation.
Construction features of the pump
Hydro resistant techno polymer pump body, cover, and suction grid. AISI 316 stainless steel motor, rotor shaft, and bolts and screws.
Cable with tin plated conductors.
Construction features of the motor
Finally submersible type continuous duty asynchronous motor. Thermal overheating protection.
