Description

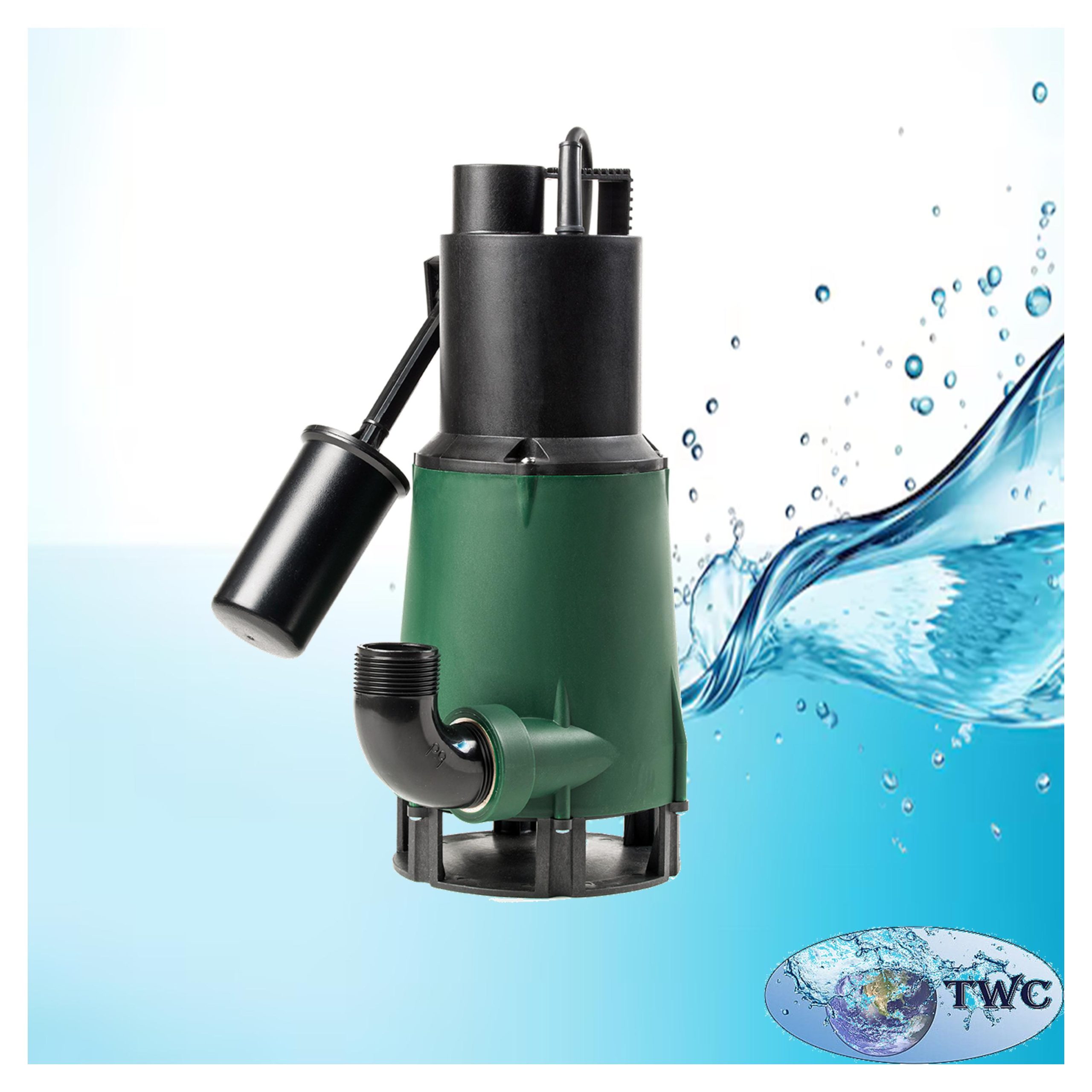

The new DAB Nova submersible pump 0.20kW were redesigned to mark the occasion of forty years on the market and to make them even more reliable, robust and ergonomic.

As has been noted high performance. NOVA and FEKA have professional features such as the oil chamber triple seal and lubricated bearings. Being that better protection against corrosion Motor in AISI 304 stainless steel and shaft in AISI 431 steel for better protection against corrosion.

Technical Data

Operating range:

Flow rate up to 16 m3/h with head up to 10.2 meters

Liquid temperature range:

From 0 °C to +35 °C for domestic use. From 0 °C to +50 °C for other uses.

Output

1.1/4″ F

Pumped liquid:

Cesspool sewage water.

Max. immersion depth: 7 meters.

Maximum dry run time: 1 minute.

Protection class: IP 68.

Insulation class: F.

Free Passage: 5mm

Most important the DAB Nova submersible pump 0.20kW line with open impeller is suited to all clean and waste water with solids measuring up to 10 mm. It can be used to empty tanks, vats or cisterns, drain flooded basements, cellars and garages, and prevent flooding when installed in rainwater wells.

It can also be used as a portable pump in emergencies to drain water out of flooded rooms. They can also be used for emptying tanks or cisterns. The pumps are suitable for drainage of flooded basements, cellars and garages or to prevent flooding when installed in rainwater collector wells, which can also be used as a portable pump in emergency situations to drain water from flooded premises.
