Description

Firstly the Seko Kompact AMS200 dosing pump series is a simple solenoid dosing pump, operating with a micro-processor to manage the dosing. Given that its external enclosure has an IP55, which guarantees a protection versus splashing water and aggressive environments.

The Dosing pump Seko AMS200 head has a manual priming valve, the flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100% of the max flow rate moreover it is equipped with the low-level alarm to stop or not the pump and includes the installation kit as well.

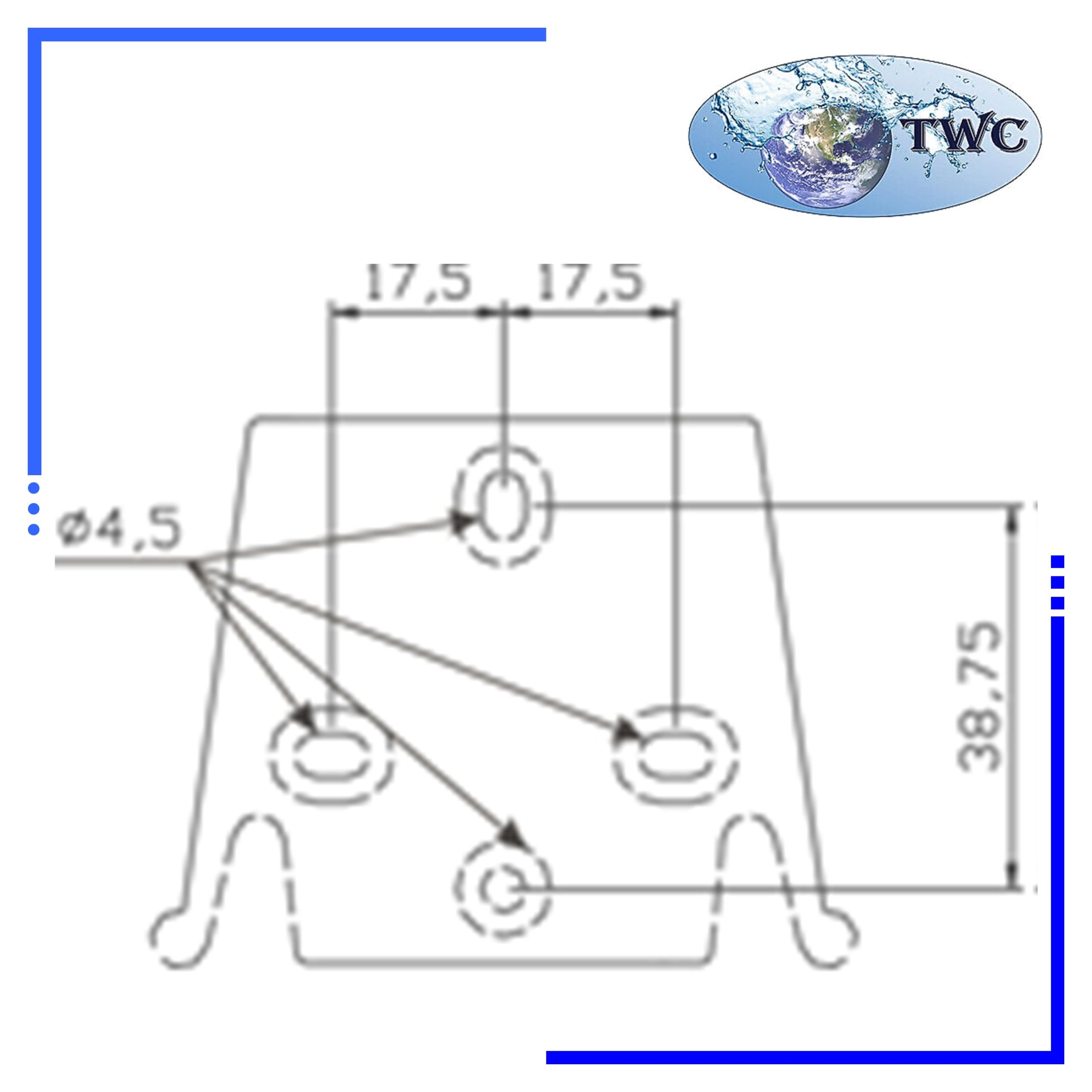

Finally compact pump can be fixed on wall by fixing bracket provide with the pump or top of drums by the optional foot fixing bracket. Then the ambient temperature at the site of pump installation cannot exceed 40°C, and the relative humidity cannot be above 90%; the pump cannot be installed in a place exposed to sun or bad weather.

Hydraulic Characteristics:

Power Supply:

240VAC

Flow rates:

3.0 l/ph – 10 bar pressure

5.0 l/ph – 8 bar pressure

Max Frequence -Strokes per min:

160

Stroke Capacity (cc/str.):

3.0 l/ph – 10 bar pressure – 0.31

5.0 l/ph – 8 bar pressure – 0.52

Installation Kit Available:

PVDF-T

PDVF

Seals Available:

FKM-B

EPDM

We can change technical data without notice.
