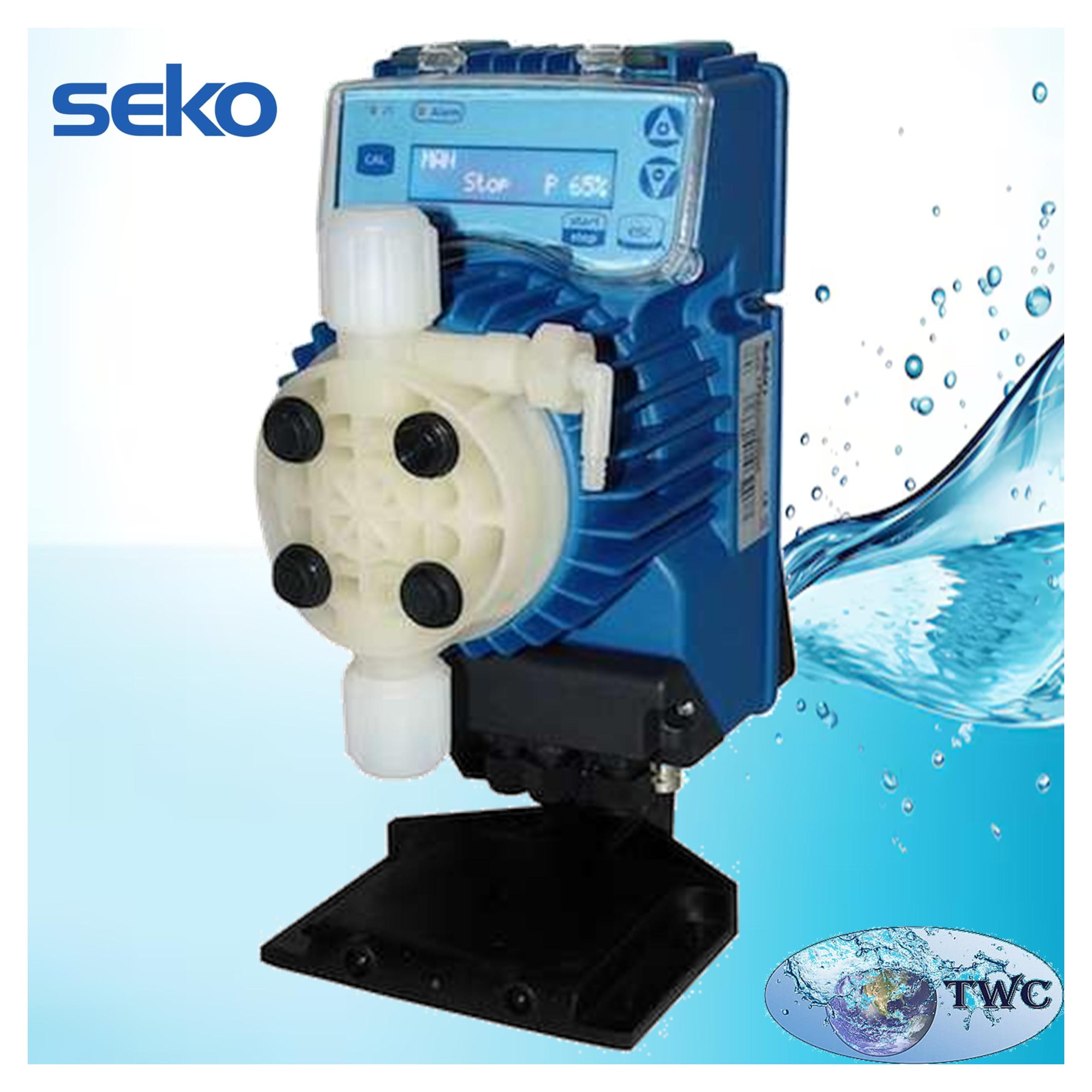

Dosing pump Seko TPR603

R15,040.62

INCLUDING VAT

Please note that shipping and installation is not included.

Dosing Pump for pH/conduct control

TPR603 Solenoid Dosing Pump for conductivity and/or pH control

Alternative pump models for higher duties available on request. Refer to brochure below for models and duties available.

Description

The Seko TPR603 is ideal for pH/conductivity control in a single unit. The pump includes a controller with adjustable feedback loop parameters and is capable of dosing an acids or bases to a pH setpoint.

Please note that  probes are sold separately.

Supplied with Viton seals as standard. Please specify alternative EPDM seals for chemicals such as caustic lye.

What’s in the box:

  • Complete pump and controller
  • Removable base/stand
  • 6mm suction (4m) and delivery tube (2m)
  • Foot valve
  • Injector

Digital interface dosing pump with proportional dosing for constant or proportional dosing and with a built in pH/Redox meter. It also features a PT100 probe input for thermal compensation, a repetition alarm relay and and On-Off input for remote control.

Features

  • PVDF pump head, PTFE diaphragms Viton Seals and ceramic ball valves offer outstanding compatibility with chemicals such as chlorine, hydrogen peroxide and peracetic acid
  • Stabilized multi power supply always draws specific current to activate the pump, regardless of power-supply fluctuations
  • Statistics menu allows pump performance and chemical consumption to be monitored
  • Constant or proportional dosing (including batch mode) via analogue and digital inputs
  • PT100 probe input enables thermal compensation
  • Programmable timer facilitates regular dosing

Specification:

  • Flow rate: 0.4–110 l/h
  • Pressure: up to 20 bar (290 psi)
  • Stroke rate: up to 300 strokes/minute
  • Wetted part materials: PVDF, PTFE, EPDM, FPM, ceramic and AISI 316 (ATEX)
  • Power supply: 100–240 VAC 50/60 Hz
  • Analogue input: 4–20 mA
  • Ingress protection: IP65
  • ATEX classification: CE Ex II 3GD | Ex ic nA IIB T4 Gc | Ex tc III CT120°C Dc IP65
Dosing pump Seko TPR603

Additional information

Weight 4 kg
Dimensions 22 × 23 × 19 cm
