Description

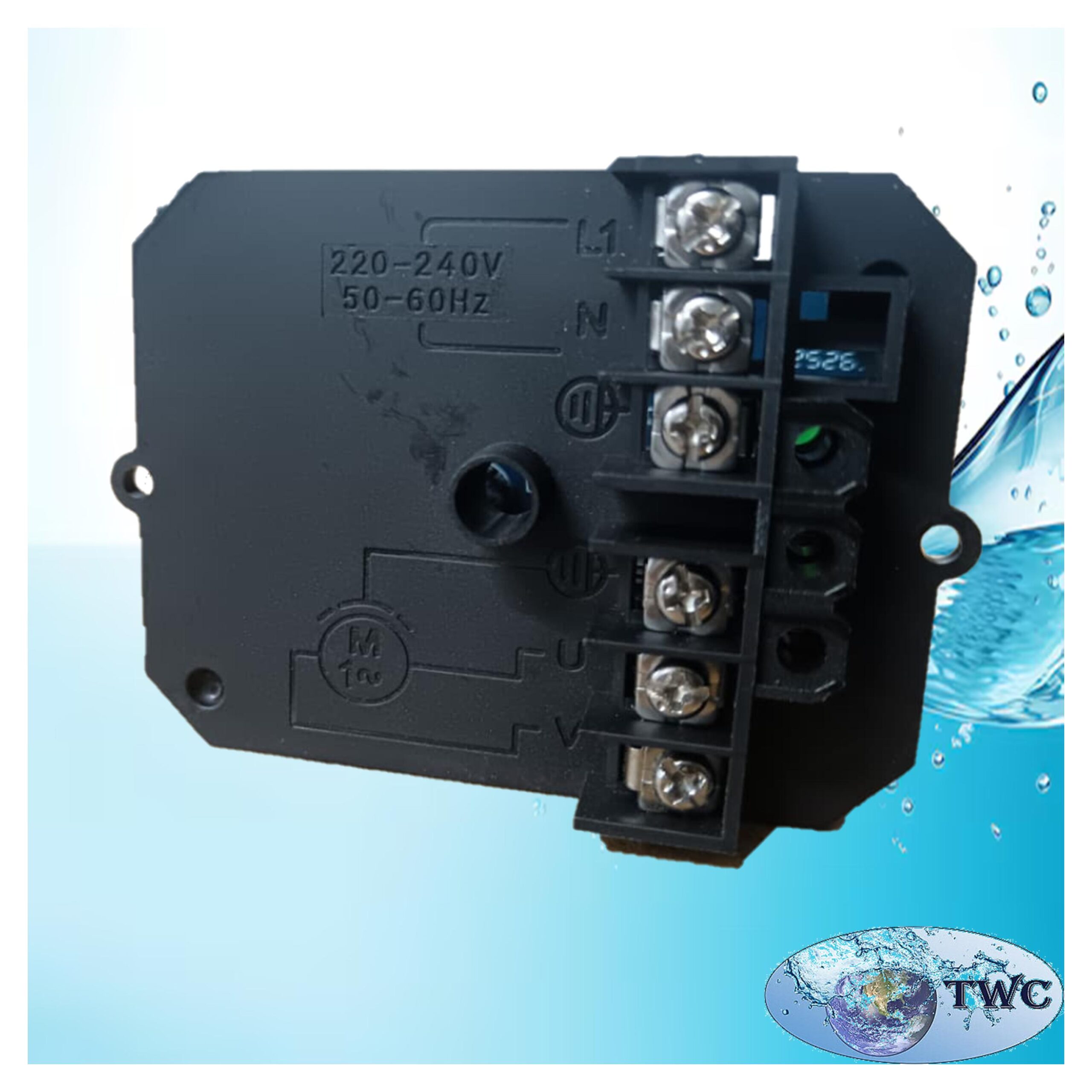

Upgrade or repair your water management system with the DSK replacement control module block. This heavy-duty, internal electrical control core handles the high-voltage switching logic for your automatic pump controller. It features a robust barrier terminal block designed to manage incoming mains power and distribute reliable 220V–240V current directly to your water pump motor.

Technical Advantages

• Premium Insulation Barriers: Raised structural divider fins prevent high-voltage arcing, cross-wire short-circuits, and physical contact between terminals.
• Corrosion-Resistant Hardware: Equipped with zinc-plated steel clamping screws that bite securely onto single-strand or stranded copper wires without stripping.
• Molded-In Wiring Matrix: permanent, laser-molded schematic symbols (L2, N, U, V and earth⏚) ensure error-free wiring during assembly or field maintenance.
• Heat-Resistant Matrix: Injection-molded from a specialized fiber glass-reinforced polymer to resist warping, high thermal loads, and mechanical pump vibrations.

Module Interface Specifications

• Terminal Input Configuration: 3-Port Mains Supply Line (L1 Live, N Neutral, ⏚ Earth Ground)
• Terminal Output Configuration: 3-Port Motor Supply Load (U Neutral, V Live, ⏚ Earth Ground)
• Compatible Voltage Range: 220V to 240V AC Single-Phase (M 1~)
• Maximum Electrical Load: 10A Inductive Load / Peak Surge 16A
• Operating Frequency: Universal 50Hz / 60Hz Compatibility
• Terminal Capacity: Fits up to 2.5mm² wire gauge leads

Why Choose a Standalone Replacement?

• Cost-Efficient Fix: Avoid purchasing a full pressure switch housing or re-plumbing the water lines by replacing only the failed DSK replacement control module .
• Drop-In Compatibility: Specially molded to fit perfectly inside standard DSK 2.3/3 automatic pump controller housings with zero structural modifications needed.
• Enhanced Safety Arching Prevention: Built with tall, integrated structural divider walls between the brass leads to permanently isolate high-voltage currents and eliminate dangerous cross-wire short-circuits.
• Corrosion-Resistant Hardware: Pre-equipped with heavy-duty, zinc-plated steel clamping screws that bite tightly onto solid or stranded copper wire leads without stripping the threads.
