Description

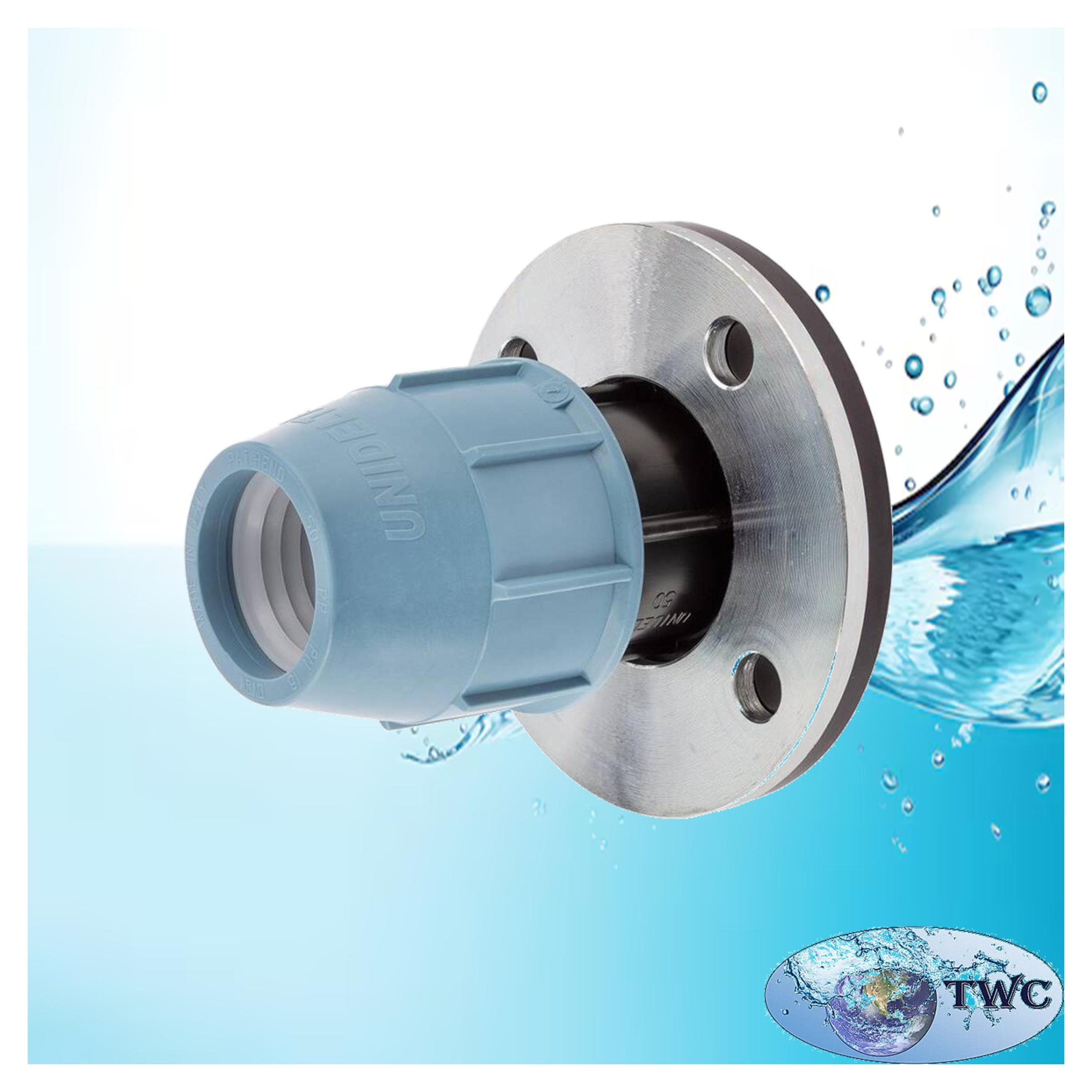

Firstly a Unidelta Flanged adaptors 63 x 2″ compression. Is a type of pipe fitting used to connect a polyethylene (PE) pipe to a flanged fitting or valve. It combines the robust mechanical connection of a flange with the easy-to-install, leak-proof qualities of a compression fitting.

Key features

• Material: The body is made from high-quality polypropylene, which is resistant to corrosion, UV rays, and various chemical substances.
• Dimensions: The sizes, such as “DN” (nominal diameter) and “d” (outer diameter), that specify the compatibility of the adaptor.
• Pipe compatibility: Designed specifically for use with PE80 and PE100 polyethylene pipes, typically with outside diameters ranging from 16 mm to 110 mm.
• Polyethylene (PE) pipes: The specific type of plastic pipe that these fittings are designed to connect, including high-density (HDPE) and low-density (PELD) variations.
• Flange connection: One end of the adaptor has a flange with bolt holes that can be securely bolted to a corresponding flange on another pipe, valve, or component.
• Compression mechanism: The other end features a compression mechanism for creating a tight, hydraulic seal around the PE pipe. This consists of a nut, a grip ring, and a rubber O-ring.
• Pressure rating: These fittings can be used for water and other fluid distribution systems at pressures up to 16 bar.
• Dimensions: The sizes, such as “DN” (nominal diameter) and “d” (outer diameter), that specify the compatibility of the adaptor.

Advantages of the Flanged adaptors 63 x 2″

• Secure connections: The combination of the flanged mechanical connection and the compression seal creates a reliable, leak-proof joint.
• Ease of installation: The compression mechanism allows for straightforward installation without the need for specialized welding equipment. The bolted flange simplifies alignment.
• Versatility: These adaptors can be used to join PE pipe to components made of other materials, including ductile iron or steel, as long as they have a matching flange.
• Simple maintenance: The bolted flange allows for easy disassembly and reconnection for maintenance or inspection purposes.

Typical applications

• Water distribution: Used in pressurized water systems for residential, agricultural, and civil engineering projects.
• Irrigation systems: Suitable for a range of irrigation applications due to their durability and ease of installation.
• Industrial plumbing: Can be used in various industrial settings that require a strong, sealed connection between PE and flanged pipe systems.
• Unidelta Universal Fittings: These allow for the connection of PE pipes to pre-existing pipes made of other materials, including steel, copper, and lead.
