Description

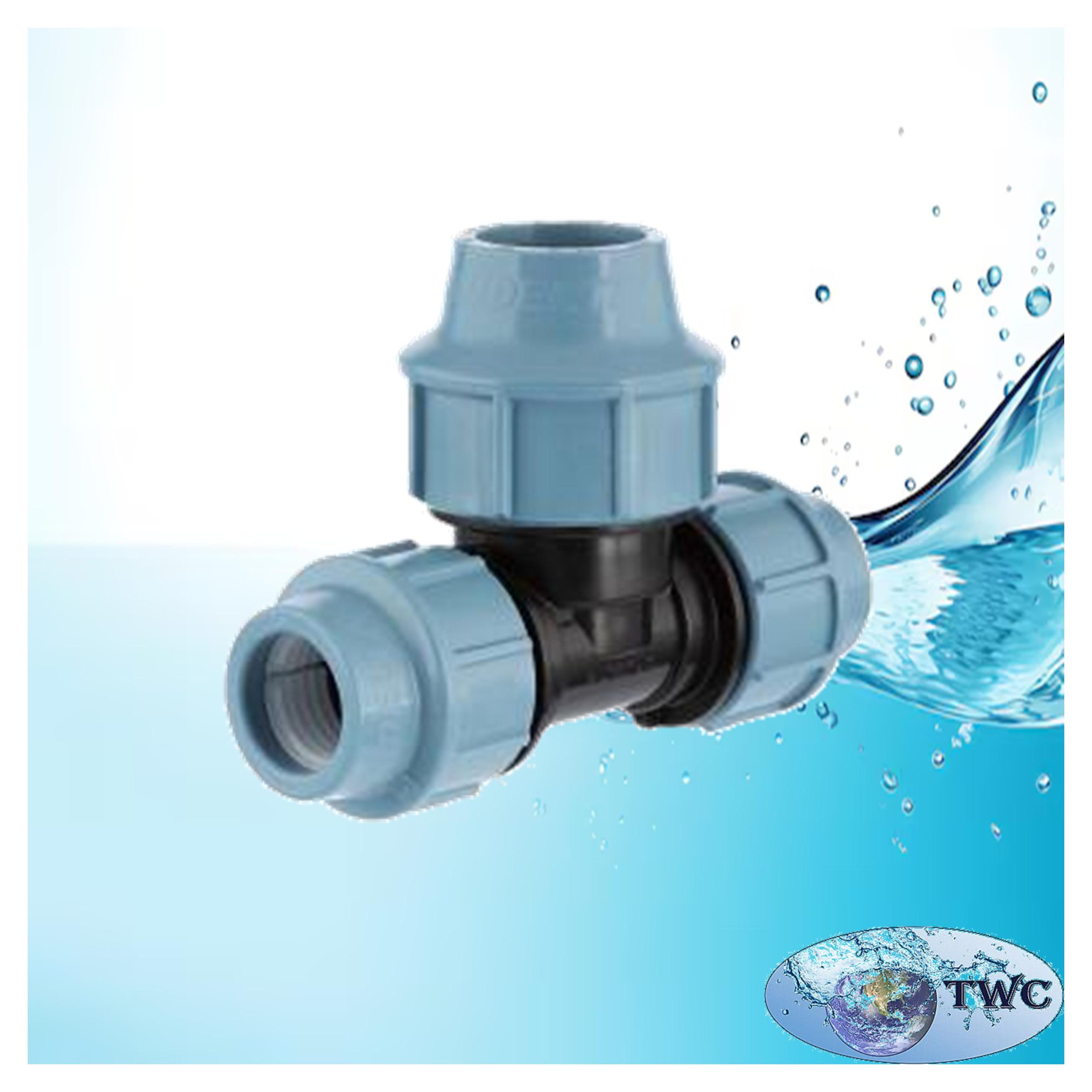

Firstly a Unidelta Inline increasing tee 20 x 25 x 20 compression fittings for polyethylene (PE) pipes, including tees that can have different branch sizes. This compression fitting functions as an increasing tee, connecting two pipes of one size to a third pipe of a larger diameter at a 90° angle. The “inline” designation refers to a straight-through style. Where at least one of the ends has a larger diameter than the other two.
To order the correct fitting, you need to know the diameter of the three pipes you are connecting. The sizing convention for an increasing tee is typically written as A x B x A, sizes are expressed in millimeters (mm) where:
- A represent the two in-line pipe openings
- B represents the 90-degree branch opening
All things considered Unidelta compression fittings are made from high-quality, UV-resistant polypropylene and are rated for pressures up to 16 bar. Given that inline increasing tee 20 x 25 x 20 ensures a perfect hydraulic seal in the construction of pressurized distribution systems.
Finally this compression tee is used in polyethylene (PE) piping systems to create a branch line with a larger diameter. In fact it is manufactured by Unidelta, a leader in plumbing and heating components. As a matter of fact these are primarily used in plumbing and irrigation systems.
Specifications:
- Material: Made of polypropylene (PP).
- Function: Allows for the connection of a larger pipe at a 90° angle.
- Compatibility: Designed for use with PE pipes.
- Sizes: Available in various size combinations to accommodate different pipe dimensions.
- Leak-proof: Engineered to create a secure, reliable seal.
- Installation: Uses a user-friendly compression fitting mechanism.
- Pressure rating: The compression fittings have a maximum working pressure of 16 bars for generic applications.
- Operating temperature: These fittings are rated for an operating temperature between 0°C and 45°C.
- UV and chemical resistance: The polypropylene body is resistant to UV rays and a variety of chemical substances, making it suitable for both indoor and outdoor use.
- Compatibility: Unidelta fittings are compatible with PE80 and PE100 pipes that comply with ISO 4427.
