Description

Pedrollo PQM100 – 1.1KW Limits:

• water supply systems
• air conditioning systems
• washing systems
• pressure systems
• cooling systems
• ironing system
• irrigation pumps

Application Limit:

• Firstly temperature of the liquid from -10 °C to +90 °C
• Ambient temperature between -10 °C and +40 °C (+50 °C for PQ 60)
• Manometric suction lift up to 8 m
• Max. working pressure: – 7 bar

PERFORMANCE RANGE:

• Flow rate up to 90 l/min (5.4 m3/h)
• Head up to 100 m

APPLICATION LIMITS:

• Manometric suction head up to 8 m
• Liquid temperature between -10 °C and +60 °C
• Ambient temperature up to +40 °C (+50 °C for PQ 60 and PQ61)
• Maximum working pressure:
  – 6 bar for PQ 60, PQ 61, PQ 65
  – 7 bar for PQ 80
  – 10 bar for PQ 90, PQ 100, PQ 200, PQ 300

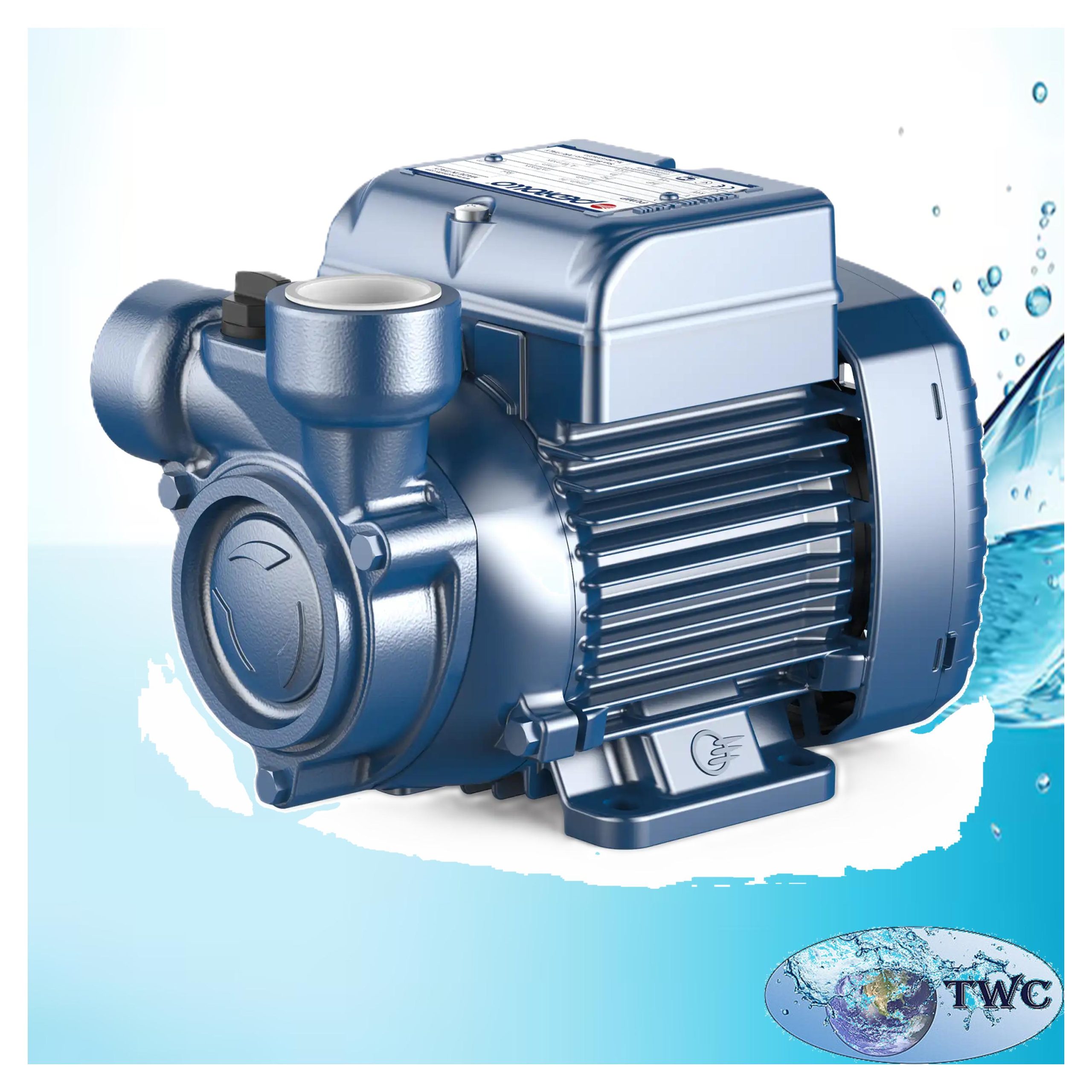

Pedrollo PQM100 – 1.1KW

As a result of their reliability and the fact that they are easy to use, these pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in conditioning and cooling systems, for irrigation, etc.

INSTALLATION AND USE:

Peripheral pump with radial suction. Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Its compact design and efficient hydraulic performance make it ideal for domestic applications.
