Description

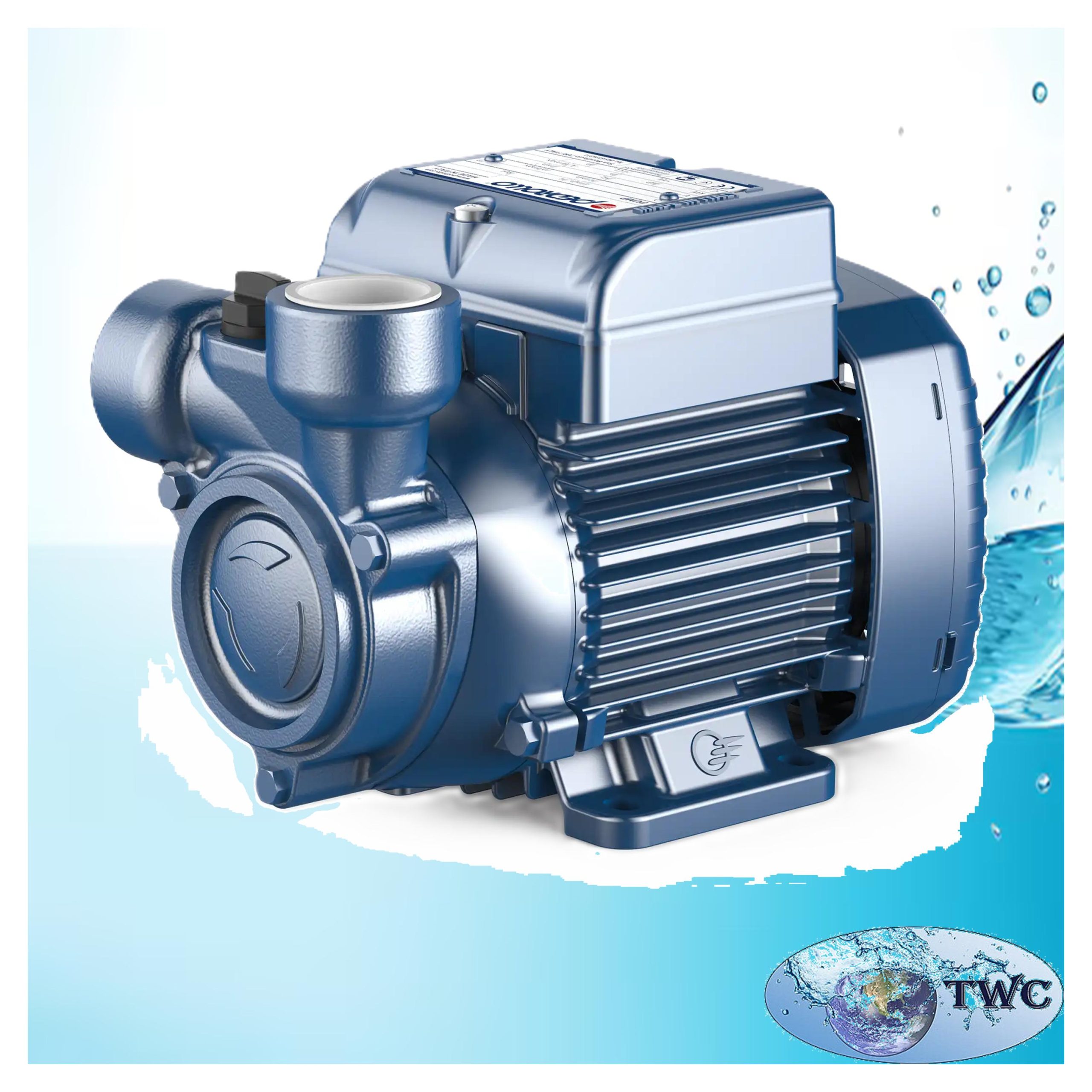

Pedrollo PQM60 – 0.37KW
Application Limit:
- Temperature of the liquid from -10 °C to +90 °C
- Ambient temperature between -10 °C and +40 °C (+50 °C )
- Manometric suction lift up to 8 m
- Max. working pressure: – 6 bar
PERFORMANCE RANGE
- Flow rate up to 90 l/min (5.4 m3/h)
- Head up to 100 m
INSTALLATION AND USE
Important to realize Pedrollo PQM60 – 0.37KW. Peripheral pump with radial suction.Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Its compact design and efficient hydraulic performance make it ideal for domestic applications.
CONSTRUCTION FEATURES
Pump body Cast iron with ISO 228/1 threaded ports For PQ 61: cast iron with anti-locking treatment with ISO 228/1 threaded ports
Motor bracket Aluminum with brass cover and front scraping anti-locking function (patented)
Impeller Brass, radial peripheral vane type
Motor shaft Stainless steel AISI 431 (EN 10088-3 – 1.4104 for PQ 60, PQ 61, PQ 65)
Mechanical seal (Shaft Ø 12 mm) (Materials Ceramic / Graphite / NBR) (Seal AR-12)
Motor shaft Stainless steel AISI 431 (EN 10088-3 – 1.4104)
Electric motor PQm: single-phase 230 V – 50 Hz with winding integrated thermal motor protection. Pumps are equipped with high-efficiency motors (IEC 60034-30-1) class IE2 for single-phase models class IE3 for three-phase models
- Continuous running duty S1
- Insulation: class F
- Protection rating: IP X4
