Description

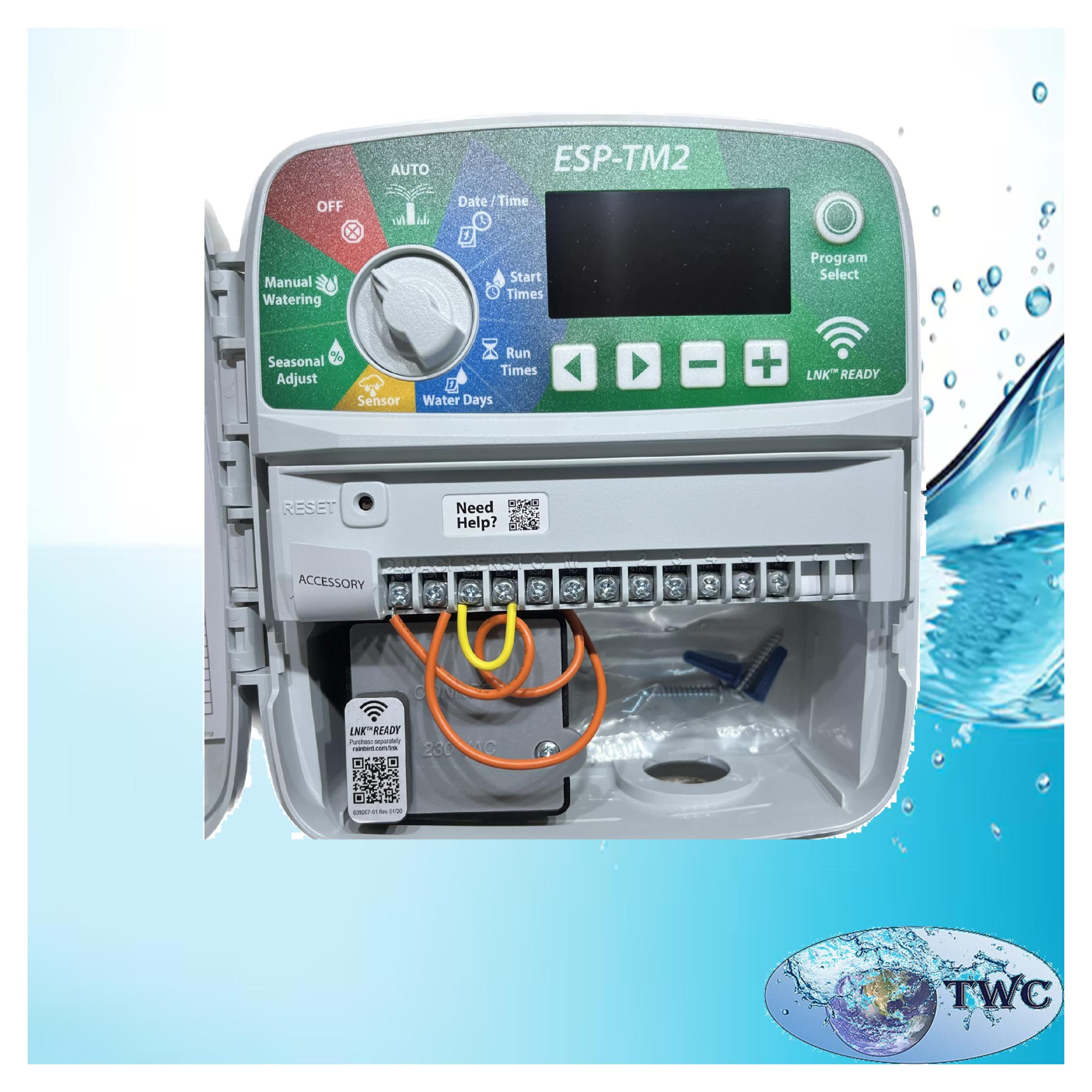

Rain Bird ESP-TM2 outdoor 6 controller
Simple to Program
- Quickly program a schedule in just 3 steps.
- 3 available programs (A, B, C) with up to 4 start times for each program.
- Simple one-touch manual watering.
- NEW large back-lit LCD display for improved visibility in low-light and direct sunlight conditions.
WiFi Connectivity
- By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere.
- Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.
Advanced Features
- Contractor Default allows you to easily save and restore your custom schedule.
- Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed.
- Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor.
- Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules).
- Seasonal Adjust by program allows you to easily reduce or increase watering by program.
Specs
Controller Hardware
- Plastic wall-mount cabinet with door.
- Mounting screws with anchor shields.
- Factory installed pigtail.
Controller Features
- Familiar, easy to navigate user interface.
- Rain sensor input with bypass capability.
- Master valve/pump start circuit.
- Nonvolatile (100 year) storage memory.
- Electronic diagnostic circuit breaker.
- Remote accessory port for Rain Bird approved accessory devices.
Scheduling Features
- Program based scheduling with 3 individual programs and 4 independent start times per program for 12 total start times.
- Watering schedule options: Custom Days of the week, ODD or EVEN calendar days, or Cyclic (every 1 – 30 days).
Advanced Features
- The Rain Bird ESP-TM2 outdoor 6 controller is compatible with Rain Bird LNK WiFi Module (sold separately) to enable remote programming, operation and alerts from the Rain Bird mobile app.
- Manual Watering option for all stations, a single station or an individual program.
- Seasonal Adjust applied to all programs or an individual program.
- Delay Watering up to 14 days (applies only to stations set to obey Rain sensor).
- Permanent Days Off (for Odd, Even or Cyclic programming).
- Sensor bypass for all programs or for individual stations.
- Adjustable delay between stations.
- Contractor default pProgram save and restore saved program(s).
- Master valve on/off by station.
- Automatic short detect with station specific alarm messages.
Operating Specifications
- Station timing: 1 minute to 6 hours.
- Seasonal Adjust: 5% to 200%.
Electrical Specifications
- Input required: 120VAC (10%) @ 60Hz.
- 230VAC (?0%) @ 50/60Hz.
- Output: 1A at 24VAC on 120v models.
- .65A at 24VAC on 230v models.
- Master Valve/Pump Start Relay.
- External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.
Rain Bird ESP-TM2 outdoor 6 controller
