Description

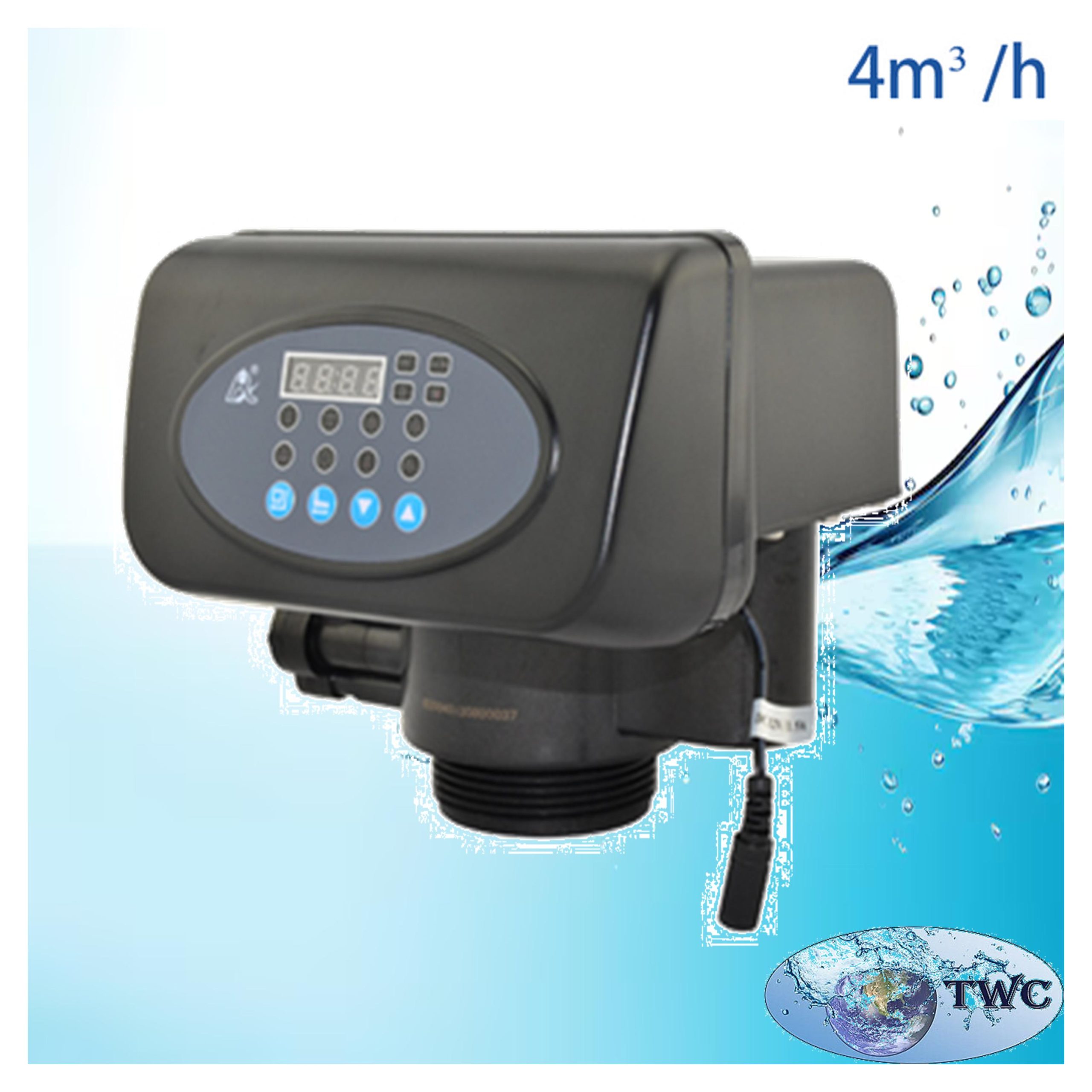

The RUNXIN F63P1 Automatic Softener Valve is a reliable time clock-controlled automatic control valve designed for residential and light commercial water softening systems. With a maximum flow rate of 4 m³/h, the F63P1 automatically controls the service, backwash, brine draw, slow rinse, brine refill, and fast rinse cycles to ensure efficient resin regeneration and consistent soft water quality. Featuring durable ceramic sealing discs, a user-friendly digital controller, and fully programmable settings, the F63P1 offers dependable performance with minimal maintenance.
Features:
- Automatic time clock regeneration.
- Maximum flow rate of 4 m³/h.
- Durable ceramic sealing discs provide reliable, leak-free operation.
- Automatic Service, Backwash, Brine Draw, Slow Rinse, Brine Refill, and Fast Rinse cycles.
- Manual regeneration function for immediate regeneration.
- LED dynamic display indicates service and regeneration status.
- Long power outage memory retains programmed settings.
- Automatic valve positioning after power restoration.
- Automatic button lock prevents accidental setting changes.
- Adjustable interval backwash settings for improved resin cleaning.
- Maximum interval regeneration function.
- Fully programmable operating parameters.
- Corrosion-resistant construction for long service life.
Specifications:
- Model: F63P1
- Regeneration Type: Time Clock
- Mount Type: Top Mount
- Inlet/Outlet: 1″ Male
- Drain Connection: 1/2″ Male
- Brine Line Connection: 3/8″ Male
- Mounting Base: 2.5″-8 NPSM
- Riser Pipe: 1.05″ OD
- Maximum Flow Rate: 4 m³/h
- Suitable Tank Size: 6″–18″
- Operating Pressure: 0.15–0.6 MPa
- Operating Temperature: 5–50°C
- Maximum Water Turbidity: <5 FTU (Down-flow regeneration)
- Power Supply: Input AC 100–240V, 50/60Hz; Output DC 12V / 1.5A
Applications:
- Residential water softening systems.
- Light commercial water softeners.
- Ion exchange systems.
- Reverse osmosis (RO) pre-treatment.
- Borehole water treatment.
- Municipal water softening.
- Hotels, guest houses, and restaurants.
- General water treatment systems.
Installation:
Install the RUNXIN F63P1 onto a compatible pressure vessel using the 2.5″-8 NPSM mounting base and 1.05″ OD riser pipe. Connect the inlet, outlet, drain, and brine lines according to the valve flow diagram. Connect the supplied DC 12V power adapter and program the regeneration schedule based on water hardness and usage requirements. Perform an initial regeneration before placing the system into normal operation.
Why Choose the RUNXIN F63P1 Automatic Softener Valve?
- Automatic time clock regeneration ensures consistent water softening.
- Reliable ceramic sealing technology provides long-lasting, leak-free performance.
- Fully automatic operation reduces maintenance and manual intervention.
- Adjustable regeneration parameters allow optimization for different water conditions.
- Automatic recovery after power interruptions maintains system reliability.
- Easy-to-use digital controller with manual override.
- Suitable for residential, light commercial, ion exchange, and RO pre-treatment applications.
