Description

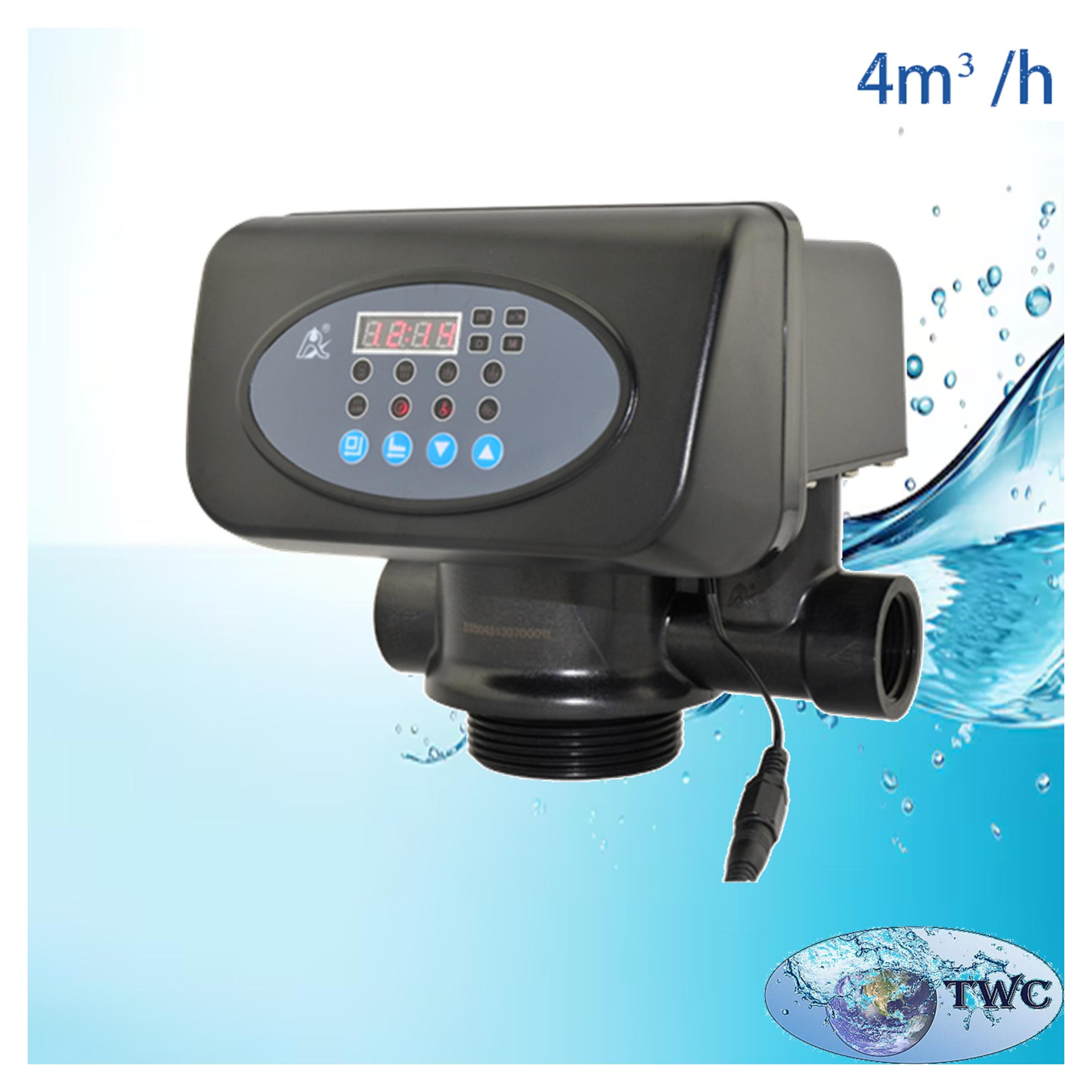

The RUNXIN F67P1 Automatic Filter Valve is a reliable time clock-controlled automatic control valve designed for residential and light commercial water treatment systems. With a maximum flow rate of 4 m³/h, it automates the filtration or softening process by controlling the service, backwash, brine draw, slow rinse, brine refill, and fast rinse cycles. Its durable ceramic sealing discs, user-friendly digital controller, and programmable regeneration settings ensure dependable performance while reducing maintenance requirements. The F67P1 is suitable for use with a wide range of filtration and softening media, making it an ideal solution for efficient water treatment.
Features:
- Automatic time clock regeneration.
- Flow rate up to 4 m³/h.
- Durable ceramic sealing discs provide reliable, leak-free operation.
- Automatic service, backwash, brine draw, slow rinse, brine refill, and fast rinse cycles.
- Manual regeneration function at the press of a button.
- Long power outage memory retains programmed settings.
- Automatic valve positioning after power restoration.
- Button lock function prevents accidental setting changes.
- Fully programmable regeneration parameters.
- Suitable for both water filtration and water softening applications.
- Corrosion-resistant construction for long service life.
Specifications:
- Model: F67P1 (54504)
- Regeneration Type: Time Clock
- Mount Type: Top Mount
- Inlet/Outlet: 1″ Female
- Drain Connection: 1″ Female
- Mounting Base: 2.5″–8 NPSM
- Riser Pipe: 1.05″ OD
- Maximum Flow Rate: 4 m³/h
- Suitable Tank Size: 6″–12″
- Operating Pressure: 0.15–0.6 MPa
- Operating Temperature: 5–50°C
- Maximum Water Turbidity: <20 FTU
- Power Supply: Input AC 100–240V, 50/60Hz; Output DC 12V, 1.5A
Applications:
- Domestic water softeners.
- Residential filtration systems.
- Activated carbon filters.
- Quartz sand filters.
- Multimedia filtration systems.
- Iron and manganese removal systems.
- Pre-treatment for reverse osmosis systems.
- Light commercial water treatment installations.
Installation:
Install the RUNXIN F67P1 on a compatible 6″ to 12″ FRP pressure vessel with a 2.5″-8 NPSM tank opening and 1.05″ OD riser pipe. Connect the inlet, outlet, and drain lines according to the flow direction indicated on the valve. Connect the supplied DC power adapter, program the desired regeneration schedule, and perform an initial backwash before placing the system into service. Ensure the correct filter or softening media is installed for the intended application.
Why Choose the RUNXIN F67P1 Automatic Filter Valve?
- Fully automatic operation reduces manual maintenance.
- Reliable ceramic sealing technology provides excellent durability.
- Easy-to-program digital controller with manual override.
- Time clock regeneration ensures consistent system performance.
- Compatible with a wide variety of filtration and softening media.
- Ideal for residential and light commercial water treatment systems.
- Built for long-lasting, dependable operation with low maintenance requirements.
