Description

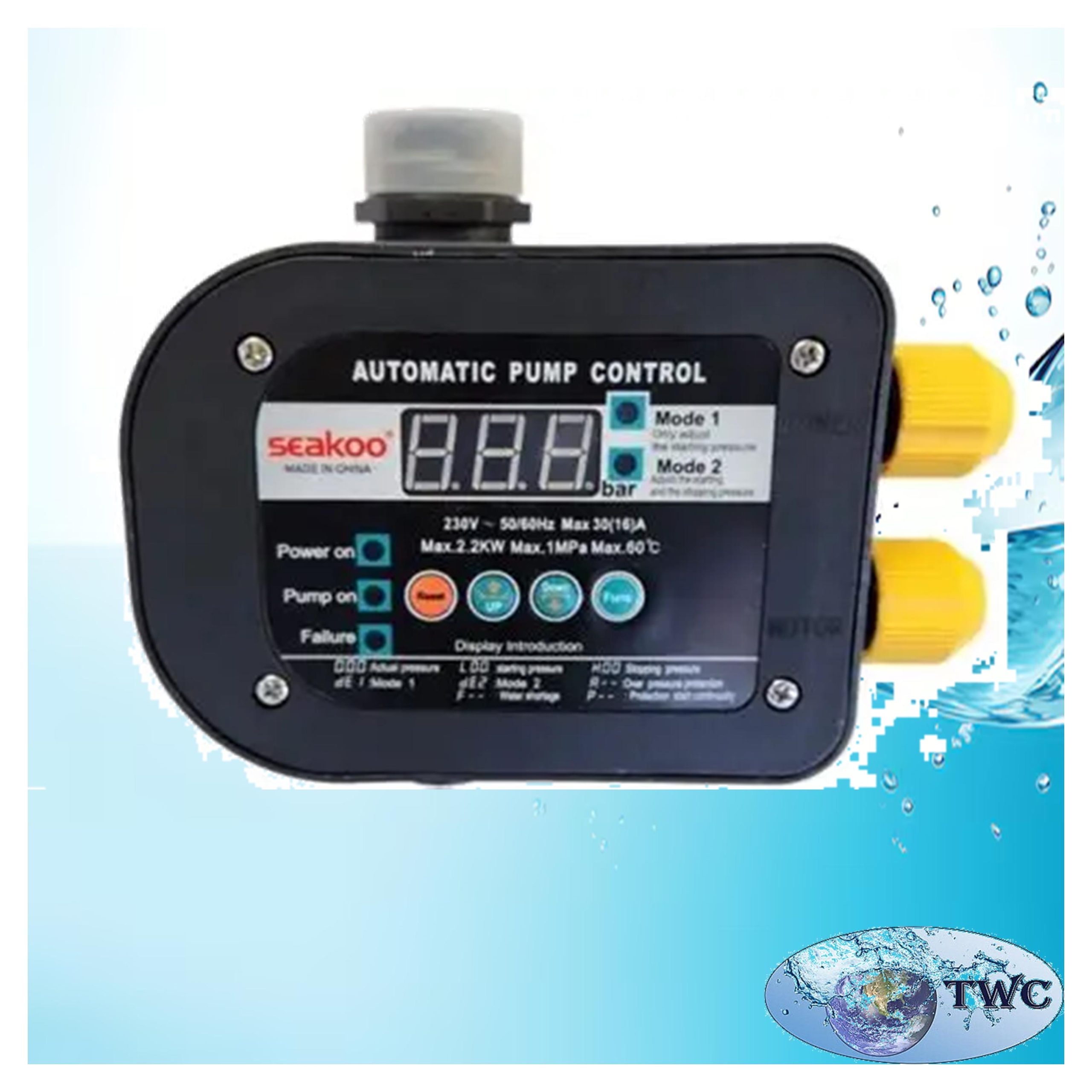

The Seakoo EPC-12 is an intelligent automatic pump controller designed to manage the operation of compatible single-phase water pumps. It automatically starts and stops the pump according to the configured pressure settings and water demand.

Unlike basic automatic pump controllers, the EPC-12 allows the user to adjust both the starting and stopping pressure. Its digital display provides real-time pressure information, while its built-in protection functions help protect the pump and improve the reliability of the water supply system.

Features:

• Automatic pump start and stop.
• Adjustable starting and stopping pressure.
• Digital display for real-time pressure monitoring.
• Dry-run protection when the water supply is interrupted.
• Low-voltage protection.
• Pressure protection.
• Frequent start/stop protection.
• Automatic restart after water supply is restored, subject to operating conditions.
• Manual reset function.
• IP65-rated enclosure for protection against dust and water jets.
• Compact design for domestic water pressure installations.

Specifications:

• Brand: Seakoo.
• Model: EPC-12.
• Product type: Automatic intelligent pump pressure controller.
• Power supply: 220–240V AC, single phase.
• Supply frequency: 50/60Hz.
• Rated current: 16A,
• Maximum pump power: 2.2kW at 220V.
• Starting pressure setting: 0.5–6.7 bar.
• Stopping pressure setting: 0.8–7.0 bar.
• Maximum difference between start and stop pressure: 6.5 bar.
• Minimum differential pressure: 0.3 bar.
• Recommended minimum differential pressure: 1 bar.
• Maximum pressure: 10 bar.
• Maximum working pressure: 8 bar.
• Maximum water temperature: 60°C.
• Inlet connection: 25mm Male thread.
• Outlet connection: 25mm Male thread.
• Connection size: 1″ nominal, subject to thread verification.
• Protection rating: IP65.
• Digital display: Yes, real-time pressure indication.
• Adjustable start and stop pressure: Yes.
• Dry-run protection: Yes.
• Low-voltage protection: Yes.
• Pressure protection: Yes.
• Frequent start/stop protection: Yes.
• Automatic restart: Yes, subject to operating conditions.
• Manual reset: Yes.

Applications:

• Domestic water pressure boosting.
• Household water supply systems.
• Water supply from storage tanks.
• Compatible borehole and transfer pump installations.
• Water distribution systems.
• Garden irrigation and other suitable water supply applications.
