Description

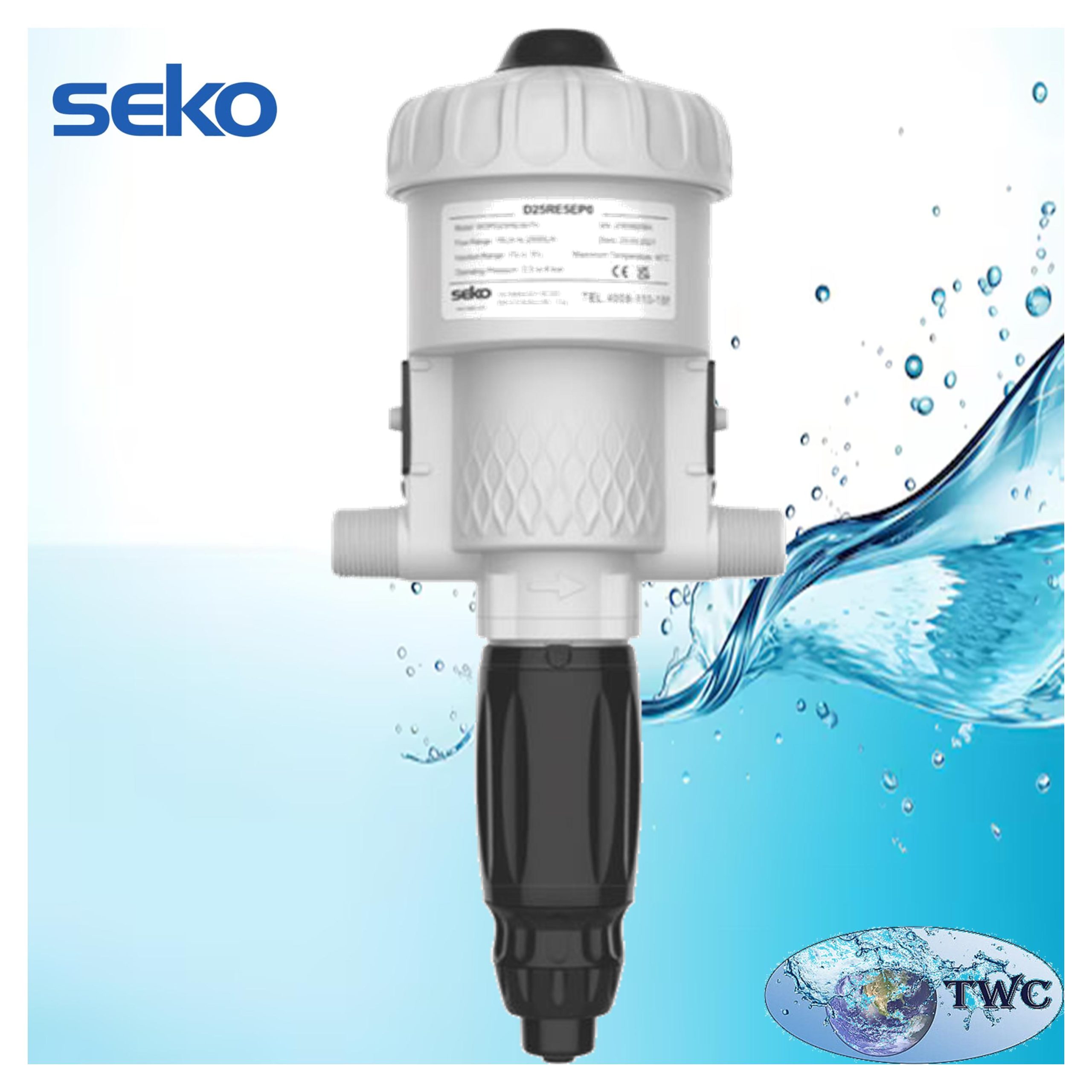

The Seko HYDRAKOS Water-Driven Pump 2500 l/ph 3-10% PVDF/EPDM is a non-electric proportional chemical dosing pump designed to provide accurate, repeatable chemical injection using only water pressure and flow. Manufactured with a PVDF (Polyvinylidene Fluoride) pump body and EPDM seals, this model offers exceptional chemical compatibility and is ideal for dosing alkaline chemicals, sodium-based solutions, oxidising agents, and a wide range of water treatment chemicals.

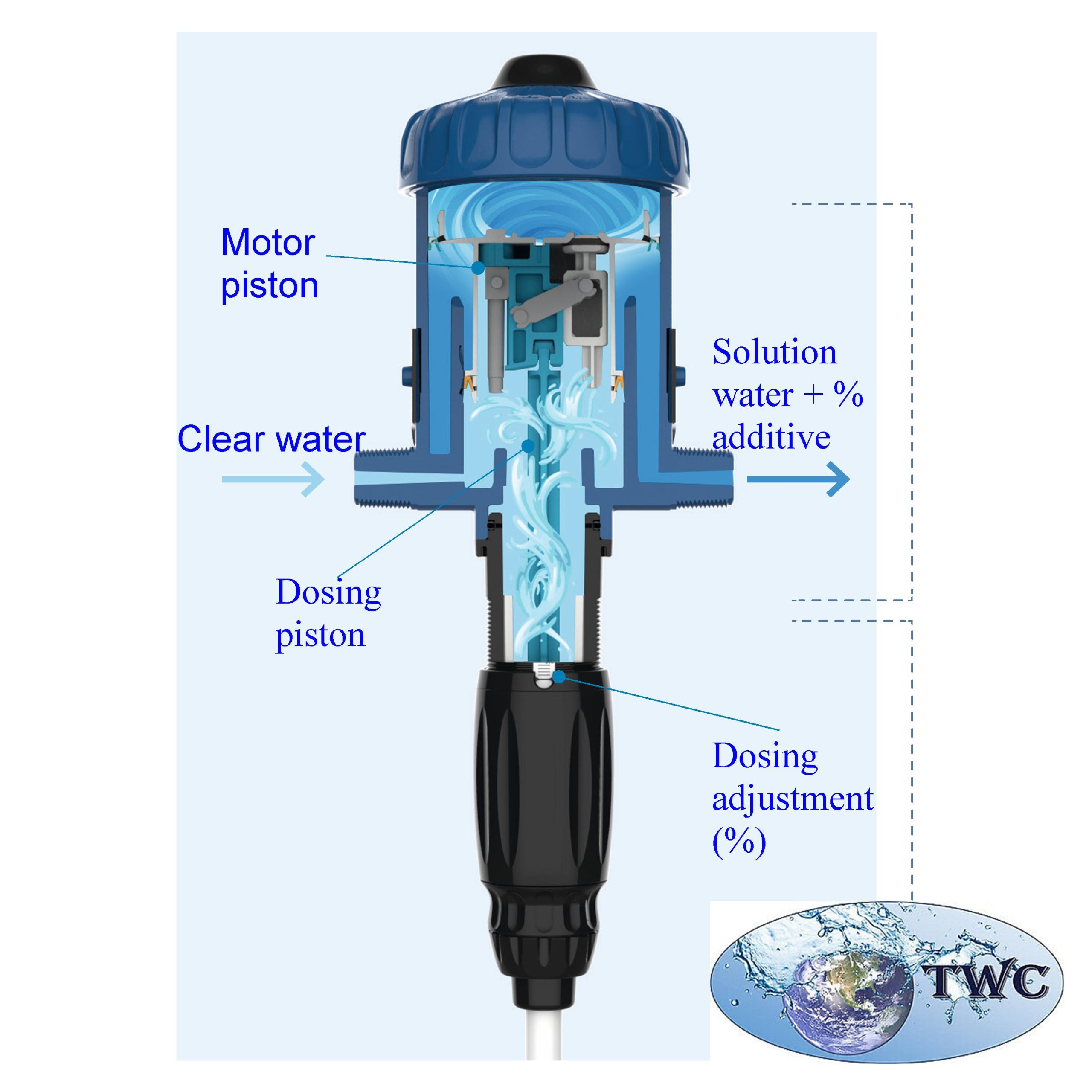

Powered entirely by a hydraulic motor, the pump automatically injects chemicals in direct proportion to the water flow, providing precise dosing even when water pressure or flow rate fluctuates. Its self-priming design, adjustable dosing ratio and corrosion-resistant construction provide reliable performance while helping to reduce maintenance and operating costs.

Features:

• Water-driven proportional dosing pump.
• No electrical power required.
• Adjustable dosing range from 3–10%.
• Maximum water flow rate of 2,500 l/ph.
• PVDF pump body with exceptional chemical compatibility.
• EPDM seals for excellent compatibility with alkaline chemicals.
• Superior thermal stability and stress crack resistance.
• High corrosion resistance.
• Self-priming operation.
• Accurate and repeatable proportional dosing.
• Injection automatically stops when water flow stops.
• Suitable for fresh, salt, and deionised water.
• Compact, lightweight, and easy to install.
• Low operating and maintenance costs.

Specifications:

• Product Code: WDPD25RE100EV00.
• Series: Seko HYDRAKOS D25RE100.
• Pump Type: Water-driven proportional dosing pump.
• Maximum Water Flow Rate: 2,500 l/ph.
• Body Material: PVDF (Polyvinylidene Fluoride).
• Seal Material: EPDM.
• Adjustable Dosing Range: 3–10%.
• Water Flow Range: 10–2,500 l/ph.
• Maximum Chemical Viscosity: 400 cPs at 20°C.
• Power Supply: Water pressure and flow only (Non-electric).

Applications:

• Drinking water treatment.
• Water purification systems.
• Irrigation and fertigation.
• Fertiliser injection.
• Agricultural chemical dosing.
• Livestock and poultry farming.
• Industrial process dosing.
• Cooling water treatment.
• Car wash systems.
• Legionella control.
• Chemical injection systems.
• Mining applications.

Installation:

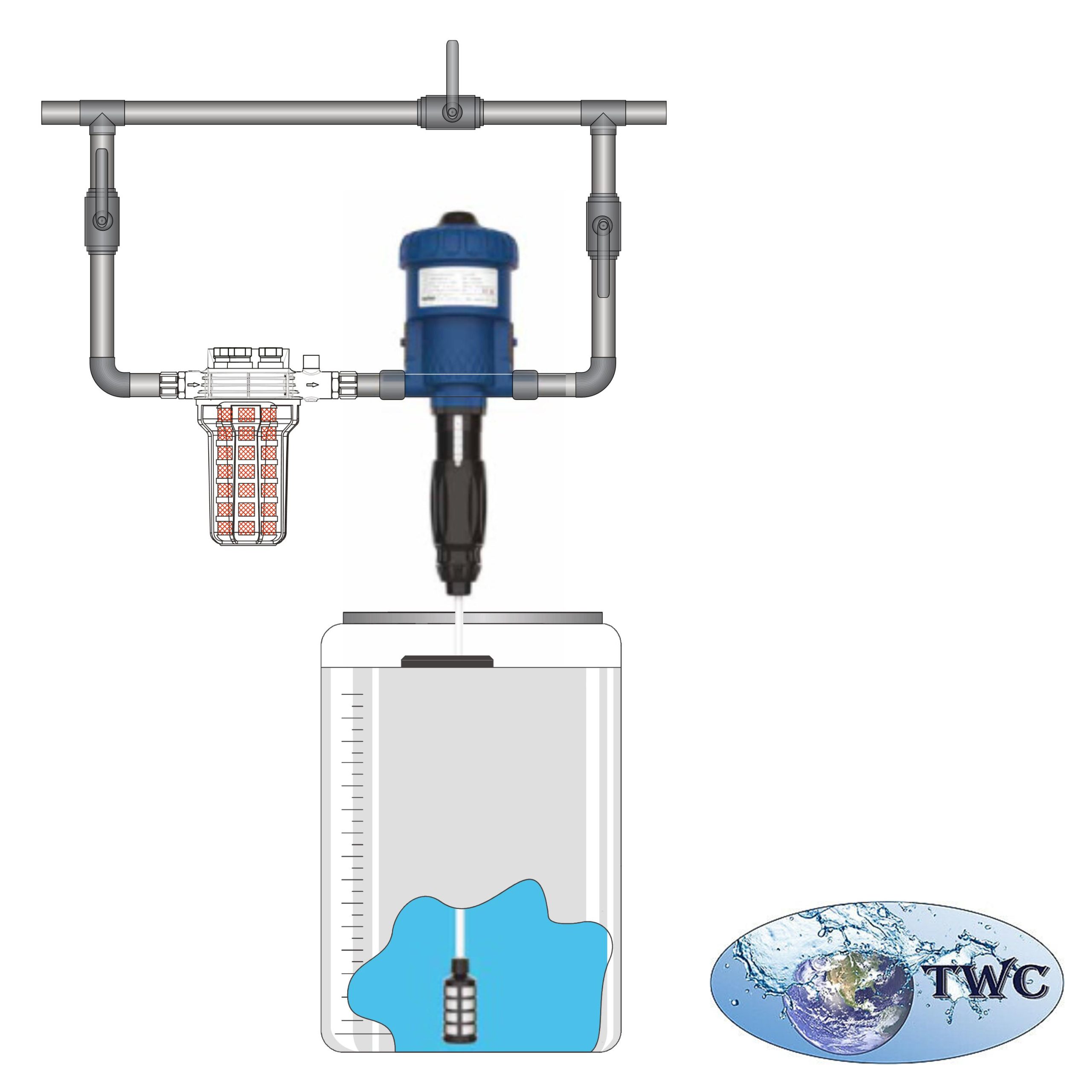

Install the pump directly into the water supply line following the indicated flow direction. Ensure the operating water pressure and flow remain within the specified limits. Use chemical-resistant tubing compatible with PVDF and EPDM materials. For optimum performance, install a filter upstream where debris may be present and periodically inspect the suction line and seals as part of routine maintenance.

Why choose the Seko HYDRAKOS water-driven pump 2500 l/ph 3-10% PVDF/EPDM?

• Provides accurate proportional chemical dosing without electricity.
• Adjustable dosing ratio from 3–10% for higher chemical injection requirements.
• PVDF body offers exceptional chemical compatibility.
• Superior thermal stability and resistance to stress cracking.
• High corrosion resistance for demanding industrial and water treatment applications.
• EPDM seals are ideal for alkaline chemicals and sodium-based solutions.
• Self-priming design simplifies commissioning.
• Automatically stops dosing when water flow stops, preventing chemical waste.
• Suitable for agricultural, industrial, commercial, and water treatment applications.
• Low maintenance design with long service life.
• Trusted SEKO engineering for reliable and consistent chemical dosing.

Seko HYDRAKOS – Water-Driven Pumps
