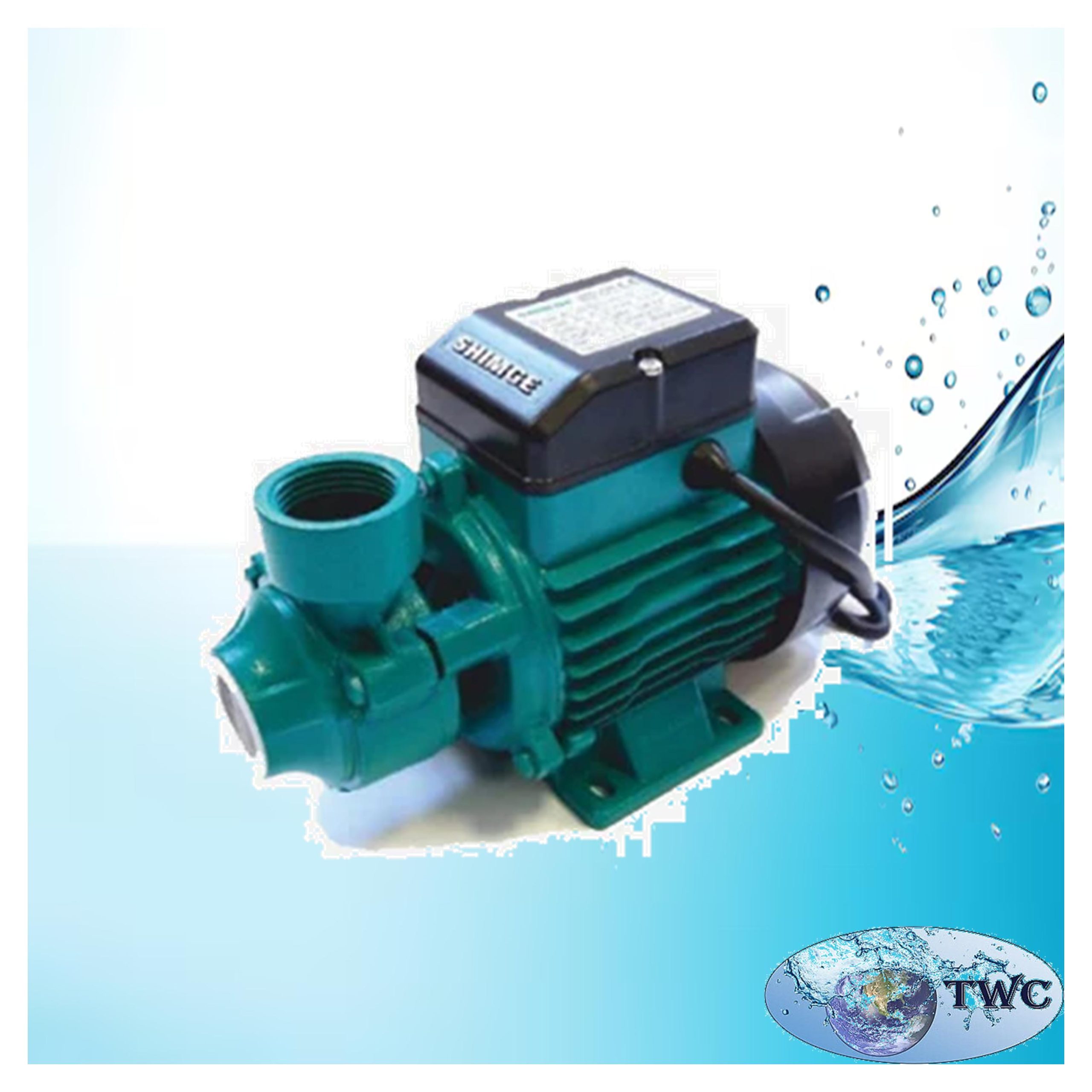

Shimge QB 70K 0.55KW Peripheral Pump

R2,068.85

Peripheral pumps, also referred to as regenerative pumps (also see Side channel pumps), are centrifugal pumps whose impeller (see Peripheral impeller) rotates in a largely concentric casing channel with an inlet and an outlet opening.

The fluid in a peripheral pump is pumped into a peripheral channel (around the edge of the casing). Unlike standard centrifugal pumps, the curves do not flatten as the fluid flow decreases. To summarise the fluid moves along the circumference for the inlet to the outlet of the casing with increasing pressure.

Performance Range

Max. Flow: 3.6m3/h
Max. Head: 60m

SKU: WC-MC-SHG-1080 Category: Tags: ,

Description

Application Limits

  • Suction head up to 8m
  • Liquid temperature up to +40℃
  • Ambient temperature up to +40℃
  • Max. Working pressure: 6bar
  • Voltage fluctuation should not exceed 10% of rated value.
  • pH: 6.5 to 8.5

Applications Fields

  • Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
  • Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.

Features

  • Small size, high pressure
  • Easy installation & maintain

Motor

  • Single-Phase 220V/50Hz
  • Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
  • Protection: IP44
  • Insulation: Class B

Performance Curve

QB Peripheral Pump

QB Peripheral Pump

Shimge QB 70K 0.55KW Peripheral Pump
