Model: AVZ 500

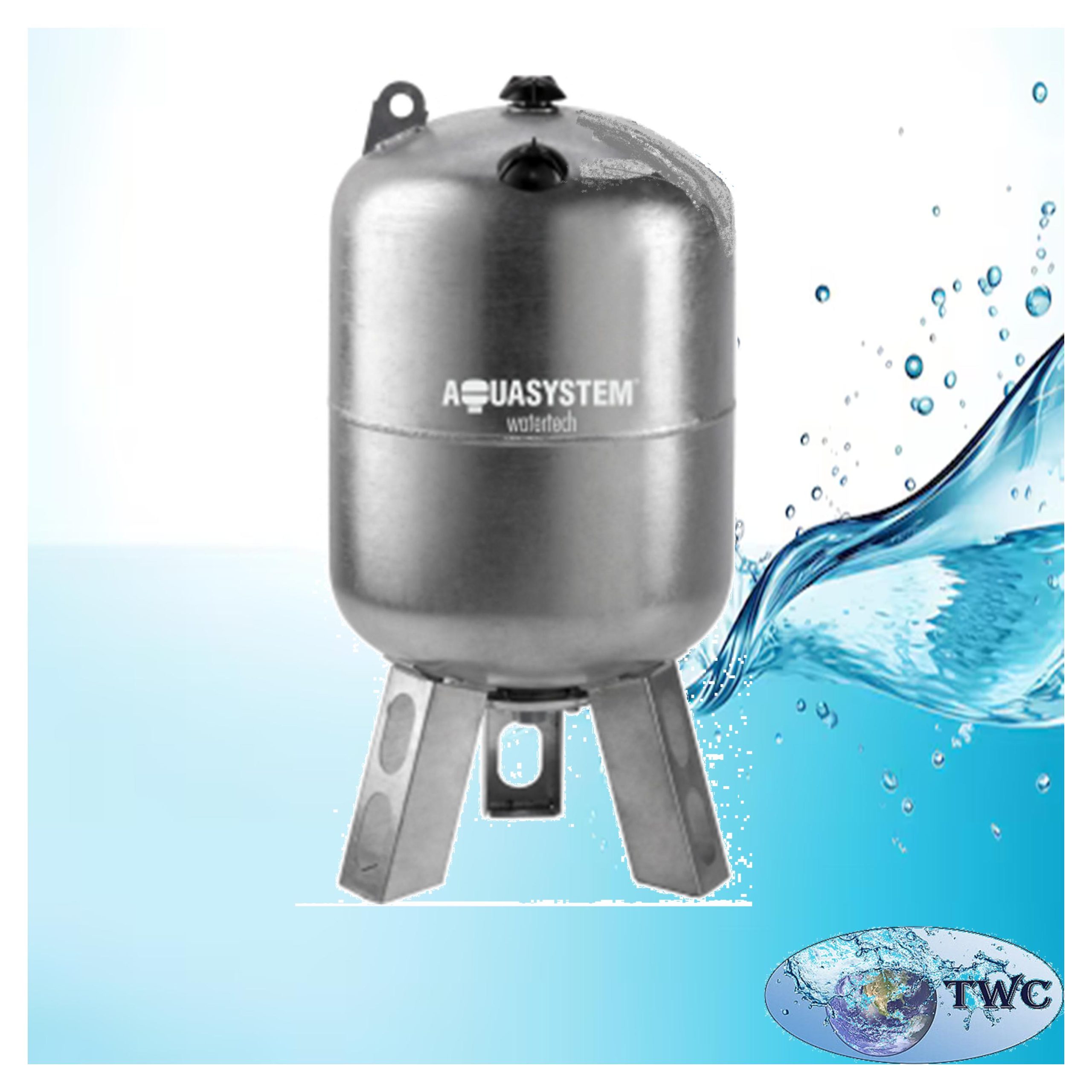

Aquasystem AVZ Tank is pressure vessel designed to provide a storage facility and pressure reservoir for water 10 bars MAXI.

Pressure tanks in combination with hydrophore or deep well pumps create hydrophore sets for supplying water to single-family houses and summer houses, farms and horticulture. The use of pressure tanks stabilizes water pressure and increases the active volume of the plumbing. As a result, the lifetime of the entire water supply system, including pumps, increases. The tank uses a flexible diaphragm that divides the space in the tank into two parts. Water is stored in the diaphragm, and pressurized air is forced between the diaphragm and the tank walls. The tanks should be filled with air to a pressure of 1.7 bar for tanks from 8 to 100L and 2.5 bar for tanks from 150 to 500L. To ensure correct operation of the pressure booster system, this pressure should be checked once every six months with a pressure gauge and topped up if necessary. This can be done with a regular car pump or compressor. Tanks with a capacity of 100, 150, 200, 300, 500L both horizontal and vertical are equipped with an additional technological opening. It can be used to mount a pressure gauge that will measure the pressure of the liquid in the tank. This opening is located on the opposite side of the inlet opening. Before filling the tank with water, plug the opening with a suitable plug, or screw in the pressure gauge.
