Description

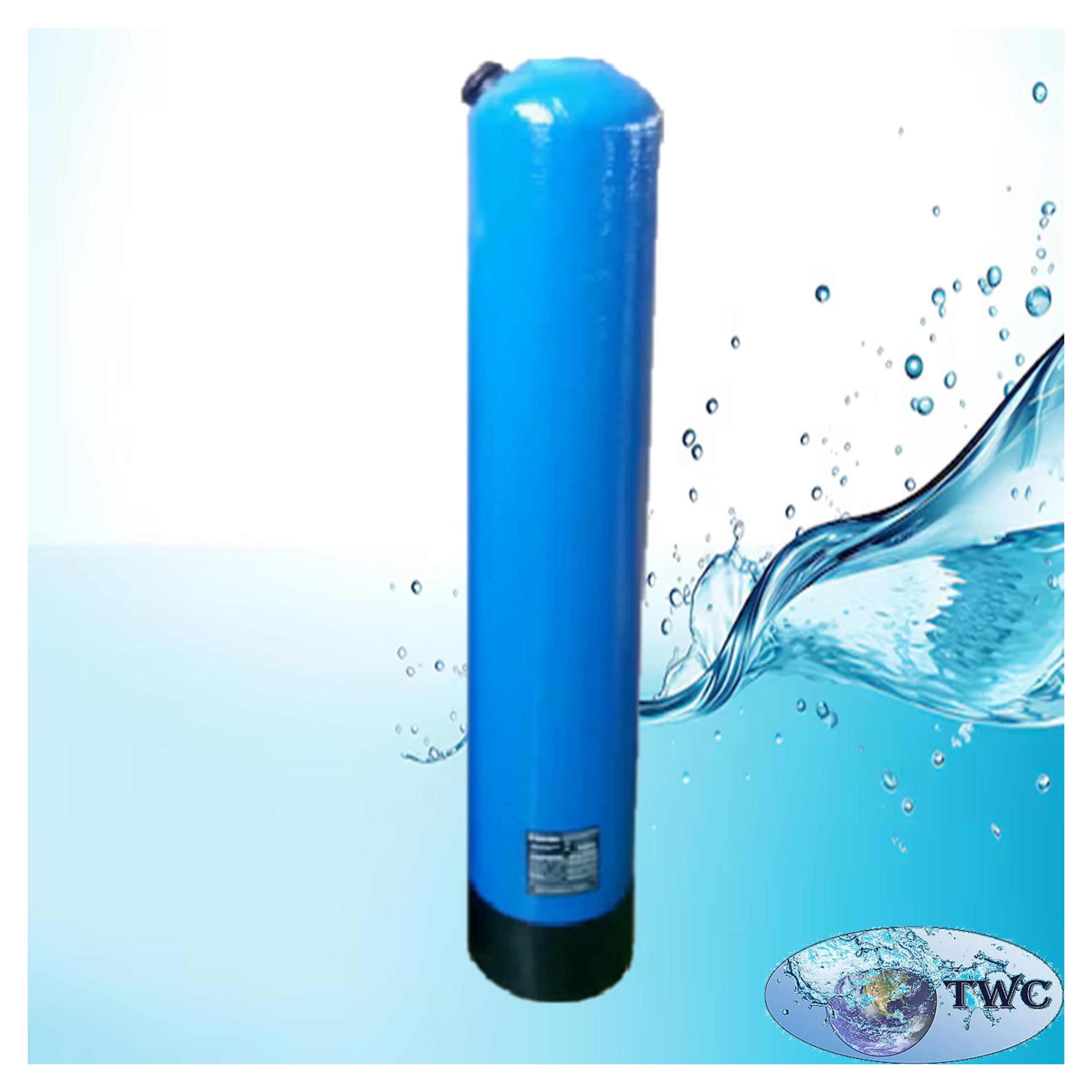

The WC FRP Pressure Vessel 14″ x 65″ (148L) with 2.5″ Side Dome Hole is a premium-quality pressure vessel designed for residential, commercial, and industrial water treatment applications. Manufactured from durable fibreglass reinforced plastic (FRP) with a food-grade HDPE (polyethylene) inner liner, it provides outstanding corrosion resistance, high-pressure performance, and long service life.

The integrated 2.5″ side dome opening allows easy access to the filtration media, enabling inspection, replacement, or maintenance without removing the control valve or internal distributor assembly. This reduces servicing time and simplifies routine maintenance.

Suitable for larger-capacity water treatment systems, the vessel is ideal for water softeners, activated carbon filters, multimedia filters, iron and manganese removal systems, and other pressure filtration applications.

Features:

• Heavy-duty fibreglass reinforced plastic (FRP) construction.
• Food-grade HDPE (polyethylene) inner liner.
• 2.5″ side dome opening for easy media access.
• High-pressure, corrosion-resistant design.
• Lightweight yet exceptionally durable.
• Suitable for a wide range of filtration media.
• Excellent chemical resistance.
• Long service life.
• Manufactured using automated production technology.
• NSF and ACS certified materials.

Specifications:

• Product: WC FRP Pressure Vessel with Side Dome Hole.
• Vessel Size: 14″ x 65″.
• Vessel Capacity: 148 Litres.
• Side Dome Opening: 2.5″.
• Inner Liner: Food-grade HDPE (Polyethylene).
• Outer Shell: Fibreglass Reinforced Plastic (FRP).
• Maximum Operating Pressure: 150 psi (10.3 bar).
• Maximum Operating Temperature: 120°F (49°C) Threaded / 150°F (66°C) Flanged.
• Recommended Flow Rate: 2,500 – 3,000 L/h (up to 50 L/min).

Applications:

• Water softeners.
• Activated carbon filtration.
• Multimedia filtration.
• Iron removal systems.
• Manganese removal systems.
• Katalox Light filtration.
• DMI-65 filtration.
• Sediment filtration.
• Borehole water treatment.
• Commercial water treatment.
• Industrial process water.
• Reverse Osmosis pre-treatment.

Why Choose the WC FRP Pressure Vessel 14″ x 65″ (148L)?

• Large-capacity vessel designed for higher flow rate water treatment systems.
• Convenient 2.5″ side dome opening simplifies media replacement and maintenance.
• Manufactured using advanced automated production for consistent quality.
• Food-grade HDPE liner ensures safe use in potable water applications.
• High-strength FRP construction provides exceptional durability and corrosion resistance.
• NSF and ACS certified materials for dependable performance.
• Suitable for residential, commercial, and industrial water treatment installations.
• Designed for long-term reliability with minimal maintenance requirements.
