Description

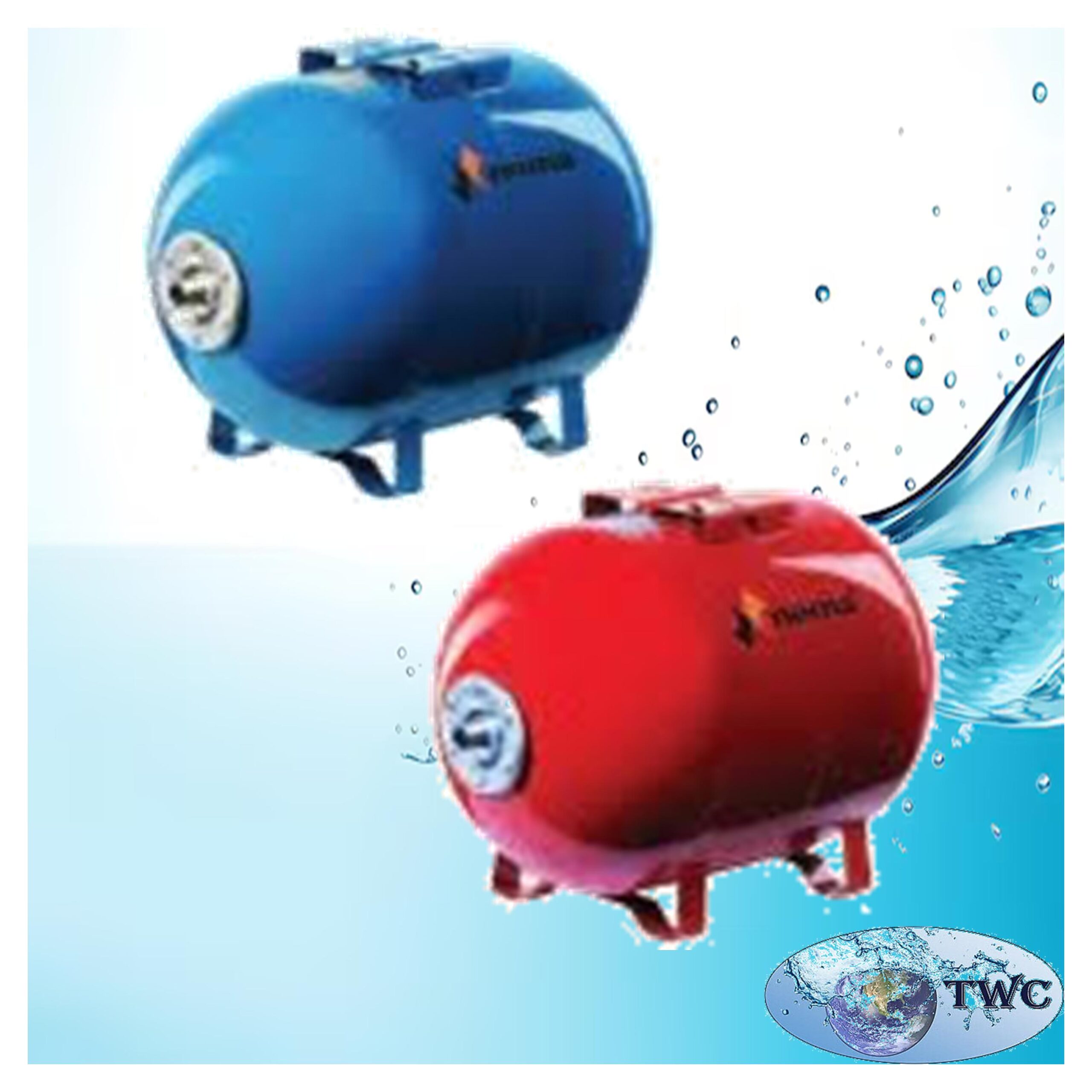

The Aquasystem horizontal pressure tanks 100l – VAO 100 pressure tank with replaceable membrane is an element used in hydraulic applications for sanitary water circuits, such as pressure groups in combination with pumps or devices such as anti-water hammer.

The main purpose of the pressure tank is to give water at a steady pressure, in order to limit the pump hourly starts, safeguarding its working and electricity consumption. This is possible thanks to precharged air pressure stored between the membrane and the internal metal surface of the tank.

The shape of pressure tank can be vertical or horizontal.

Pressure tank can have a max working pressure that changes according to the needs of the system; it can be also available in galvanized or AISI 304 stainless steel for high quality performance.

Specifications:

External finish color -Blue Epoxy Coated

Rubber membrane – EPDM

Maximum working pressure – 10 bar

Standard precharge pressure – 1.5 bar

Connection – 1″
