Description

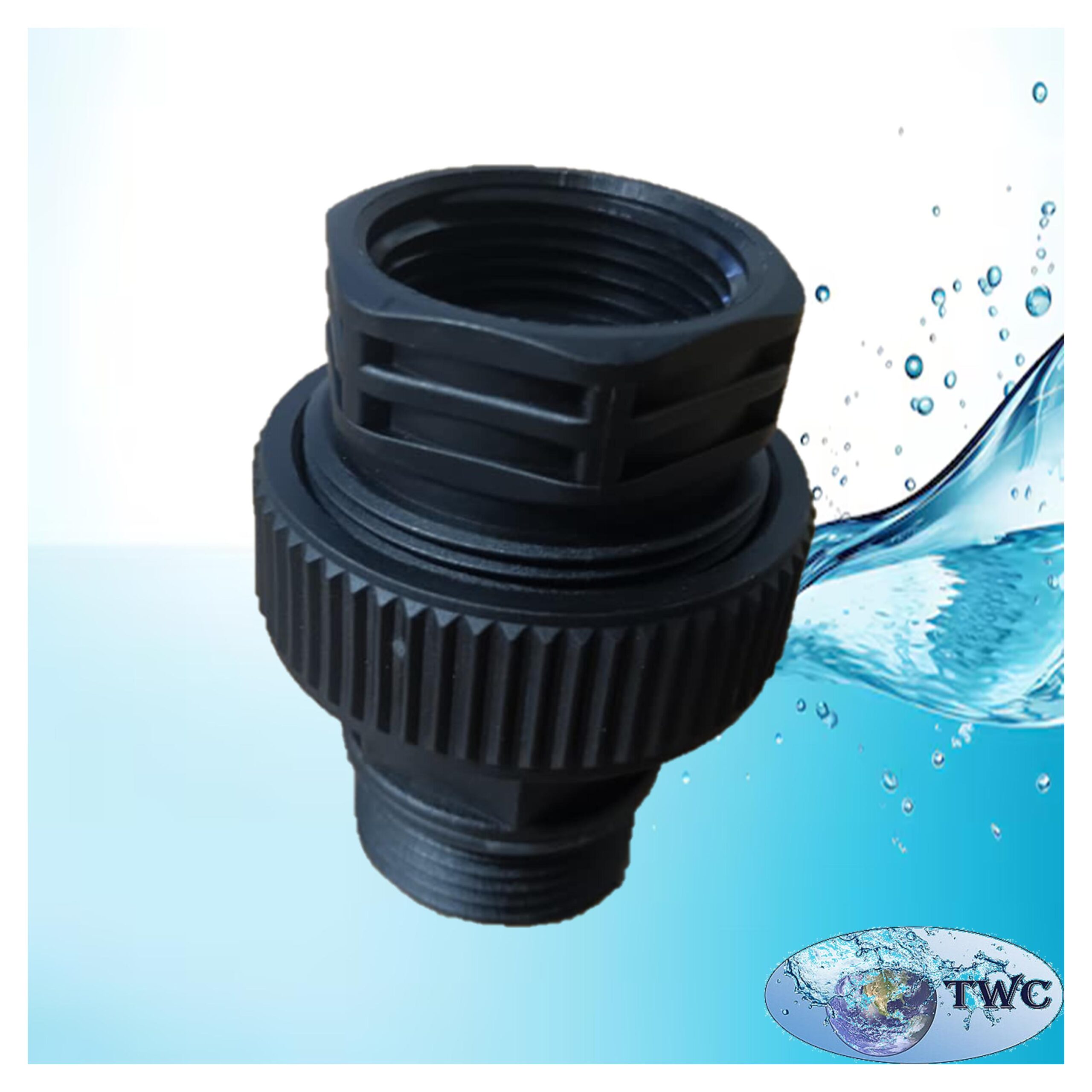

Upgrade your water system with our new barrel union adapter male to female 1″ (25mm) Pump to Controller Engineered from industrial-grade, 30% glass-fiber reinforced nylon (PA6-GF30), this heavy-duty adapter provides a rock-solid, vibration-proof connection between your booster pump and automatic pressure controller. Featuring a dual-seal O-ring design, it eliminates the need for messy thread tape and enables effortless, tool-free maintenance.

Product Overview

• Size Compatibility: 1-inch (25mm) standard British Standard Pipe (BSP) thread.
• Material: High-grade UV-stabilised nylon.
• Pressure Rating: Can handle up to PN16 (16 bar), which far exceeds standard residential booster pump pressures.
• Core Mechanism: A three-piece Barrel union adapter male to female 1″ (25mm) comprising, a threaded male/female adaptor body, and a spin-collar nut with an integrated dual rubber O-ring to guarantee a watertight seal without heavy tool strain.

Key Benefits

• Industrial PA6-GF30 Strength: Manufactured from engineering-grade Polyamide 6 reinforced with 30% glass fiber. It will not warp under intense South African summer heat, crack under high pressure, or cross-thread like standard PVC.
• Tape-Free Dual O-Ring Seal: Equipped with an integrated rubber O-ring at the base of the male thread and a secondary internal union seal. This ensures a 100% watertight face-seal without the need for PTFE Teflon tape.
• Tool-Free Quick Disconnect: The robust three-piece barrel union design allows you to hand-loosen the swivel nut to detach your controller or pump for servicing instantly—no cutting or twisting of pipelines required.
• High Pressure & UV Rated: Engineered to comfortably handle high-pressure residential and agricultural booster systems while offering maximum UV stabilization against outdoor weathering.

Specifications

• Material: PA6-GF30 (30% Glass-Fiber Reinforced Nylon)
• Inlet/Outlet Size: 1″ (25mm) Standard BSP Thread
• Connection Type: Male Threaded Parallel (with O-ring) to Female Swivel Union
• Colour: Black
• Application: Automatic pressure controllers, booster pumps, borehole setups, and irrigation manifolds.
