Description

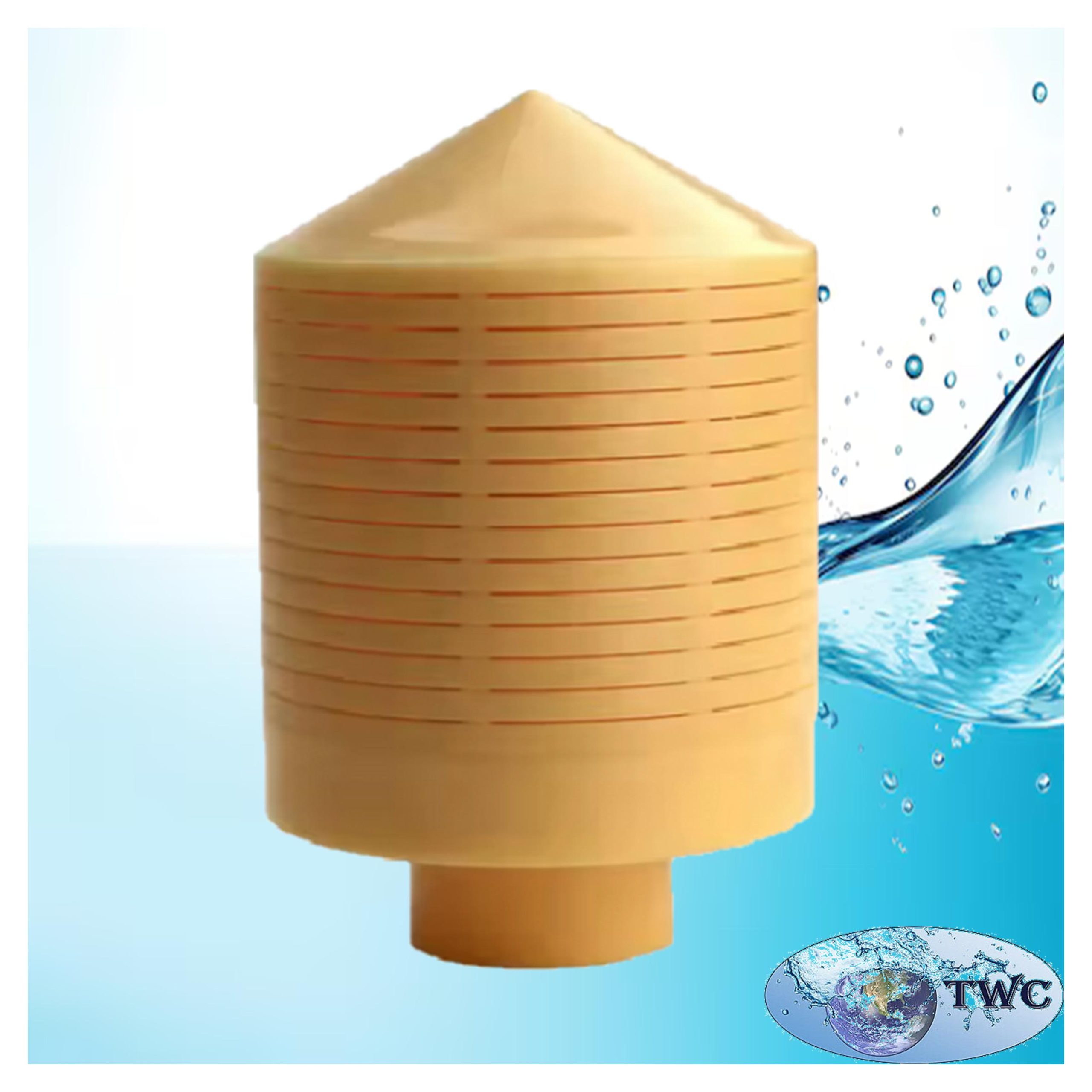

The bottom distributor for a 13″–16″ FRP Tank with a 2.5″ mount is an internal water-distribution and collection component designed for compatible FRP water-treatment vessels. Installed at the bottom of the vessel, the distributor works together with the central riser or lifting tube to distribute water through the treatment media and collect treated water during the filtration process.
The distributor is suitable for a range of media-based water-treatment applications, including water softening, activated carbon filtration, quartz and sand filtration, sediment filtration and other compatible treatment systems. Its distributor slots allow water to pass through while helping retain the treatment media within the vessel.
By promoting more even water distribution through the media bed, the distributor can help improve contact between the water and treatment media and reduce the risk of channeling. It is suitable for compatible systems that require a 2.5″ mounting connection.
Features:
- Designed for compatible 13″–16″ FRP water-treatment vessels.
- 2.5″ mounting connection.
- Bottom distributor design.
- Installed at the bottom of the FRP vessel.
- Works with a compatible central riser or lifting tube.
- Helps distribute water more evenly through the treatment media.
- Helps collect treated water and direct it towards the central riser.
- Helps retain filter media within the vessel.
- Helps reduce channeling through the media bed.
- Durable, impact-resistant plastic construction.
- Compact design.
- Suitable for media-based water-treatment systems.
- Suitable for filtration and water-softening applications.
- Suitable for backwashing and compatible up-flow filtration systems.
Specifications:
- Product type: Bottom distributor.
- Compatible vessel size: 13″–16″ FRP vessels.
- Mounting connection: 2.5″.
- Installation position: Bottom of FRP vessel.
- Connection: Compatible with specified riser/lifting tube assembly.
- Construction: Durable, impact-resistant plastic.
- Weight: 0.3 kg.
- Listed dimensions: 8 × 8 × 13 cm.
- Application: FRP water-treatment vessels.
Applications:
1. Water softening:
Used in compatible water-softening vessels containing ion-exchange resin. The distributor helps distribute water through the resin bed and collect treated water.
2. Activated carbon filtration:
Suitable for compatible activated carbon filter vessels where water needs to pass evenly through the carbon media.
3. Quartz and sand filtration:
Can be used in compatible media filtration vessels containing quartz, sand or similar granular filtration media.
4. Sediment filtration:
Suitable for compatible media-based sediment filtration systems where water distribution and collection are required.
5. Pre-filtration systems:
Can form part of compatible FRP pre-filtration systems used to remove suspended solids and other particulate matter.
6. Backwashing filter systems:
Suitable for compatible systems where the treatment media is periodically backwashed to remove accumulated contaminants.
7. Up-flow filtration:
Can be used in compatible up-flow filtration systems where the distributor is designed for the required flow direction.
How the bottom distributor works:
The bottom distributor is installed at the base of the FRP vessel and works together with the central riser or lifting tube.
During normal filtration:
Water enters the vessel.
↓
Water flows through the treatment media.
↓
Treated water reaches the bottom distributor.
↓
The distributor collects the treated water.
↓
Water enters the central riser/lifting tube.
↓
Water returns through the filter head.
The calibrated slots allow water to pass through the distributor while helping retain the treatment media inside the vessel. This helps promote more even water distribution through the media bed and can reduce channeling.
During backwashing, the flow direction is reversed. Water enters through the riser and distributor before flowing upward through the media bed. The upward flow loosens the media and carries accumulated contaminants out through the filter head.
