Description

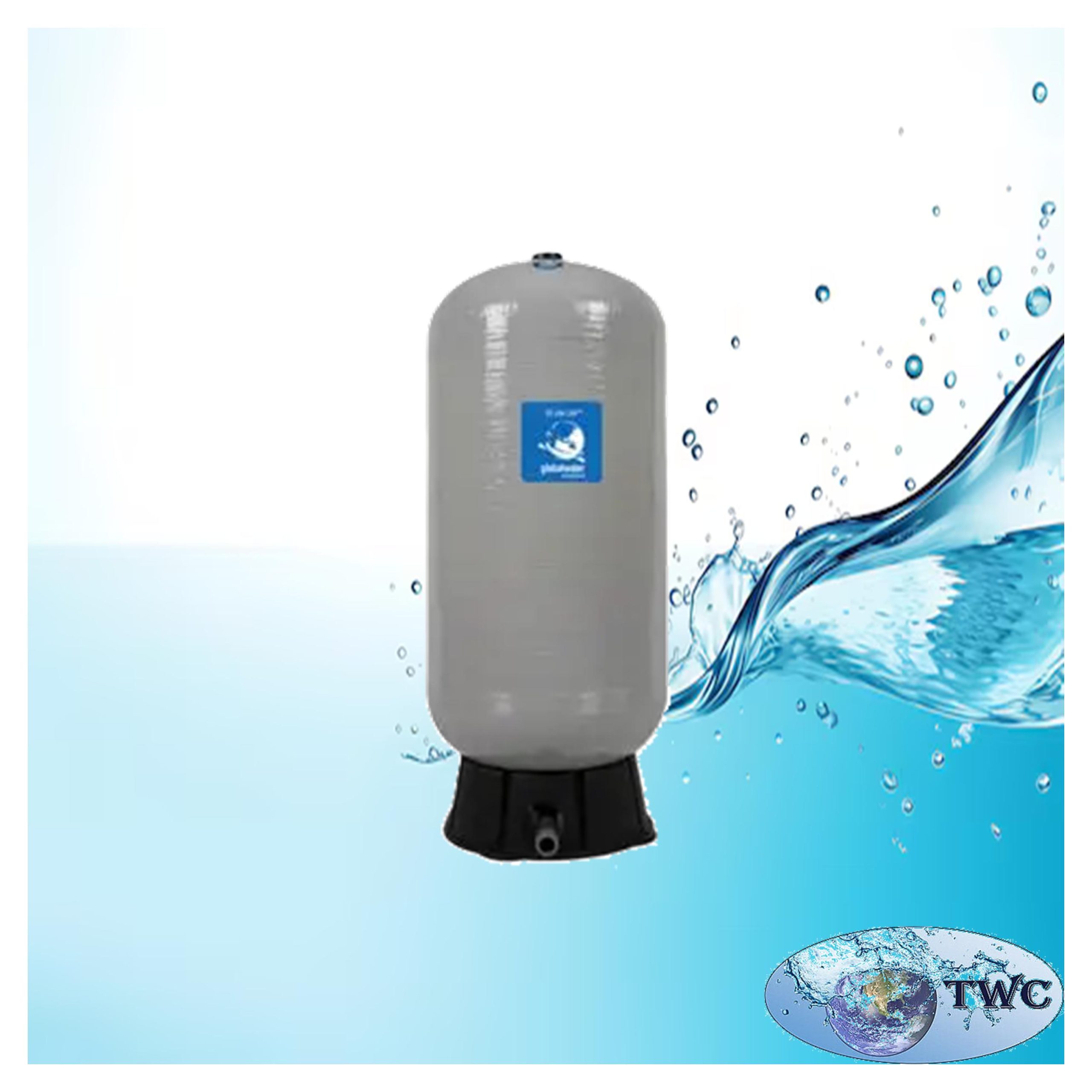

The Global Water Solutions C2-Lite CAD™ 100-liter vertical pressure tank is a premium lightweight composite pressure vessel designed to deliver reliable water pressure, exceptional corrosion resistance, and long-lasting performance in residential, commercial, agricultural, and industrial water systems. Manufactured by Global Water Solutions (GWS), the C2-Lite CAD™ Series combines advanced composite technology with the proven performance of traditional pressure tanks, making it an ideal solution for demanding installations where corrosion resistance is essential.

The C2-Lite CAD™ 100L vertical pressure tank (Model: C2B-100LV) incorporates GWS’s patented CAD-2™ (controlled action diaphragm) technology, which combines a 100% butyl diaphragm with a precision-moulded co-polymer polypropylene liner. This innovative design completely separates water from compressed air, preventing water logging, preserving water quality, and delivering superior drawdown performance.

Unlike conventional steel pressure vessels, the C2-Lite CAD™ tank is manufactured using continuous-strand fiberglass reinforced with epoxy resin, creating a lightweight, rust-proof, and weather-resistant pressure tank suitable for both indoor and outdoor installations. Its vertical design minimises floor space requirements while maximising water storage capacity.

By reducing pump cycling and maintaining stable system pressure, the C2-Lite CAD™ 100L improves system efficiency, lowers energy consumption, and significantly extends the lifespan of pumps and associated equipment.

Features:

• 100-Liter vertical composite pressure tank.
• Manufactured by Global Water Solutions (GWS).
• C2-Lite CAD™ series.
• Patented CAD-2™ controlled action diaphragm technology.
• Premium 100% butyl diaphragm.
• Precision-moulded co polymer polypropylene liner.
• Lightweight fiberglass composite construction.
• Completely corrosion-proof and rust-resistant.
• Weather-resistant for indoor and outdoor installations.
• Reinforced composite water connection.
• Heavy-duty polypropylene base for excellent stability.
• Brass air valve with leak-resistant o-ring seal.
• No-sweat design helps minimise condensation.
• Reduces pump cycling and extends pump lifespan.
• Maintains consistent and reliable water pressure.
• Factory pre-charged for quick installation.
• Suitable for potable drinking water systems.
• Maintenance-free operation under normal conditions.
• Comprehensive factory testing for quality assurance.

Specifications:

• Brand: Global Water Solutions (GWS).
• Series: C2-Lite CAD™.
• Model: C2B-100LV.
• Tank type: Vertical composite pressure tank.
• Nominal capacity: 100 Litres.
• Maximum working pressure: 8.6 Bar (125 psi).
• Factory pre-charge: 1.4 Bar (20 psi).
• Operating temperature: -10°C to 49°C (avoid freezing).
• Internal membrane: 100% butyl CAD-2™ diaphragm.
• Internal liner: Precision-moulded co polymer polypropylene.
• Construction: Fiberglass composite with epoxy resin.
• Water Connection: 1″ BSPT.
• Height: 980 mm.
• Diameter: 421 mm.
• Approximate weight: 12.3 kg.
• Orientation: Vertical.
• Application: Water pressure boosting and pressure storage.

Applications:

• Borehole water systems.
• Pressure booster systems.
• Residential water supply.
• Commercial buildings.
• Irrigation systems.
• Water treatment and filtration plants.
• Reverse osmosis systems.
• Hotels and lodges.
• Golf courses.
• Coastal and marine environments.
• Agricultural water systems.
• Industrial water distribution.

Why choose the C2-Lite CAD™ 100-liter vertical pressure tank?

• Lightweight composite construction makes handling and installation easier.
• Completely rust-proof and corrosion-resistant design provides exceptional durability.
• Patented CAD-2™ technology delivers superior drawdown performance.
• Complete separation of water and air prevents waterlogging.
• Weather-resistant construction is ideal for indoor and outdoor installations.
• Reduces pump cycling to extend pump and motor lifespan.
• Improves energy efficiency and reduces operating costs.
• No-sweat construction helps minimise condensation.
• Suitable for corrosive, coastal, and high-humidity environments.
• Maintenance-free operation reduces servicing requirements.
• Manufactured by Global Water Solutions to internationally recognised quality standards.
