Description

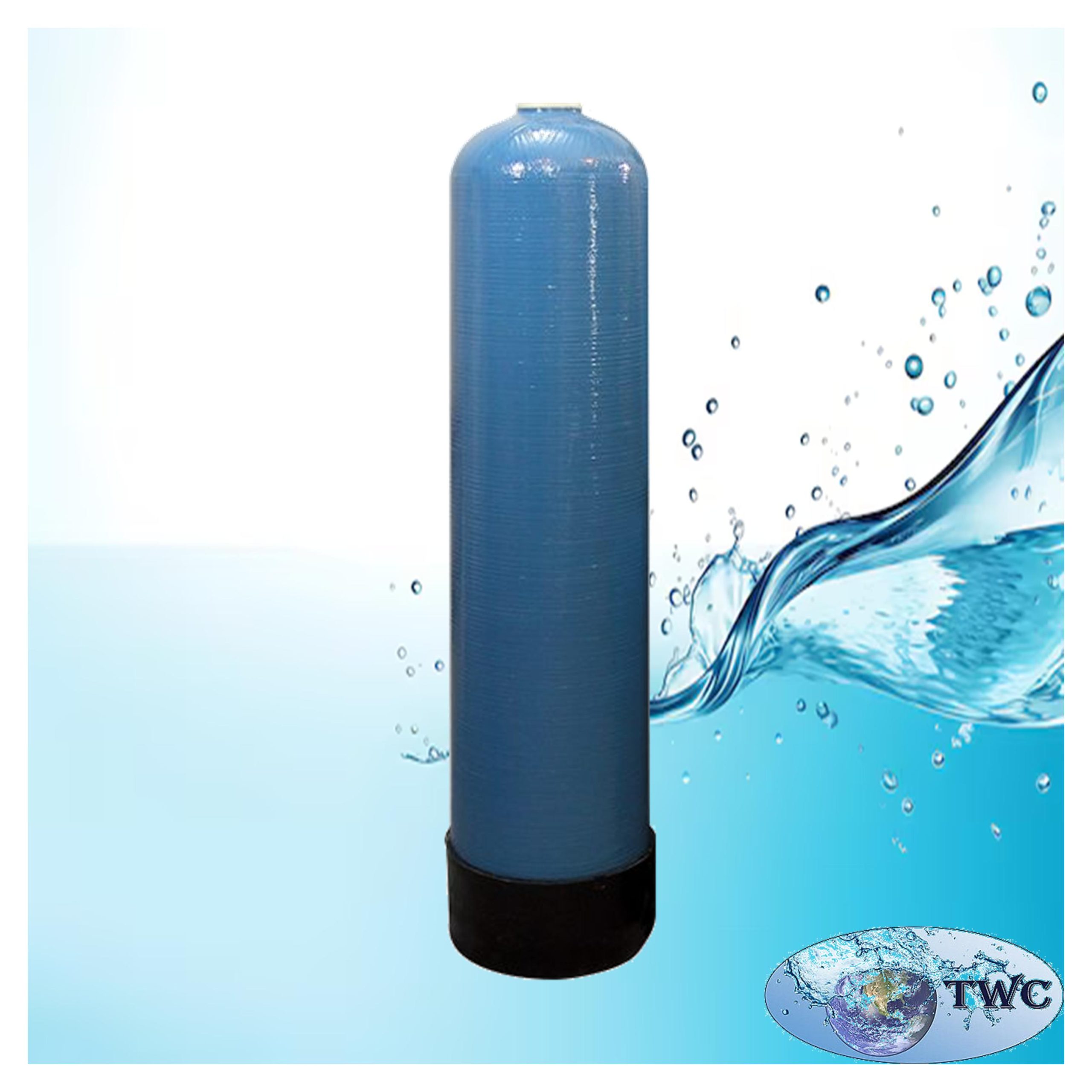

The Canature FRP pressure vessel 14″ x 65″ – 4″ (148L) is a premium-quality fiberglass reinforced plastic (FRP) pressure vessel designed for residential, commercial, and industrial water treatment applications. Manufactured with a durable fiberglass composite outer shell and a food-grade HDPE (polyethylene) inner liner, it offers exceptional strength, corrosion resistance, and long service life.

Supplied as an empty vessel, it can be filled with a wide variety of filtration media including activated carbon, KDF, silica sand, gravel, ion exchange resins, activated glass media, DMI-65, Katalox Light, Calcite, and other specialty filtration media. The large 4-inch top opening makes this vessel ideal for high-flow systems and applications requiring larger internal distributors and easier media loading.

Features:

• Heavy-duty fiberglass reinforced plastic (FRP) construction.
• Large 4-inch top opening.
  • Food-grade HDPE (polyethylene) inner liner.
• Non-corrosive and rust-proof design.
• Suitable for residential, commercial, and industrial applications.
• Compatible with a wide range of filtration media.
• Lightweight with exceptional structural strength.
• High-pressure performance.
• Manufactured using advanced automated production technology.
• NSF and ACS certified materials.
• Low maintenance design.
• Long service life.

Specifications:

• Product: Canature FRP pressure vessel.
• Vessel size: 14″ x 65″.
• Top opening: 4″.
• Vessel capacity: 148 Litres.
• Recommended flow rate: 1,700 L/h.
• Inner liner: Food-grade HDPE (Polyethylene).
• outer shell: Fiberglass reinforced plastic (FRP).
• Maximum operating pressure: 150 psi (10.5 bar).
• Maximum operating temperature: 120°F (49°C) threaded / 150°F (66°C) flanged.

Applications:

• Water softeners.
• Activated carbon filtration.
• Multimedia filtration.
• Activated glass media filtration.
• Sediment filtration.
• Iron removal systems.
• Manganese removal systems.
• pH correction systems.
• Reverse Osmosis pre-treatment.
• Borehole water treatment.
• Municipal water filtration.
• Commercial water treatment.
• Industrial process water.

Why choose the Canature FRP pressure vessel 14″ x 65″ – 4″?

• Durable 100% composite fiberglass construction that will not rust or corrode.
• Large 4-inch opening allows for easier media loading and compatibility with larger distributors and control valves.
• Food-grade HDPE liner suitable for potable water applications.
• Compatible with a wide variety of filtration and ion exchange media.
• Manufactured using advanced automated production technology for consistent quality.
• NSF and ACS certified materials with KTW and W270 compliance.
• Lightweight construction for easier installation and handling.
• Designed for long-term, reliable operation with minimal maintenance.
• Suitable for residential, commercial, and industrial water treatment systems.
• Backed by a 1-year warranty for both residential and commercial installations.
