Description

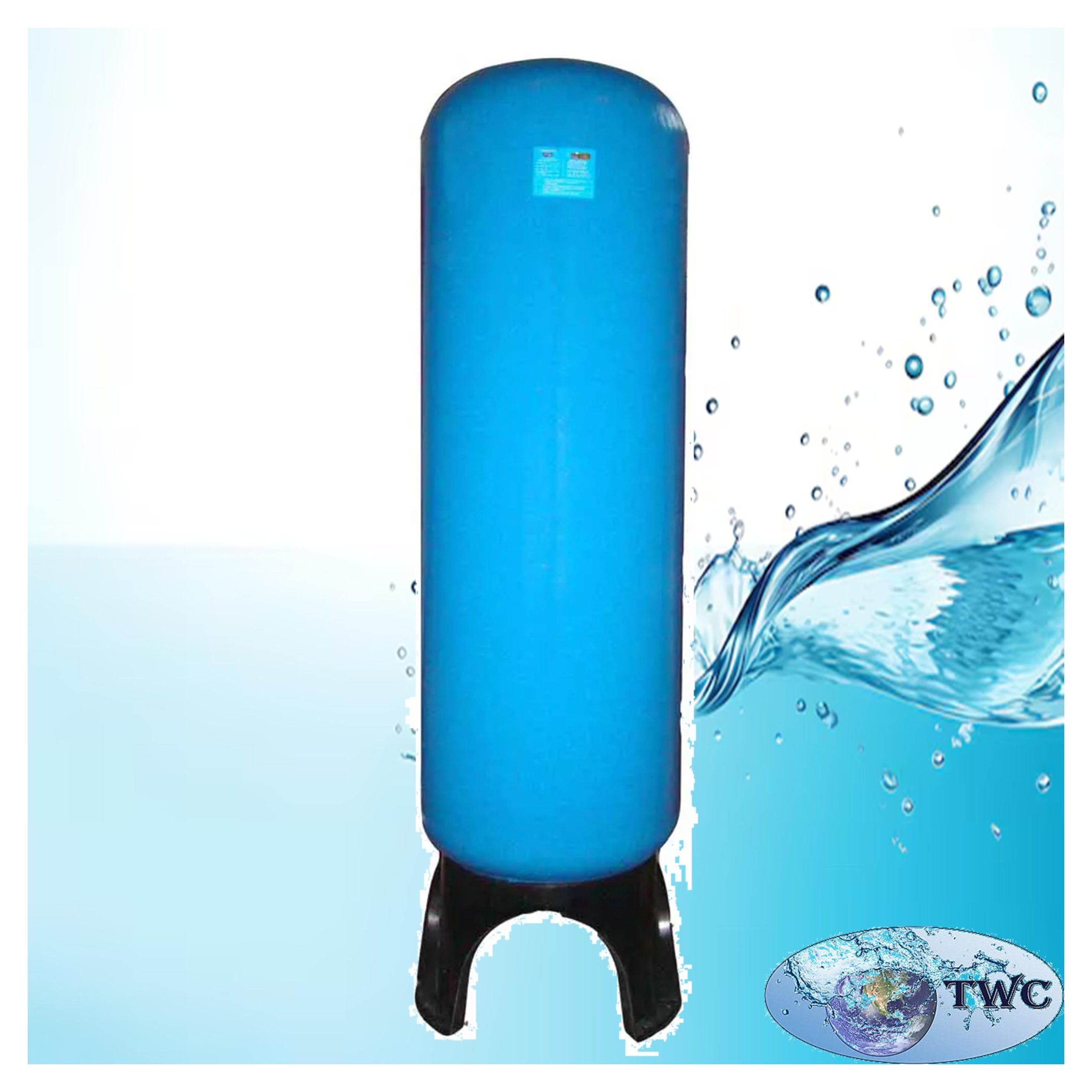

The Canature FRP pressure vessel 24″ x 72″ – 4″ top and 4″ drain (473L) is a heavy-duty fiberglass reinforced plastic (FRP) pressure vessel designed for high-capacity commercial and industrial water treatment systems. Manufactured with a high-strength fiberglass composite outer shell and a food-grade HDPE (polyethylene) inner liner, this vessel delivers exceptional corrosion resistance, structural strength, and long-term reliability in demanding environments.

Featuring a 4-inch top opening and a 4-inch bottom drain connection, this vessel allows for easy media loading, efficient drainage, and simplified maintenance. It is suitable for use with a wide range of filtration media, including activated carbon, KDF, silica sand, gravel, ion exchange resins, activated glass media, DMI-65, Katalox Light, Calcite, and other specialty media. Its large capacity and high flow rate make it ideal for industrial process water, municipal treatment, and large-scale filtration applications.

Features:

• Heavy-duty fiberglass reinforced plastic (FRP) construction.
• 4-inch top opening with 4-inch bottom drain connection.
• Food-grade HDPE (polyethylene) inner liner.
• Non-corrosive and rust-proof construction.
• Designed for commercial and industrial water treatment.
• Compatible with a wide variety of filtration and ion exchange media.
• High-strength composite construction.
• Ideal for high-flow filtration systems.
• Manufactured using advanced automated production technology.
• NSF and ACS certified materials.
• Low maintenance and long service life.

Specifications:

• Product: Canature FRP pressure vessel.
• Vessel size: 24″ x 72″.
• Top opening: 4″.
• Bottom drain: 4″.
• Vessel capacity: 473 Litres.
• Recommended flow rate: 5,200 L/h.
• Inner liner: Food-grade HDPE (Polyethylene).
• Outer shell: Fiberglass reinforced plastic (FRP).
• Maximum operating pressure: 150 psi (10.5 bar).
• Maximum operating temperature: 120°F (49°C) threaded / 150°F (66°C) flanged.

Applications:

• Water softeners.
• Activated carbon filtration.
• Multimedia filtration.
• Activated glass media filtration.
• Sediment filtration.
• Iron removal systems.
• Manganese removal systems.
• pH correction systems.
• Reverse Osmosis pre-treatment.
• Borehole water treatment.
• Municipal water filtration.
• Commercial water treatment.
• Industrial process water.
• High-flow filtration systems.

Why choose the Canature FRP pressure vessel 24″ x 72″ – 4″ top and 4″ drain (473L)?

• Large-capacity vessel designed for demanding commercial and industrial water treatment applications.
• 4-inch top opening and 4-inch drain connection provide easy media loading and efficient maintenance.
• Durable 100% composite fiberglass construction that will not rust or corrode.
• Food-grade HDPE liner suitable for potable water applications.
• Compatible with a wide range of filtration and ion exchange media.
• Manufactured using advanced automated production technology for consistent quality.
• NSF and ACS certified materials with KTW and W270 compliance.
• Lightweight yet exceptionally strong for easier handling and installation.
• Designed for reliable, long-term performance with minimal maintenance.
• Ideal for high-flow filtration, municipal water treatment, and industrial process applications.
• Backed by a 1-year warranty for both residential and commercial installations.
