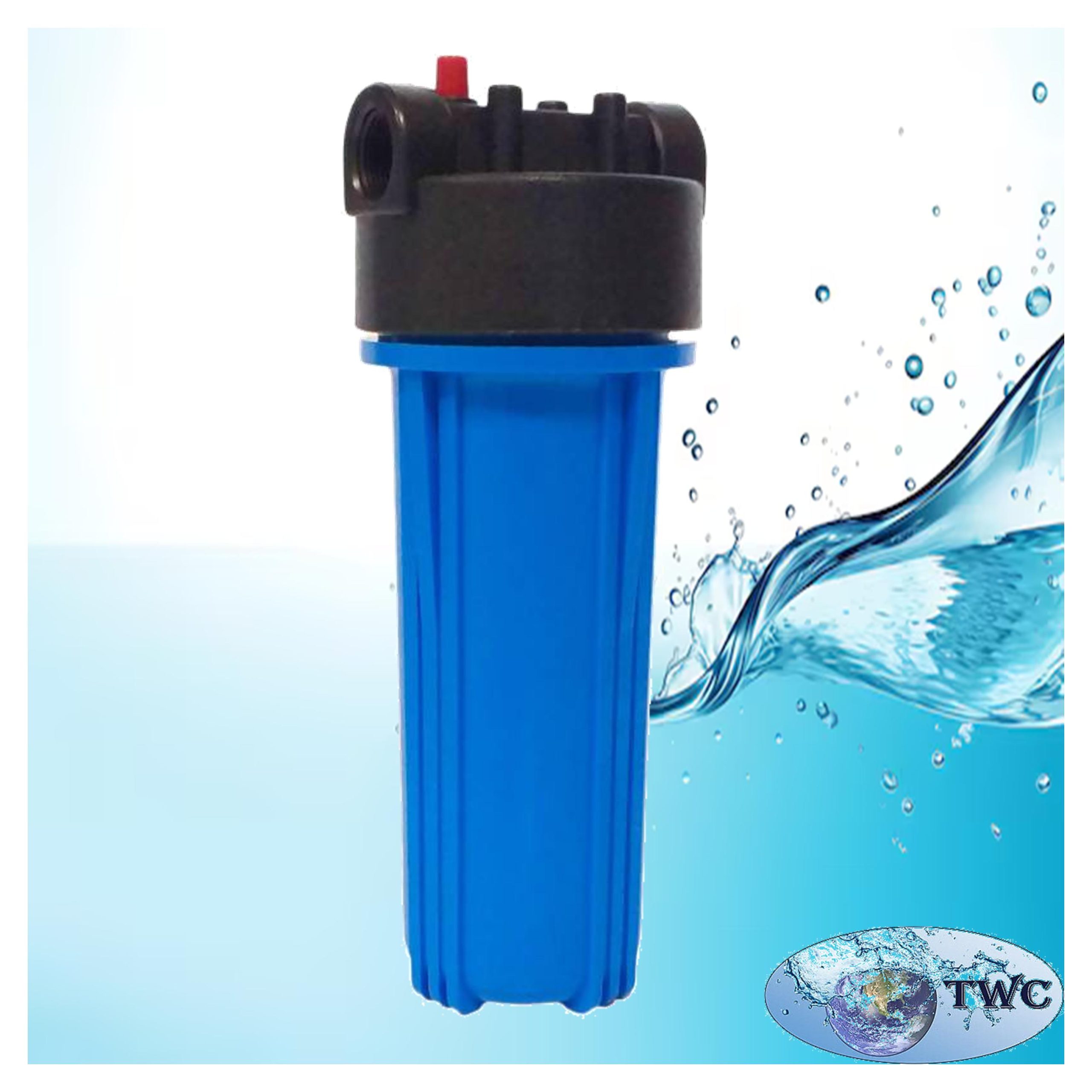

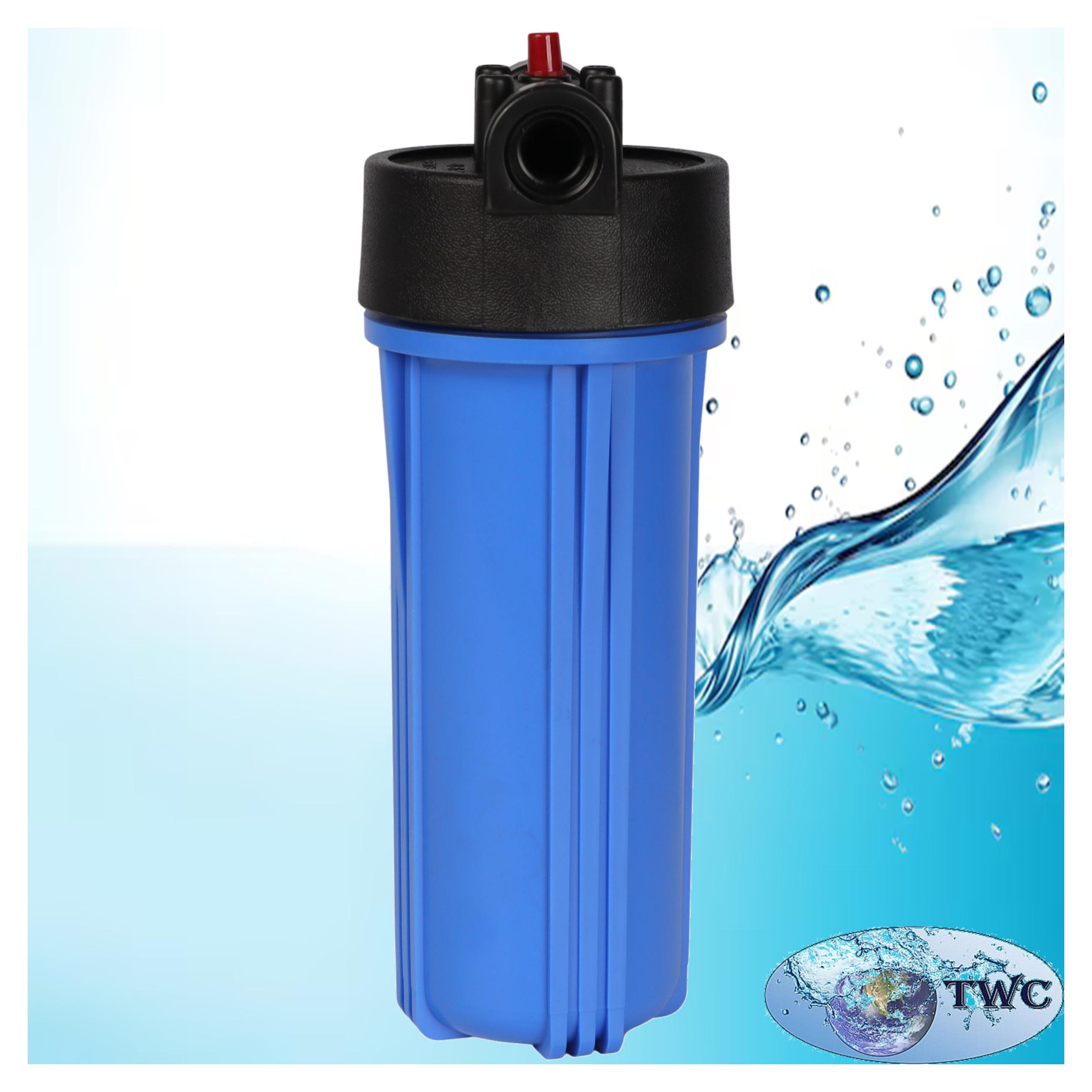

The 10″ Slimline Filter Housing 3/4″ Female Double O-Ring (Blue) is a durable, high-quality filter housing designed for residential, commercial, and light industrial water filtration applications. Manufactured from reinforced polypropylene, it is compatible with all standard 10-inch x 2.5-inch filter cartridges, allowing you to customise your filtration system to suit your water quality requirements.

The double O-ring design provides enhanced sealing performance, reducing the risk of leaks while ensuring reliable operation under pressure. Suitable for sediment, carbon block, granular activated carbon (GAC), specialty, and reverse osmosis pre- and post-filtration cartridges, this housing offers dependable performance and long service life.

Features:

• Durable reinforced polypropylene construction.
• Double O-ring sealing system for improved leak protection.
• Compatible with standard 10″ x 2.5″ filter cartridges.
• Compact slimline design saves installation space.
• Available with opaque or clear sump options.
• Excellent chemical resistance.
• Suitable for residential, commercial, and light industrial applications.
• Easy cartridge replacement and maintenance.

Specifications:

• Housing Size: 10″ x 2.5″ Slimline
• Housing Colour: Blue
• Housing Material: Polypropylene (Opaque)
• Cap Material: Reinforced Polypropylene
• Button Assembly: 300 Series Stainless Steel, EPDM and Polypropylene
• Seal Type: Double Buna-N O-Rings
• Inlet/Outlet Connections: 3/4″ Female Thread
• Maximum Operating Pressure: 125 psi (8.6 bar)
• Operating Temperature: 4.4°C to 51.7°C (40°F to 125°F)
• Compatible Cartridge Size: Standard 10″ x 2.5″

Applications:

• Under-sink drinking water systems.
• Countertop filtration systems.
• Residential water filtration.
• Reverse osmosis pre- and post-filtration.
• Recreational vehicle (RV) filtration.
• Food service applications.
• Humidification systems.
• Light commercial and industrial filtration.
• General-purpose water treatment systems.

Installation:

Install the housing securely using an appropriate mounting bracket where required. Insert a compatible 10″ x 2.5″ filter cartridge, ensuring both O-rings are clean and lightly lubricated with food-grade silicone lubricant before assembly. Tighten the sump securely, connect the 3/4″ threaded plumbing connections, and slowly pressurise the system while checking for leaks. Replace the cartridge according to the manufacturer’s recommendations or when flow decreases.

Why Choose the 10″ Slimline Filter Housing?

• Double O-ring sealing provides superior leak protection.
• Compatible with a wide range of standard 10″ slimline filter cartridges.
• Durable reinforced polypropylene construction ensures long service life.
• Compact design fits easily into confined installation spaces.
• Suitable for drinking water, reverse osmosis, food service, and commercial filtration systems.
• Excellent chemical compatibility for a variety of water treatment applications.
• Provides a reliable and cost-effective solution for custom water filtration systems.
