Description

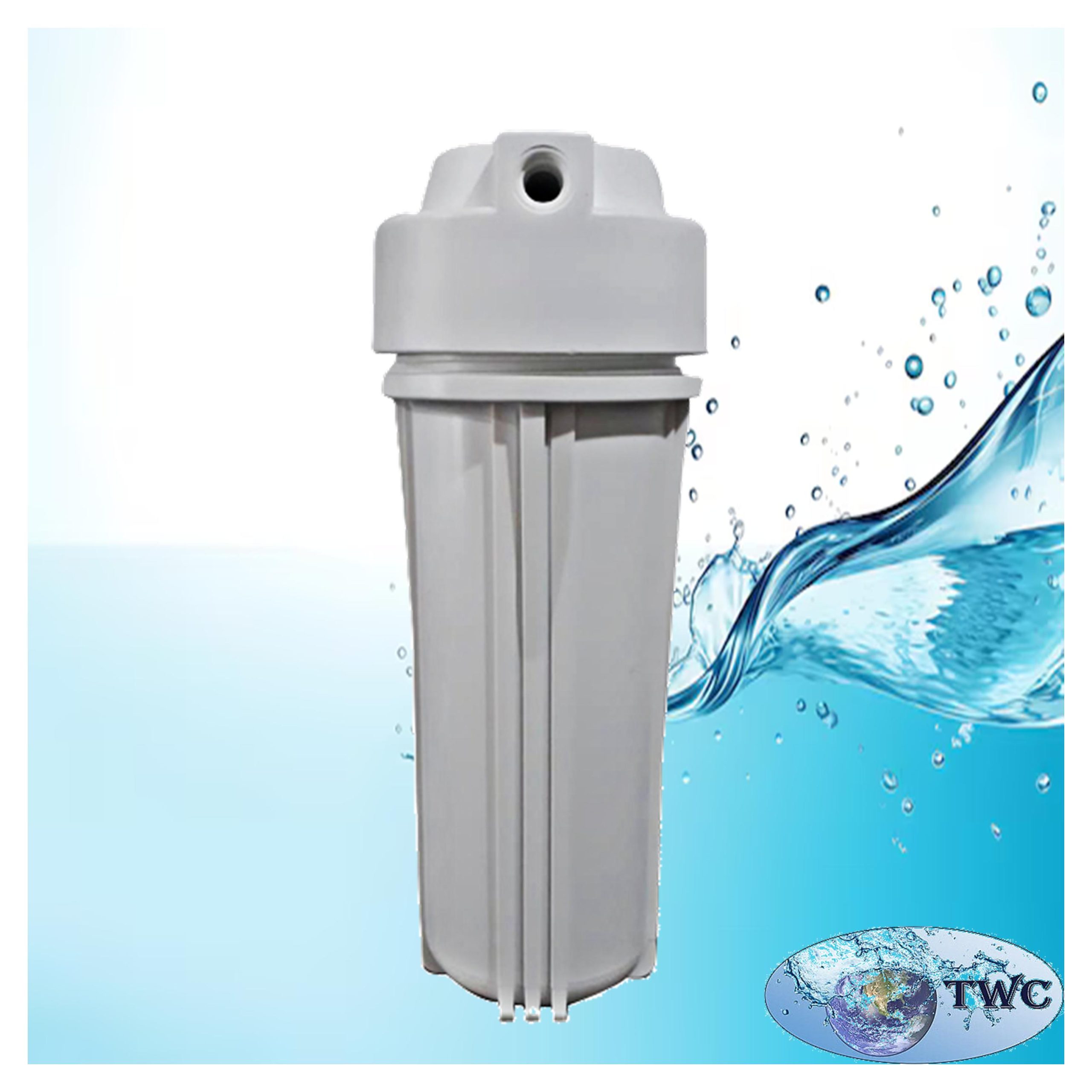

The White Slimline 10″ Filter Housing – 2.5″ x 10″ – 1/4″ Inlet/Outlet is manufactured from durable reinforced polypropylene with the option of either an opaque polypropylene or clear Styrene Acrylonitrile (SAN) sump. Designed to accommodate standard 10″ x 2.5″ filter cartridges, this housing provides reliable filtration for a wide range of residential, commercial, and light industrial water treatment applications.

Its compact slimline design offers excellent chemical compatibility while requiring minimal installation space. Suitable for under-sink filtration, countertop systems, reverse osmosis pre- and post-filtration, recreational vehicles, food service, and humidification systems, this housing delivers dependable performance and easy maintenance.

Features:

• Compatible with standard 10″ x 2.5″ filter cartridges.
• Durable reinforced polypropylene cap.
• Available with clear SAN or opaque polypropylene sump.
• Compact slimline design for space-saving installations.
• Leak-proof Buna-N O-ring seal.
• Excellent chemical compatibility.
• Suitable for residential, commercial, and light industrial applications.
• Easy cartridge replacement and maintenance.

Specifications:

• Housing size: 10″ x 2.5″ Slimline.
• Housing material: Opaque Polypropylene.
• Cap material: Reinforced Polypropylene.
• Button assembly: 300 Series stainless steel, EPDM and Polypropylene.
• O-ring material: Buna-N.
• Inlet/Outlet connections: 1/4″ Female thread.
• Maximum operating pressure: 125 psi (8.6 bar).
• Operating temperature: 4.4°C to 51.7°C (40°F to 125°F).
• Compatible cartridge size: Standard 10″ x 2.5″.
• Recommended flow rate: 2–5 L/min.
• Maximum flow rate: Up to 8 L/min, depending on cartridge type and micron rating.

Applications:

• Under-sink drinking water filtration.
• Countertop water filtration systems.
• Reverse osmosis pre- and post-filtration.
• Recreational vehicle (RV) filtration.
• Food service equipment.
• Humidification systems.
• Residential water treatment.
• Light commercial filtration.
• General-purpose liquid filtration.

Installation:

Install the housing using a suitable mounting bracket where required. Insert a compatible 10″ x 2.5″ filter cartridge, ensuring the Buna-N O-ring is clean and lightly lubricated with food-grade silicone lubricant before tightening the housing. Connect the 1/4″ female threaded inlet and outlet fittings, slowly pressurise the system, and inspect for leaks before placing the unit into service.

Why Choose the White Slimline 10″ Filter Housing – 2.5″ x 10″ – 1/4″ Inlet/Outlet?

• Compatible with a wide range of standard 10″ slimline filter cartridges.
• Available with either a clear sump for easy cartridge inspection or an opaque sump for light-sensitive applications.
• Compact design fits easily into confined installation spaces.
• Durable construction provides long service life and excellent chemical resistance.
• Leak-proof Buna-N O-ring ensures reliable sealing.
• Ideal for reverse osmosis systems, drinking water filtration, and general water treatment applications.
• Simple installation and straightforward cartridge replacement reduce maintenance time.
