Description

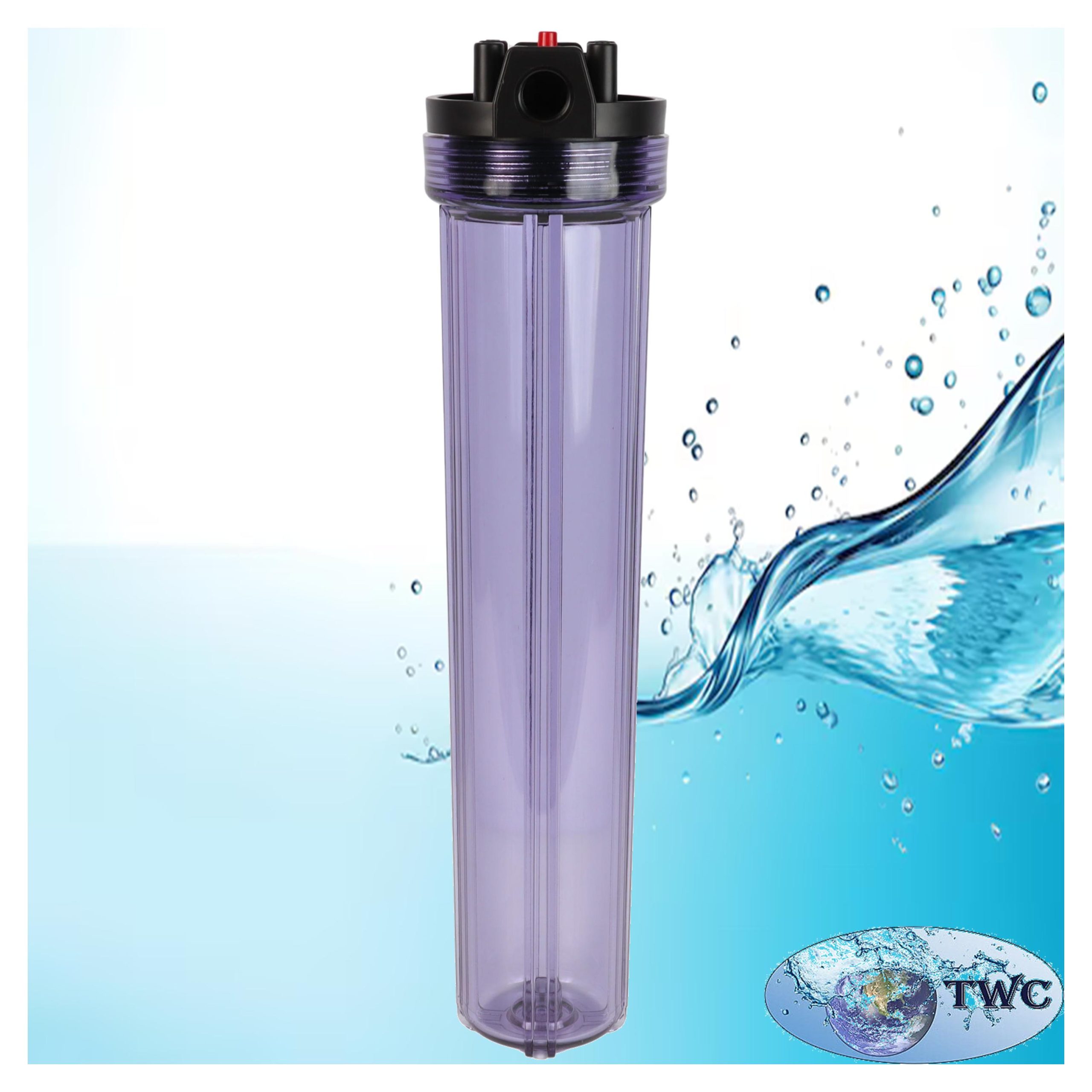

The 20″ Slimline Filter Housing Clear – 3/4″ Inlet/Outlet is a durable, high-capacity filter housing designed for residential, commercial, and light industrial water filtration systems. Manufactured from reinforced polypropylene with a clear Styrene Acrylonitrile (SAN), it allows for easy visual inspection of the filter cartridge without disassembling the housing.
Compatible with all standard 20″ x 2.5″ slimline filter cartridges, this housing is ideal for sediment, carbon block, granular activated carbon (GAC), and specialty filter cartridges. Its slimline design provides excellent filtration performance while requiring minimal installation space, making it suitable for under-sink systems, reverse osmosis filtration, food service, recreational vehicles, and general water treatment applications.
Features:
- Compatible with standard 20″ x 2.5″ slimline filter cartridges.
- Durable reinforced polypropylene cap.
- Clear SAN sump allows easy cartridge inspection.
- Compact slimline design saves installation space.
- Pressure relief (bleed) button for easy cartridge replacement.
- Leak-proof Buna-N O-ring seal.
- FDA-grade materials suitable for potable water applications.
- Four integrated mounting bosses for secure installation.
- Excellent chemical compatibility and long service life.
Specifications:
- Housing Size: 20″ x 2.5″ Slimline
- Housing Colour: Clear
- Housing Material: Styrene Acrylonitrile (SAN)
- Cap Material: Reinforced Polypropylene
- O-Ring Type: Single Buna-N O-ring
- Inlet/Outlet Connections: 3/4″ Female Thread
- Maximum Operating Pressure: 6 bar (90 psi)
- Operating Temperature: 4°C to 38°C
- Compatible Cartridge Size: Standard 20″ x 2.5″ Slimline
Applications:
- Residential drinking water filtration
- Under-sink water filtration systems
- Countertop filtration systems
- Reverse osmosis pre-filtration
- Reverse osmosis post-filtration
- Recreational vehicle (RV) filtration
- Food service equipment
- Humidification systems
- Light commercial water filtration
- General-purpose water treatment
Installation:
Install the housing using a suitable mounting bracket and secure it using the integrated mounting bosses. Insert a compatible 20″ x 2.5″ slimline filter cartridge, ensuring the Buna-N O-ring is clean and lightly lubricated with food-grade silicone lubricant before tightening the housing. Connect the 3/4″ female threaded inlet and outlet fittings, slowly pressurise the system, and inspect for leaks before placing the unit into service.
Why Choose the 20″ Slimline Filter Housing Clear – 3/4″ Inlet/Outlet?
- Clear housing allows quick visual inspection of cartridge condition.
- Compatible with a wide range of standard 20″ x 2.5″ slimline filter cartridges.
- Durable reinforced polypropylene construction provides long service life.
- Pressure relief button simplifies filter replacement and maintenance.
- Compact design fits installations where space is limited.
- Leak-proof Buna-N O-ring ensures reliable sealing.
- Ideal for reverse osmosis systems, drinking water filtration, and general water treatment applications.
