Description

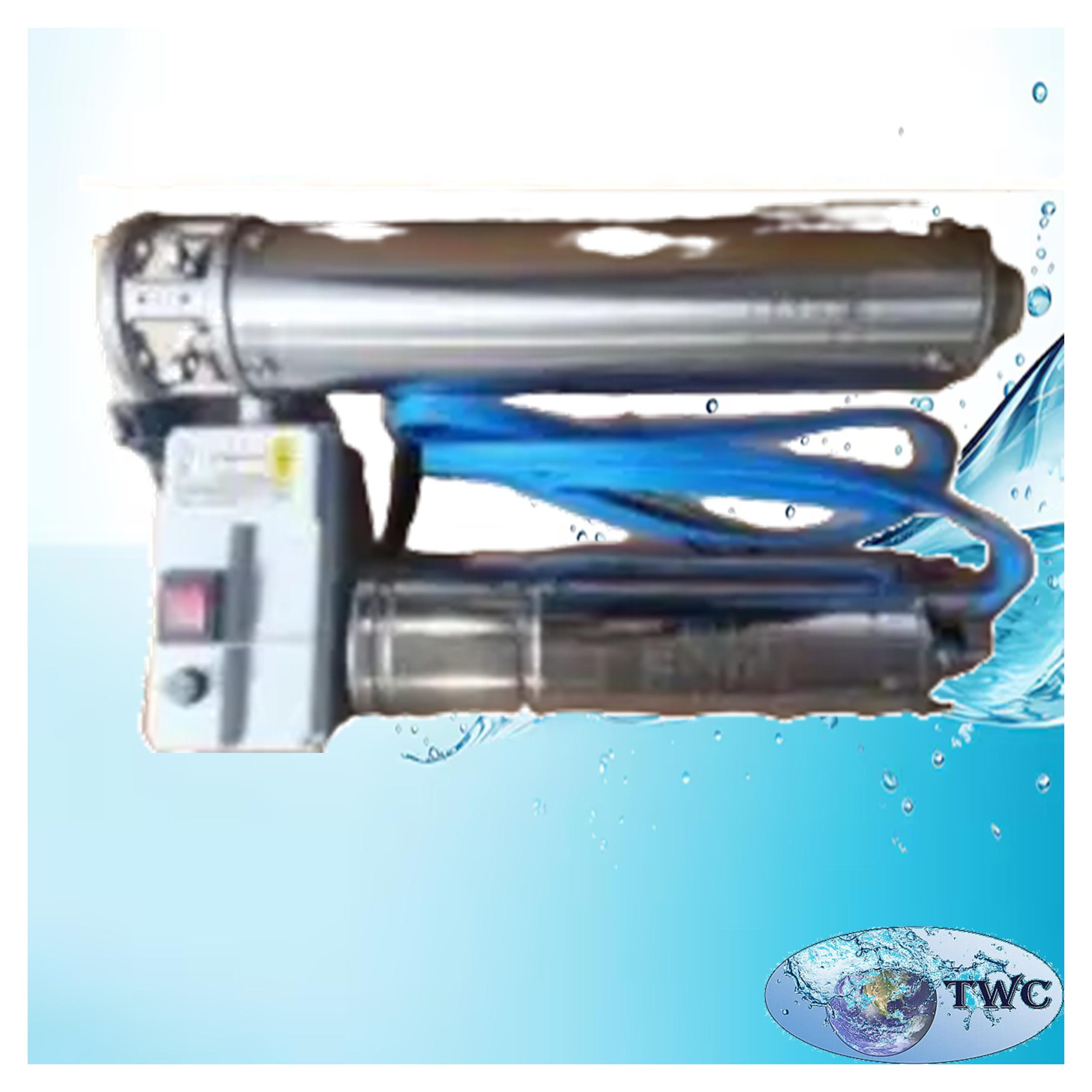

The DAB Borehole Combo 5 – 1.1kW OC S4-2/20 is a premium, high-pressure borehole pumping solution designed to deliver outstanding performance for residential, agricultural, commercial, and light industrial water supply applications. This complete package features a 4-inch stainless steel submersible pump, a powerful 1.1kW oil-cooled motor, and all the essential control components required for a reliable and efficient installation.
The S4-2/20 hydraulic section is engineered for applications where high pressure and dependable water delivery are essential. It is ideally suited for supplying water to large homes, farms, irrigation systems, pressure boosting installations, storage tanks, commercial buildings, and municipal water applications. Manufactured from high-quality AISI 304 stainless steel with precision-engineered technopolymer hydraulic components, this pump offers exceptional durability, corrosion resistance, and long-term reliability.
With a maximum head of approximately 136 metres and a maximum flow rate of 3.0 m³/h (50 L/min), the DAB Borehole Combo 5 provides excellent pressure while maintaining efficient and economical operation.
3-in-1 Borehole Combo:
- Pump and motor: Complete submersible pump solution with high-performance motor.
- Control box: Provides easy operation and reliable protection for long-term use.
- Convenience: All-in-one package with everything needed for installation and maintenance.
Features:
- Complete borehole pump package.
- 1.1kW (1.5 HP) oil-cooled submersible motor.
- 220–240V single-phase power supply.
- 4-inch stainless steel submersible borehole pump.
- Maximum head: up to 136 metres.
- Maximum flow rate: up to 3.0 m³/h (50 L/min).
- Corrosion-resistant AISI 304 stainless steel construction.
- High-efficiency technopolymer impellers and diffusers.
- Built-in non-return valve.
- Suitable for boreholes with a minimum diameter of 100 mm (4″).
- Designed for clean water applications.
- Energy-efficient operation.
- Quiet and dependable performance.
- Easy installation with minimal maintenance requirements.
Specifications:
- Pump model: S4-2/20.
- Motor power: 1.1kW (1.5 HP).
- Power supply: 220–240V, Single Phase.
- Pump diameter: 4″ (100 mm).
- Maximum head: 136 m.
- Maximum flow rate: 3.0 m³/h (50 L/min).
- Discharge connection: 1¼”.
- Maximum water temperature: 40°C.
- Suitable for clean water.
- Maximum sand content: Approximately 120 g/m³.
- Motor type: Oil-cooled.
- Pump construction: AISI 304 stainless steel with technopolymer hydraulic components.
Applications:
- Domestic borehole water supply.
- Large residential properties.
- Farms and agricultural irrigation.
- Pressure boosting systems.
- Water storage tank filling.
- Livestock watering.
- Commercial buildings.
- Light industrial water supply.
- Municipal and rural water installations.
