Description

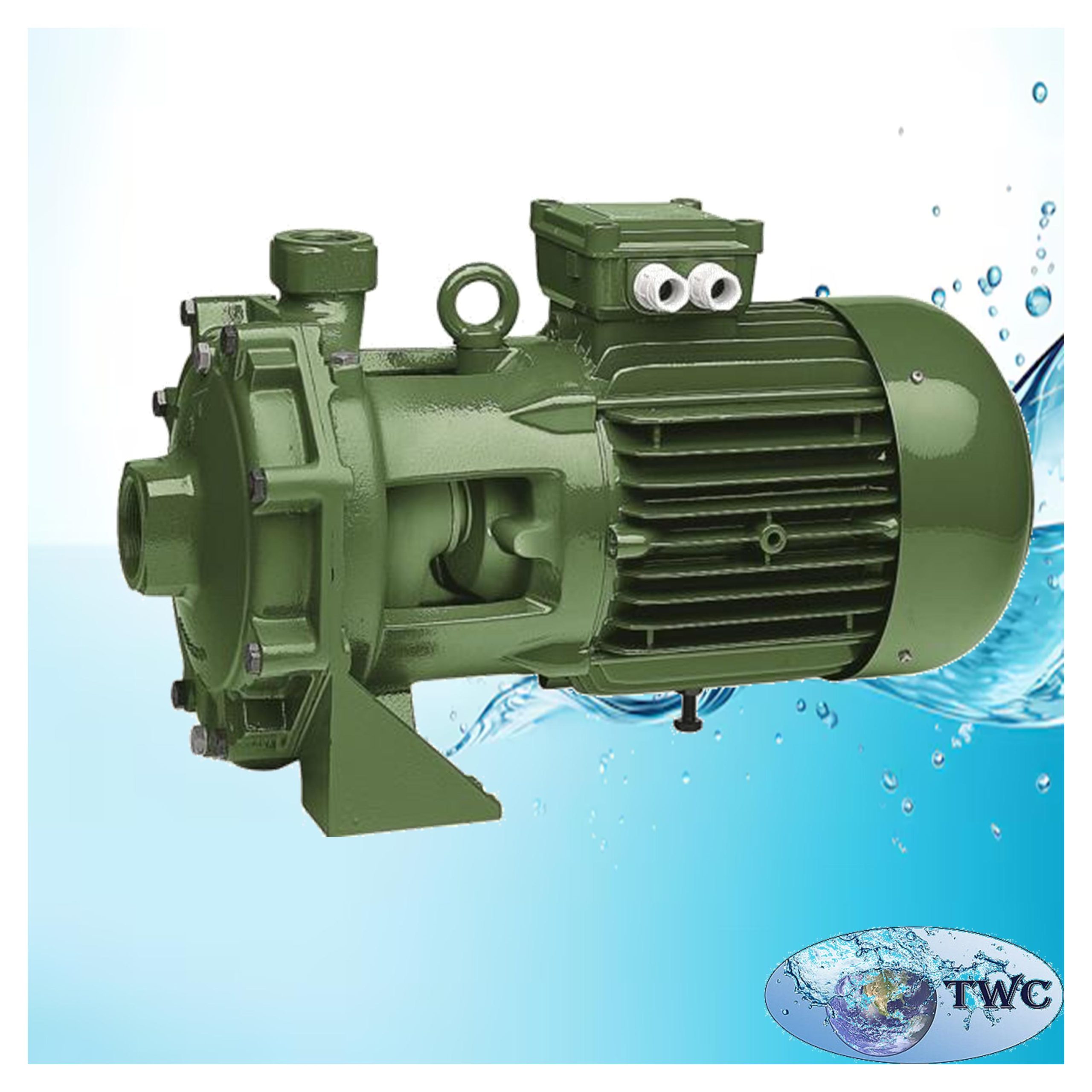

The DAB Centrifugal Double Impeller K Pump 2.2kW – Single Phase K55/100 is a premium heavy-duty twin-impeller centrifugal pump engineered to deliver exceptional pressure, reliable water flow, and outstanding performance for demanding domestic, agricultural, commercial, and industrial applications. Its advanced double-impeller hydraulic design provides superior pressure compared to conventional centrifugal pumps, making it the ideal choice for pressure boosting systems, irrigation, water transfer, and high-demand water supply installations.

Powered by a 2.2kW (3 HP) single-phase motor, the K55/100 delivers powerful yet energy-efficient operation with low noise levels and excellent reliability. The robust cast iron pump body, corrosion-resistant stainless steel shaft, durable technopolymer impellers, and carbon/ceramic mechanical seal ensure exceptional durability and long service life, even under continuous operating conditions.

Designed for pumping clean, non-abrasive, chemically neutral water, the DAB K55/100 is ideal for pressure boosting systems, pressure vessel installations, irrigation networks, commercial water supply, and industrial water transfer. The pump can be installed in either a horizontal or vertical position, provided the motor remains above the pump.

Features:

• Twin-impeller centrifugal pump for high-pressure applications.
• 2.2kW (3 HP) single-phase motor.
• 220–240V, 50Hz power supply.
• High-performance pressure boosting pump.
• Maximum flow rate: up to 12 m³/h (200 L/min).
• Maximum head: up to 62 metres.
• Heavy-duty cast iron pump body.
• Cast iron motor support.
• High-efficiency technopolymer twin impellers.
• Carbon/ceramic mechanical seal.
• Stainless steel motor shaft.
• Built-in thermal overload protection.
• Quiet, reliable, and energy-efficient operation.
• Suitable for horizontal or vertical installation (motor positioned above the pump).

Specifications:

• Pump model: K55/100 M.
• Pump type: Twin-impeller centrifugal pump.
• Motor power: 2.2kW (3 HP).
• Power supply: 220–240V, Single phase, 50Hz.
• Maximum flow rate: 12 m³/h (200 L/min).
• Maximum head: 62 m.
• Maximum operating pressure: 10 bar.
• Inlet connection: 1½”.
• Outlet connection: 1″.
• Liquid temperature: -10°C to +50°C.
• Maximum ambient temperature: +40°C.
• Protection class: IP44.
• Insulation class: F.
• Pump body: Cast iron.
• Impellers: Technopolymer.
• Mechanical seal: Carbon/Ceramic.
• Motor shaft: AISI 303 Stainless steel.
• Suitable for: Clean, non-abrasive, chemically neutral water.

Applications:

• Domestic water supply.
• Pressure boosting systems.
• Irrigation and sprinkler systems.
• Pressure vessel installations.
• Water transfer.
• Agricultural water supply.
• Commercial buildings.
• Industrial water circulation.
• General clean water distribution.
