Description

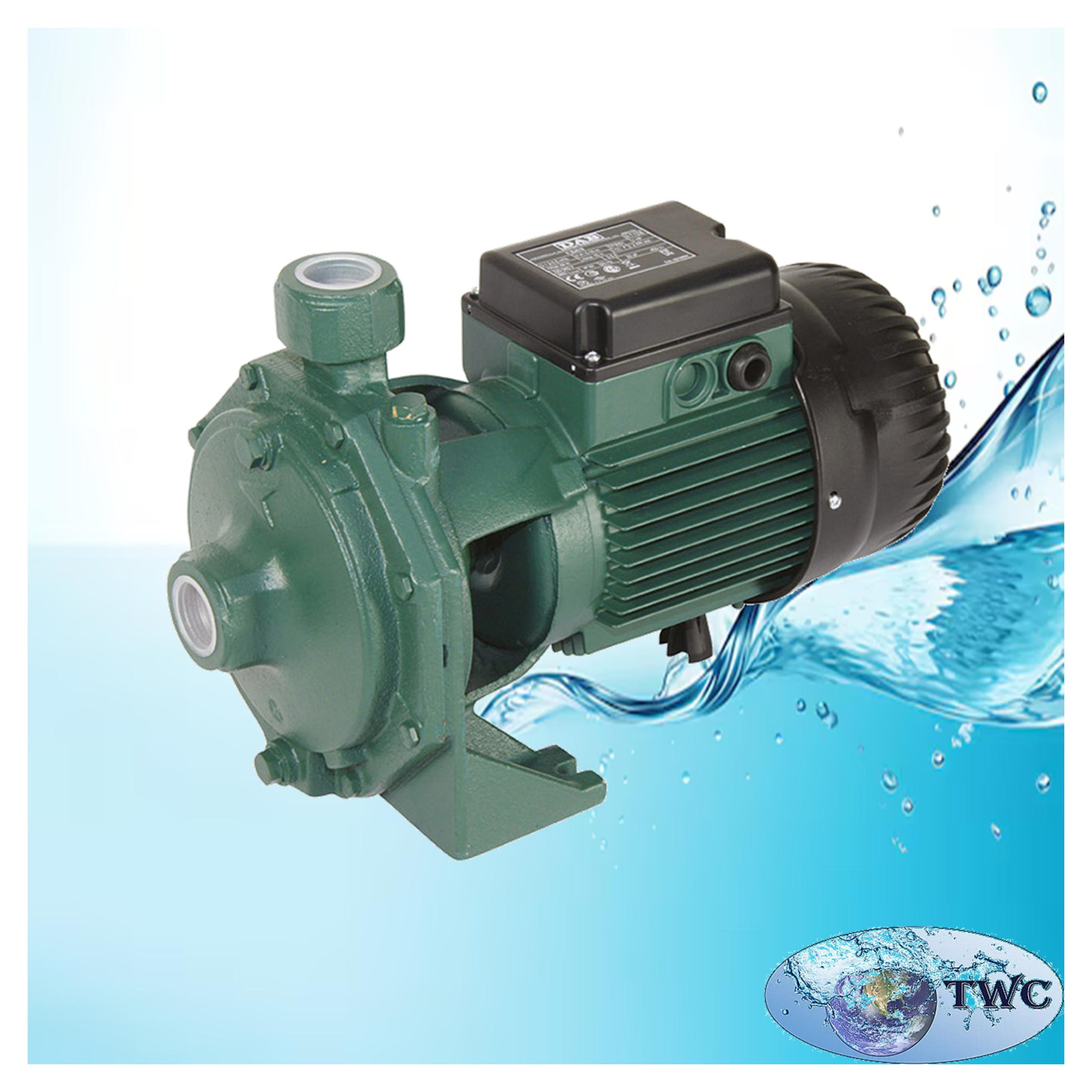

The DAB Centrifugal Double Impeller K Pump 1.1kW – Single Phase K45/50 is a premium twin-impeller centrifugal pump engineered to deliver high pressure and dependable water flow for domestic, agricultural, commercial, and industrial applications. Its advanced double-impeller design produces significantly higher pressure than a conventional single-impeller pump, making it the ideal choice for pressure boosting, irrigation, water transfer, and demanding water supply systems.
Powered by a 1.1kW (1.5 HP) single-phase motor, the K45/50 provides powerful yet energy-efficient performance with quiet operation and excellent reliability. The robust cast iron pump body, corrosion-resistant stainless steel shaft, and carbon/ceramic mechanical seal ensure exceptional durability and a long service life, even in demanding operating environments.
Designed for pumping clean, non-aggressive water free from solids and abrasive particles, the DAB K45/50 is suitable for continuous operation in residential, civil, agricultural, and light industrial installations.
Features:
- Twin-impeller centrifugal pump for high-pressure applications.
- 1.1kW (1.5 HP) single-phase motor.
- 220–240V, 50Hz power supply.
- High-pressure performance for pressure boosting systems.
- Maximum flow rate: up to 6.0 m³/h (100 L/min).
- Maximum head: up to 51 metres.
- Heavy-duty cast iron pump body.
- Cast iron motor support.
- Technopolymer or cast iron impellers (model dependent).
- Carbon/ceramic mechanical seal.
- Stainless steel motor shaft.
- Built-in thermal overload protection.
- Quiet, energy-efficient operation.
- Suitable for horizontal or vertical installation (motor positioned above the pump).
- Easy installation and low maintenance.
Specifications:
- Pump model: K45/50 M.
- Pump type: Twin-impeller centrifugal pump.
- Motor power: 1.1kW (1.5 HP).
- Power supply: 220–240V, Single phase, 50Hz.
- Maximum flow rate: 6.0 m³/h (100 L/min).
- Maximum head: 51 m.
- Maximum operating pressure: 8 bar.
- Inlet connection: 1¼”.
- Outlet connection: 1″.
- Liquid temperature: -10°C to +50°C.
- Maximum ambient temperature: +40°C.
- Protection class: IP44.
- Insulation class: F.
- Pump body: Cast iron.
- Impellers: Technopolymer or cast iron (depending on model).
- Mechanical seal: Carbon/Ceramic.
- Motor shaft: Stainless steel.
- Suitable for: Clean, non-abrasive, chemically neutral water.
Applications:
- Domestic water supply.
- Pressure boosting systems.
- Irrigation systems.
- Garden sprinkler installations.
- Water transfer.
- Commercial buildings.
- Agricultural water supply.
- Industrial water circulation.
- Pressure tank systems.
