Description

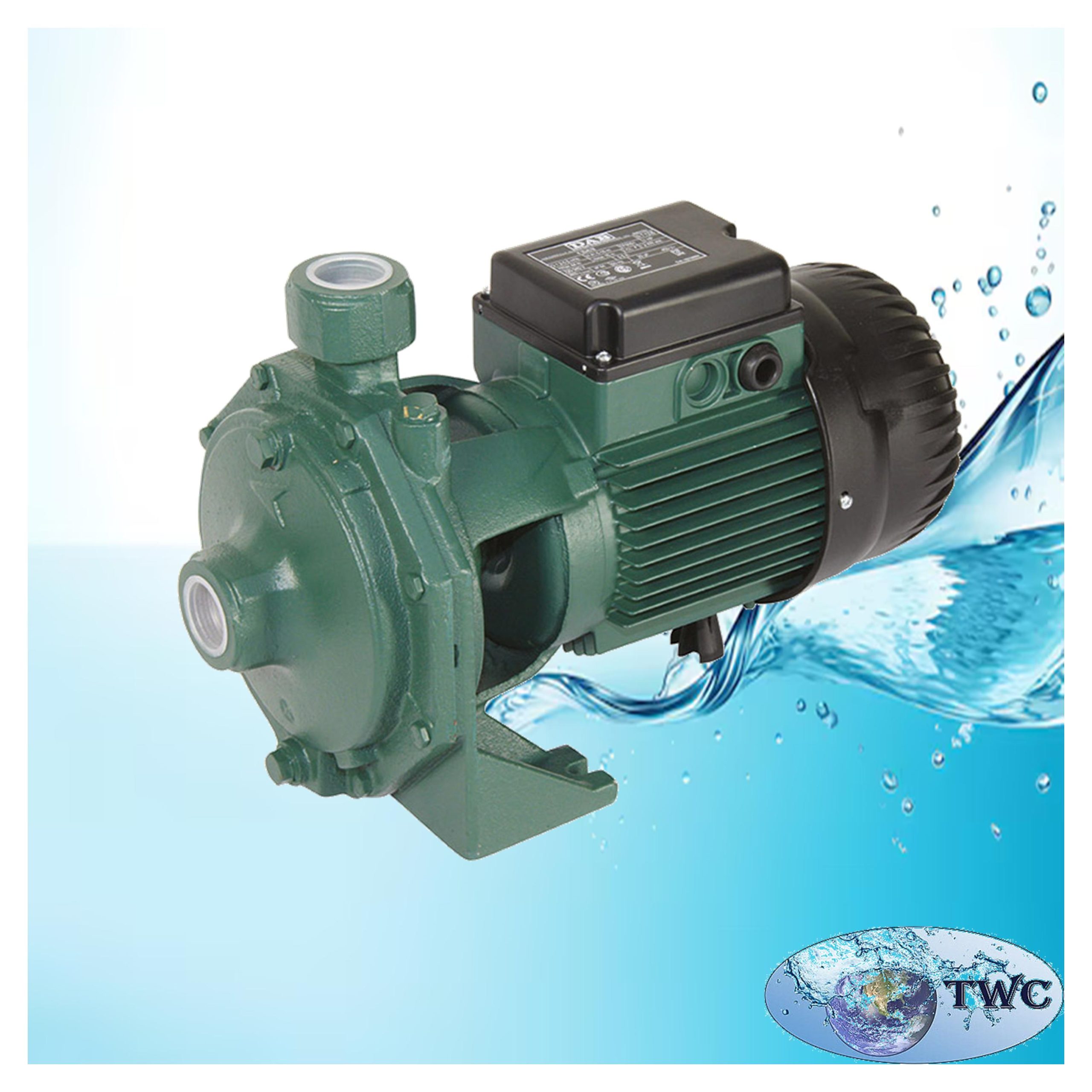

The DAB K 45/50 T is a high-quality twin-impeller centrifugal pump designed to provide efficient and reliable water pressurisation in domestic, commercial, agricultural and industrial installations.
The two impellers provide increased pressure performance compared with a conventional single-impeller pump, making this pump particularly suitable for applications where a combination of good flow rate and higher delivery pressure is required.
The pump is manufactured with a cast-iron pump body and motor support, while the impellers are constructed from durable technopolymer. A stainless-steel drive shaft and carbon/ceramic mechanical seal provide dependable operation and good resistance to normal wear.
The enclosed asynchronous motor is externally ventilated for effective cooling. The three-phase version should be installed with appropriate motor overload protection in accordance with applicable electrical regulations.
Features:
- DAB K Twin-Impeller centrifugal pump.
- 1.1 kW nominal motor power.
- Three-phase motor.
- 3 × 230–400 V, 50 Hz.
- Twin-impeller design for increased pressure performance.
- Cast-iron pump body.
- Cast-iron motor support.
- Durable technopolymer impellers.
- Stainless-steel drive shaft.
- Carbon/ceramic mechanical seal.
- Closed asynchronous motor.
- External motor ventilation cooling.
- Suitable for continuous water-supply applications.
- Suitable for pressure boosting.
- Suitable for pressure-vessel systems.
- Suitable for sprinkler irrigation.
- Suitable for general irrigation.
- Suitable for domestic, commercial and industrial applications.
- Maximum ambient temperature of +40°C.
- Protection rating IP44.
- Terminal board protection IP55.
- Motor insulation class F.
- Designed for clean water and liquids with characteristics similar to water.
Specifications:
- Brand: DAB.
- Pump series: K twin-impeller.
- Model: K 45/50 T.
- Pump type: Centrifugal twin-impeller pump.
- Motor type: Three-phase asynchronous motor.
- Nominal motor power (P2): 1.1 kW.
- Nominal motor power: 1.5 HP.
- Power supply: 3 × 230–400 V.
- Frequency: 50 Hz.
- Nominal current: 7.2–4.0 A.
- Starting current: 31.1–18 A.
- Nominal speed: 2,850 rpm.
- Motor efficiency class: IE2 in the referenced K 45/50 T technical data.
- Maximum operating pressure: 8 bar / 800 kPa.
- Maximum ambient temperature: +40°C.
- Liquid temperature: -10°C to +50°C.
- Protection rating: IP44.
- Terminal board protection: IP55.
- Insulation class: F.
- Installation: Horizontal or vertical, with motor above pump.
- Pump inlet: 1¼” G.
- Pump outlet: 1″ G.
- Pump body: Cast iron.
- Motor support: Cast iron.
- Impeller: Technopolymer.
- Shaft: Stainless steel.
- Mechanical seal: Carbon/ceramic.
- Pumped liquid: Clean water or liquids with similar characteristics.
- Maximum operating range: K-series range from approximately 1.2 to 30 m³/h, with heads up to 97 m depending on model.
Applications:
- Domestic water supply: Suitable for residential water-pressure boosting and general clean-water supply.
- Commercial water supply: Suitable for offices, shops, guesthouses, lodges, hotels and other commercial properties.
- Industrial water supply: Suitable for general clean-water transfer and pressure-boosting applications.
- Irrigation: Suitable for garden, agricultural and general irrigation systems.
- Sprinkler systems: Suitable for sprinkler and water-distribution systems requiring reliable pressure.
- Pressure boosting: Suitable for increasing water pressure in domestic and commercial water systems.
- Pressure vessel systems: Suitable for use with pressure vessels and automatic pressure-boosting installations.
- Water transfer: Suitable for transferring clean water between tanks, reservoirs and water-storage systems.
- Tank filling: Suitable for pumping clean water into elevated or storage tanks.
- Water treatment systems: Suitable for supplying clean water to certain water-treatment and filtration systems, subject to the required flow and pressure.
- General clean-water applications: Suitable for applications requiring reliable pumping of clean water or liquids with similar characteristics.
