Description

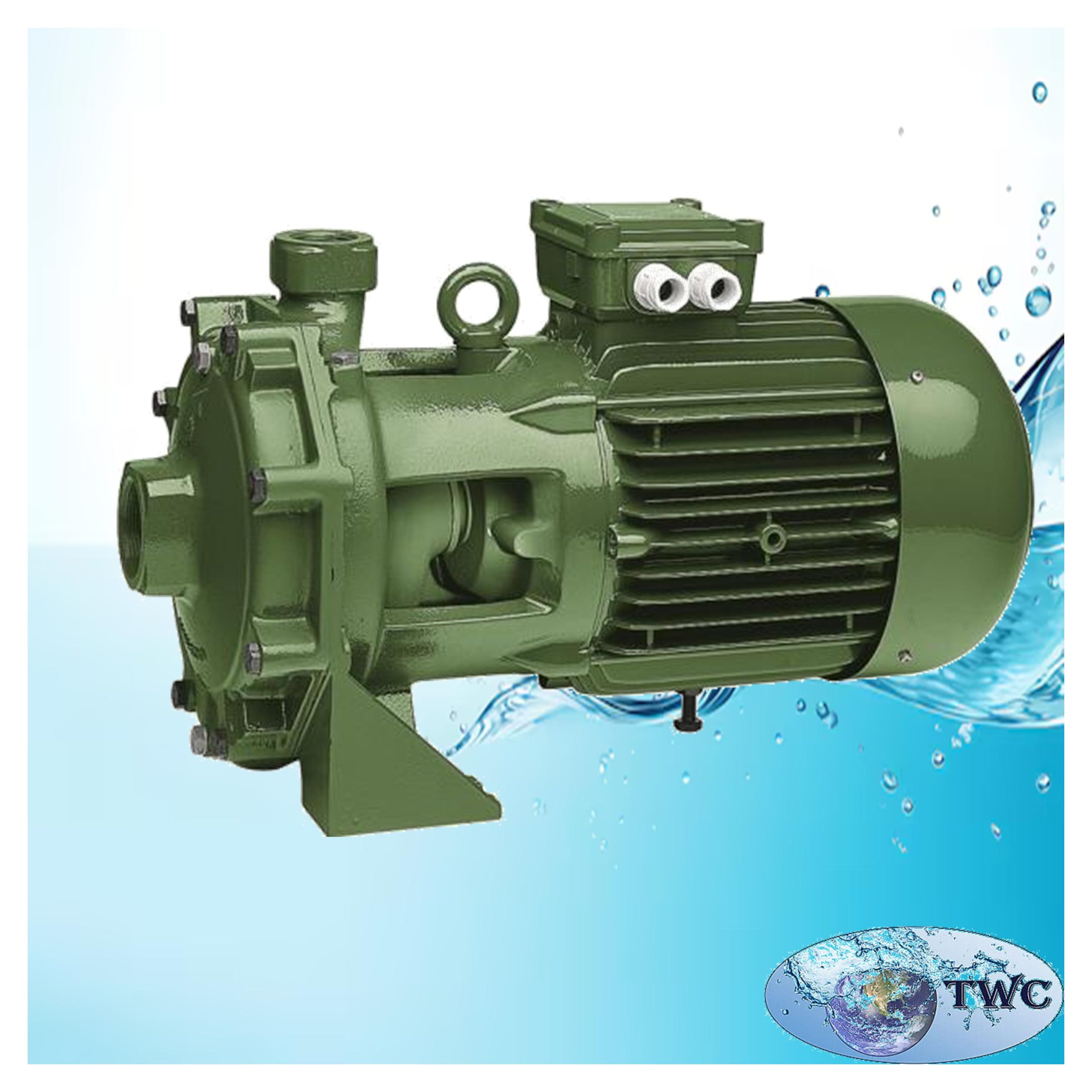

The DAB K 35/100 T is a robust twin-impeller centrifugal pump designed for reliable water boosting and pressure applications in domestic, commercial, agricultural and light industrial installations.

Its double-impeller configuration provides higher pressure performance than a conventional single-impeller pump while maintaining a compact and efficient design. The pump is suitable for water supply systems, pressure boosting, filling pressure vessels, sprinkler installations and general water transfer applications.

The three-phase motor operates on 3 × 230–400 V electrical supply and delivers 1.1 kW (1.5 HP) of nominal motor power. The K 35/100 T is suitable for fixed horizontal or vertical installation, provided the motor remains positioned above the pump.

Features:

• win-impeller centrifugal pump.
• 1.1 kW / 1.5 HP motor.
• Three-phase electrical supply.
• 3 × 230–400 V.
• Motor current: 6.5–3.5 A.
• High-pressure performance.
• Suitable for continuous water-supply applications.
• Compact and robust construction.
• Designed for pressure boosting.
• Suitable for filling pressure vessels.
• Suitable for sprinkler systems
• Suitable for domestic, commercial and industrial water supply.
• Fixed installation.
• Can be installed horizontally or vertically.
• Motor must remain above the pump.
• DAB quality engineering and construction.

Specifications:

• Brand: DAB.
• Pump type: Twin-Impeller centrifugal pump.
• Model: K 35/100 T.
• Motor power: 1.1 kW.
• Motor power: 1.5 HP.
• Electrical supply: 3 × 230–400 V.
• Frequency: 50 Hz.
• Motor type: Three-phase.
• Rated current: 6.5–3.5 A.
• Motor efficiency: IE3 on the current catalogue listing.
• Nominal speed: Approximately 2,850 rpm.
• Maximum operating pressure: 6 bar / 600 kPa.
• Installation: Fixed.
• Installation position: Horizontal or vertical.
• Motor position: Motor must remain above the pump.
• Pump configuration: Double / twin impeller.
• Maximum head: Up to approximately 97 m across the K Twin Impeller range; the exact operating head depends on flow rate and model.
• Connection: 1½” G suction / 1″ G delivery for the K 35/100 family.
• Operating temperature: For the K 35/100 family, approximately -10°C to +50°C according to DAB’s current K Twin Impeller information.

Applications:

• Domestic water supply systems.
• Commercial water supply systems.
• Industrial water supply systems.
• Agricultural water supply systems.
• Water pressure boosting systems.
• Irrigation systems.
• Sprinkler irrigation systems.
• Water transfer applications.
• Water decanting applications.
• Water mixing applications.
• Pressure-boosting units.
• Water storage tank tilling.
• Pressure vessel filling.
• Water treatment systems.
• Large-scale water distribution systems.
• Industrial process water systems.
• Agricultural irrigation networks.
• General clean-water pumping applications.
