Description

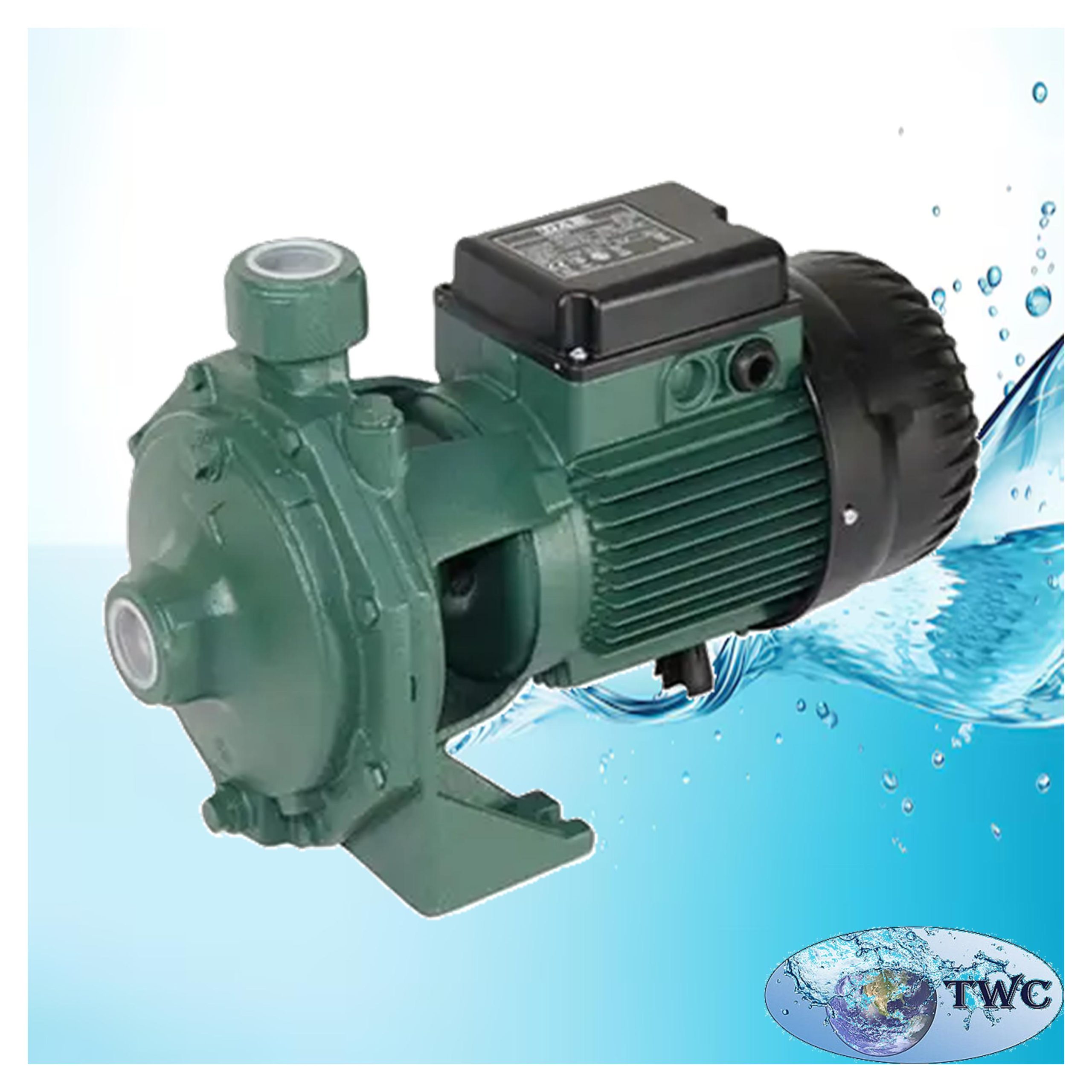

The DAB K20/41M 0.37kW Single-Phase Single-Impeller Centrifugal Pump is a compact, reliable and robust water pump designed for domestic, civil, agricultural, commercial and light industrial water applications.

The K20/41M combines a durable cast-iron pump body and motor support with a single centrifugal impeller, making it an excellent solution for general water transfer, water supply, irrigation, decanting, mixing and pressure boosting applications.

Powered by a 220–240 V single-phase electrical supply, this 0.37 kW pump is particularly suitable for installations where a standard single-phase electrical supply is required.

The pump features a carbon/ceramic mechanical seal, externally ventilated asynchronous motor and oversized ball bearings designed to provide reliable operation, low noise and long service life.

The DAB K Single-Impeller range is designed for domestic, civil, industrial and agricultural water systems, as well as decanting, mixing and irrigation applications.

Features:

• Brand: DAB.
• Model: K20/41M.
• Motor power: 0.37 kW.
• Motor output: 0.37 kW / 0.5 HP.
• Pump type: Single-impeller centrifugal.
• Power supply: 220–240 V single phase.
• Frequency: 50 Hz.
• Single centrifugal impeller.
• Cast-iron pump body.
• Cast-iron motor support.
• Technopolymer or cast-iron impeller depending on configuration.
• Carbon/ceramic mechanical seal.
• Closed asynchronous motor.
• External ventilation cooling.
• Oversized ball bearings.
• Built-in thermo-amperometric protection.
• Permanently fitted capacitor for single-phase operation.
• Horizontal or vertical installation.
• 1″ inlet.
• 1″ outlet.
• Maximum operating pressure of 6 bar.
• Suitable for clean-water applications.

Specifications:

• Brand: DAB.
• Series: K Single-Impeller.
• Model: K20/41M.
• Product type: Single-impeller centrifugal pump.
• Motor power: 0.37 kW.
• Nominal motor output: 0.37 kW.
• Horsepower: 0.5 HP.
• Motor type: Asynchronous.
• Power supply: 1 × 220–240 V.
• Frequency: 50 Hz.
• Motor current: Approximately 3 A.
• Motor speed: Approximately 2,800 rpm.
• Number of impellers: 1.
• Maximum operating pressure: 6 bar / 600 kPa.
• Maximum ambient temperature: +40°C.
• Liquid temperature: -10°C to +50°C.
• Inlet connection: 1″ G.
• Outlet connection: 1″ G.
• Pump body: Cast iron.
• Motor support: Cast iron.
• Impeller: Technopolymer or cast iron, depending on configuration.
• Mechanical seal: Carbon/ceramic.
• Installation: Horizontal or vertical.
• Motor position: Motor must remain above the pump.
• Motor protection: Built-in thermo-amperometric protection.
• Capacitor: Permanently fitted.
• Motor protection rating: IP44.
• Terminal board protection: IP55.
• Insulation class: F.

Applications:

• Domestic water supply.
• Household water transfer.
• Residential water boosting.
• Commercial water supply.
• Agricultural water systems.
• Small irrigation systems.
• Garden irrigation.
• Water transfer from storage tanks.
• Water distribution.
• Tank filling.
• Water circulation.
• Water treatment installations.
• Decanting applications.
• Mixing applications.
• Light industrial water applications.
• General clean-water pumping.
• Water transfer between tanks.
• Small pressure boosting systems.
