Description

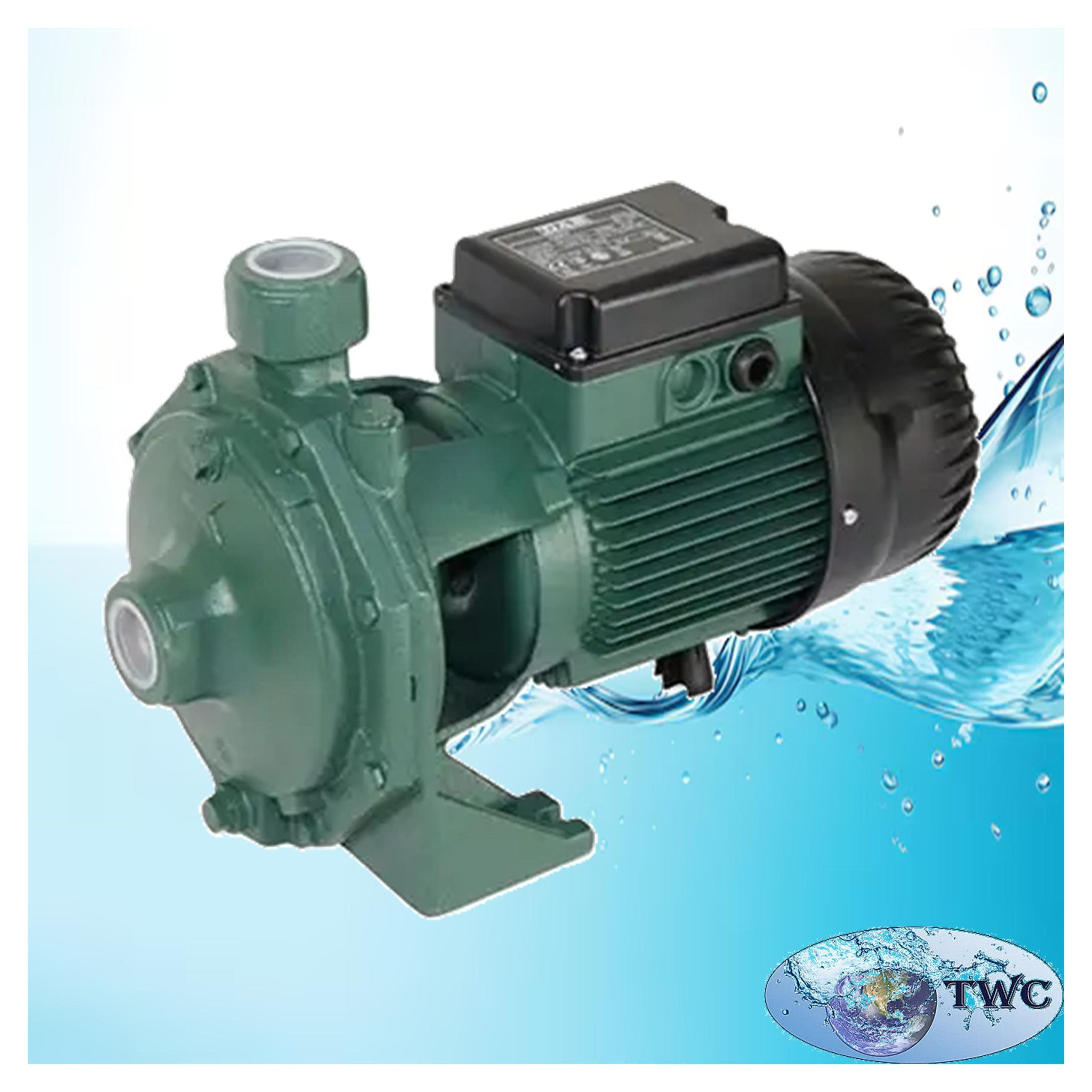

The DAB K 12/200 M is a robust single-impeller centrifugal pump designed for reliable water transfer and pressure applications in domestic, civil, industrial and agricultural installations. With a 0.75 kW (1 HP) single-phase motor, cast-iron pump construction and carbon/ceramic mechanical seal, the K 12/200 M provides dependable performance for clean-water pumping, irrigation, water transfer, mixing and decanting applications.

The pump can be installed in either a horizontal or vertical position, provided that the motor remains above the pump. It is suitable for pumping clean water and liquids with characteristics similar to water.

Features:

• DAB K Series single-impeller centrifugal pump.
• Model: K 12/200 M.
• Product code: 60168883.
• 0.75 kW nominal motor power.
• 1 HP nominal motor rating.
• Single-phase electrical supply.
• 220–240 V, 50 Hz.
• Robust cast-iron pump body and motor support.
• Single centrifugal impeller.
• Carbon/ceramic mechanical seal.
• Ball-bearing motor construction.
• External motor ventilation cooling.
• Built-in thermo-amperometric motor protection.
• Permanently fitted capacitor on single-phase version.
• 6 bar maximum operating pressure.
• Clean-water pumping capability.
• Horizontal or vertical installation possible, with motor above the pump.
• DAB construction for domestic, civil, industrial and agricultural applications.

Specifications:

• Brand: DAB pumps.
• Series: K single impeller.
• Model: K 12/200 M.
• Product code: 60168883.
• Pump type: Single-impeller centrifugal pump.
• Motor power P2: 0.75 kW.
• Motor rating: 1 HP.
• Power supply: 1 × 220–240 V.
• Frequency: 50 Hz.
• Maximum oower input P1: 1.1 kW.
• Nominal current: 5.2 A.
• Motor speed: approximately 2,940 rpm.
• Motor type: Closed asynchronous motor with external ventilation.
• Motor protection: Built-in thermo-amperometric protection.
• Capacitor: 25 µF / 450 V.
• Maximum operating pressure: 6 bar / 600 kPa.
• Maximum ambient temperature: +40 °C.
• Liquid temperature: -10 °C to +50 °C.
• Installation: Horizontal or vertical, with motor above pump.
• Suction connection: 1½” G.
• Discharge connection: 1½” G.
• Pump body: Cast iron.
• Motor support: Cast iron.
• Impeller: Technopolymer, according to the applicable technical configuration.
• Mechanical seal: Carbon/Ceramic.
• Pumped Liquid: Clean water and liquids with similar characteristics.

Applications:

• Domestic water supply and transfer.
• Civil water supply systems.
• Industrial water transfer.
• Agricultural water systems.
• Irrigation systems.
• Water transfer between tanks.
• Water treatment installations.
• Water purification systems
• General clean-water pumping.
• Decanting applications.
• Mixing applications.
• Pressure boosting and water circulation.
• General water-transfer duties.
