Description

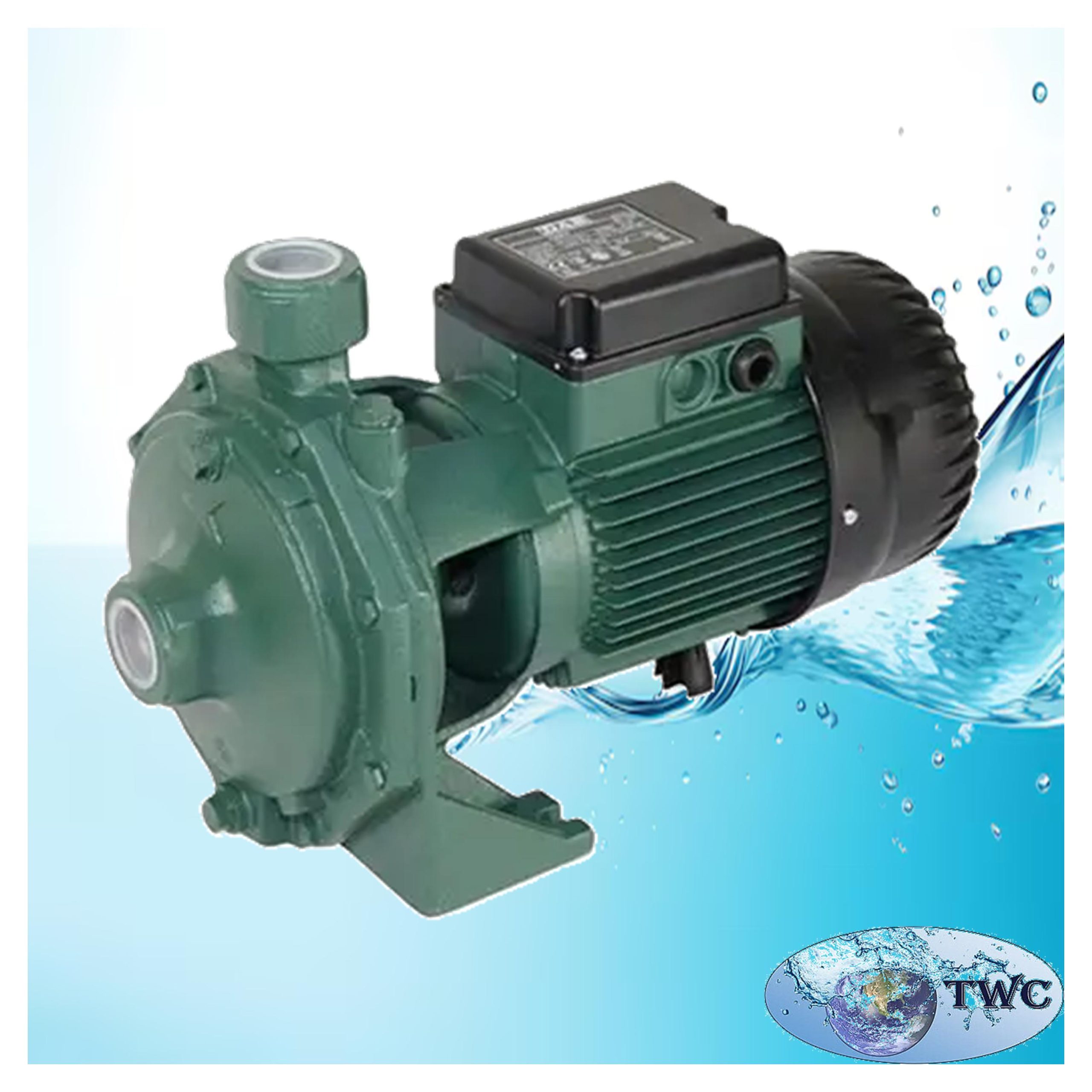

The DAB K 30/100 M is a robust single-impeller centrifugal pump designed for reliable water transfer and pressure applications in domestic, civil, industrial and agricultural installations.

Powered by a 1.1 kW (1.5 HP) single-phase motor, the K 30/100 M is suitable for clean-water pumping, water transfer, irrigation, decanting, mixing and a wide range of water-treatment applications.

The pump features a cast-iron pump body and motor support, a Technopolymer A impeller, and a carbon/ceramic mechanical seal. The single-phase motor incorporates built-in thermo-amperometric protection and a permanently fitted capacitor.

The DAB K 30/100 M can be installed horizontally or vertically, provided that the motor remains above the pump. It is designed for clean liquids that are free from solids and abrasives and have characteristics similar to water.

Features:

• Model: K 30/100 M.
• Product code: 102110042.
• Nominal motor power: 1.1 kW.
• Motor rating: 1.5 HP.
• Single-phase electrical supply.
• Rated voltage: 220–240 V.
• 50 Hz.
• Robust cast-iron pump body.
• Cast-iron motor support.
• Technopolymer A impeller.
• Carbon/ceramic mechanical seal.
• NBR rubber O-ring.
• AISI 303 stainless-steel shaft with rotor.
• Closed asynchronous motor.
• External ventilation cooling.
• Ball-bearing motor construction.
• Built-in thermo-amperometric protection.
• Permanently fitted capacitor on single-phase version.
• Maximum operating pressure: 6 bar / 600 kPa.
• Horizontal or vertical installation.
• Motor must remain above the pump.
• Designed for clean-water applications.
• MEI ≥ 0.70.
• DAB construction for domestic, civil, industrial and agricultural applications.

Specifications:

• Brand: DAB pumps.
• Series: K single impeller.
• Model: K 30/100 M.
• Product code: 102110042.
• Pump type: Single-impeller centrifugal pump.
• Motor power P2: 1.1 kW.
• Motor rating: 1.5 HP.
• Maximum power input P1: 1.6 kW.
• Power supply: 1 × 220–240 V.
• Frequency: 50 Hz.
• Nominal current: 7.1 A.
• Starting current: 33 A.
• Motor speed: 2,800 rpm.
• Motor type: Closed asynchronous motor with external ventilation.
• Motor protection: Built-in thermo-amperometric protection.
• Capacitor: 31.5 µF / 450 V.
• Motor protection rating: IP44.
• Maximum operating pressure: 6 bar / 600 kPa.
• Maximum ambient temperature: +40 °C.
• Minimum liquid temperature: -10 °C.
• Maximum liquid temperature: +50 °C.
• Suction connection: 1½” G.
• Discharge connection: 1″ G.
• Pump body: Cast Iron 200 UNI ISO 185.
• Motor support: Cast Iron 200 UNI ISO 185.
• Impeller: Technopolymer A.
• Mechanical seal: Carbon/Ceramic.
• O-Ring: NBR rubber.
• Shaft with rotor: AISI 303 stainless steel.

Applications:

• Domestic water supply and transfer.
• Civil water supply systems.
• Industrial water transfer.
• Agricultural water systems.
• Irrigation systems.
• Water transfer between tanks.
• Water treatment installations.
• Water purification systems.
• Reverse osmosis water-treatment systems.
• Filtration and pre-treatment systems.
• Clean-water circulation.
• Pressure boosting applications.
• Decanting applications.
• Mixing applications.
• General water-transfer duties.
