Description

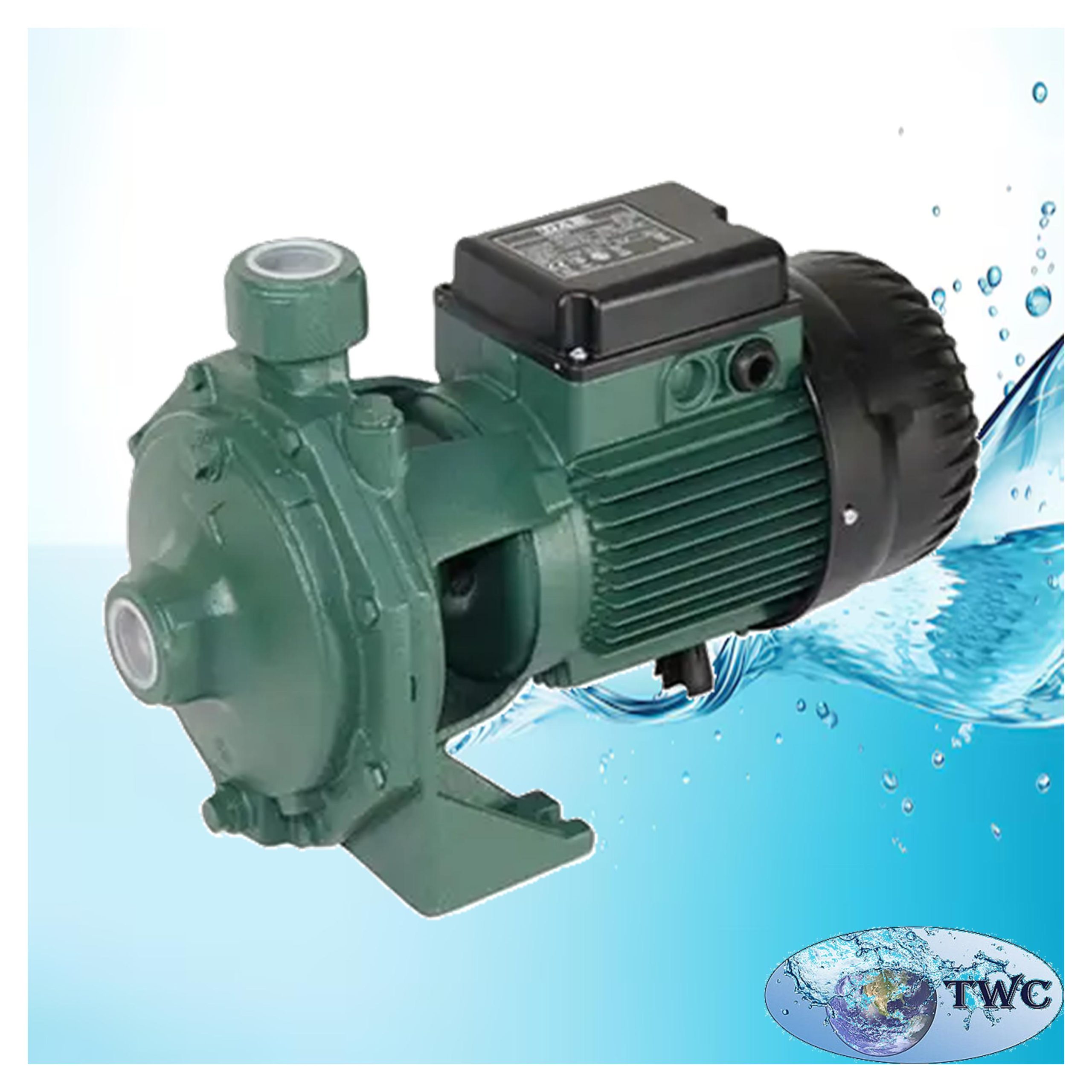

The DAB K 36/100 M is a robust single-impeller centrifugal pump designed for reliable clean-water pumping in domestic, civil, industrial and agricultural installations.

With a 1.85 kW (2.5 HP) single-phase motor, the K 36/100 M provides high-performance water transfer and pressure delivery for applications including irrigation, water supply, tank transfer, water treatment, water purification and general clean-water circulation.

The pump features a cast-iron pump body and motor support, a Technopolymer A single impeller and a carbon/ceramic mechanical seal. The single-phase motor is equipped with built-in thermo-amperometric protection and a permanently fitted capacitor.

The K 36/100 M can be installed in a horizontal or vertical position, provided that the motor remains above the pump. It is designed for clean liquids that are free from solids and abrasive materials and have characteristics similar to water.

Features:

• DAB K Series single-impeller centrifugal pump.
• Model: K 36/100 M.
• Product code: 102110162.
• Nominal motor power: 1.85 kW.
• Common market designation: 1.8 kW.
• Motor rating: 2.5 HP.
• Single-phase motor.
• 220–240 V supply.
• 50 Hz
• Robust cast-iron pump body.
• Cast-iron motor support.
• Technopolymer A impeller.
• Carbon/ceramic mechanical seal.
• NBR rubber O-ring.
• AISI 303 stainless-steel shaft with rotor.
• Closed asynchronous motor.
• External ventilation cooling.
• Ball-bearing motor construction.
• Built-in thermo-amperometric motor protection.
• Permanently fitted capacitor.
• Maximum operating pressure: 6 bar / 600 kPa.
• Horizontal or vertical installation.
• Motor must remain above the pump.
• Suitable for clean-water application.

Specifications:

• Brand: DAB pumps.
• Series: K single impeller.
• Model: K 36/100 M.
• Product code: 102110162.
• Pump type: Single-impeller centrifugal pump.
• Motor power P2: 1.85 kW.
• Motor rating: 2.5 HP.
• Maximum power input P1: 2.1 kW.
• Power supply: 1 × 220–240 V.
• Frequency: 50 Hz.
• Nominal current: 8.8 A.
• Motor speed: 2,850 rpm.
• Motor type: Closed asynchronous motor.
• Cooling: External ventilation.
• Motor protection: Built-in thermo-amperometric protection.
• Motor protection rating: IP44.
• Capacitor: Permanently fitted on single-phase version.
• Maximum operating pressure: 6 bar / 600 kPa.
• Maximum ambient temperature: +40 °C.
• Minimum liquid temperature: -10 °C.
• Maximum liquid temperature: +50 °C.
• Suction connection: 1½” G.
• Discharge connection: 1″ G.
• Pump body: Cast iron 200 UNI ISO 185.
• Motor support: Cast iron 200 UNI ISO 185.
• Impeller: Technopolymer A.
• Mechanical seal: Carbon/Ceramic.
• O-Ring: NBR rubber.
• Shaft with rotor: AISI 303 stainless steel.

Applications:

• Domestic water supply.
• Domestic water transfer.
• Commercial water systems.
• Civil water supply systems.
• Industrial water transfer.
• Agricultural water systems.
• Irrigation systems.
• Tank-to-tank water transfer.
• Water storage systems.
• Water treatment installations.
• Water purification systems.
• Filtration systems.
• Reverse osmosis system transfer duties.
• Clean-water circulation.
• Pressure boosting applications.
• Decanting applications.
• Mixing applications.
• General water-transfer applications.
