Description

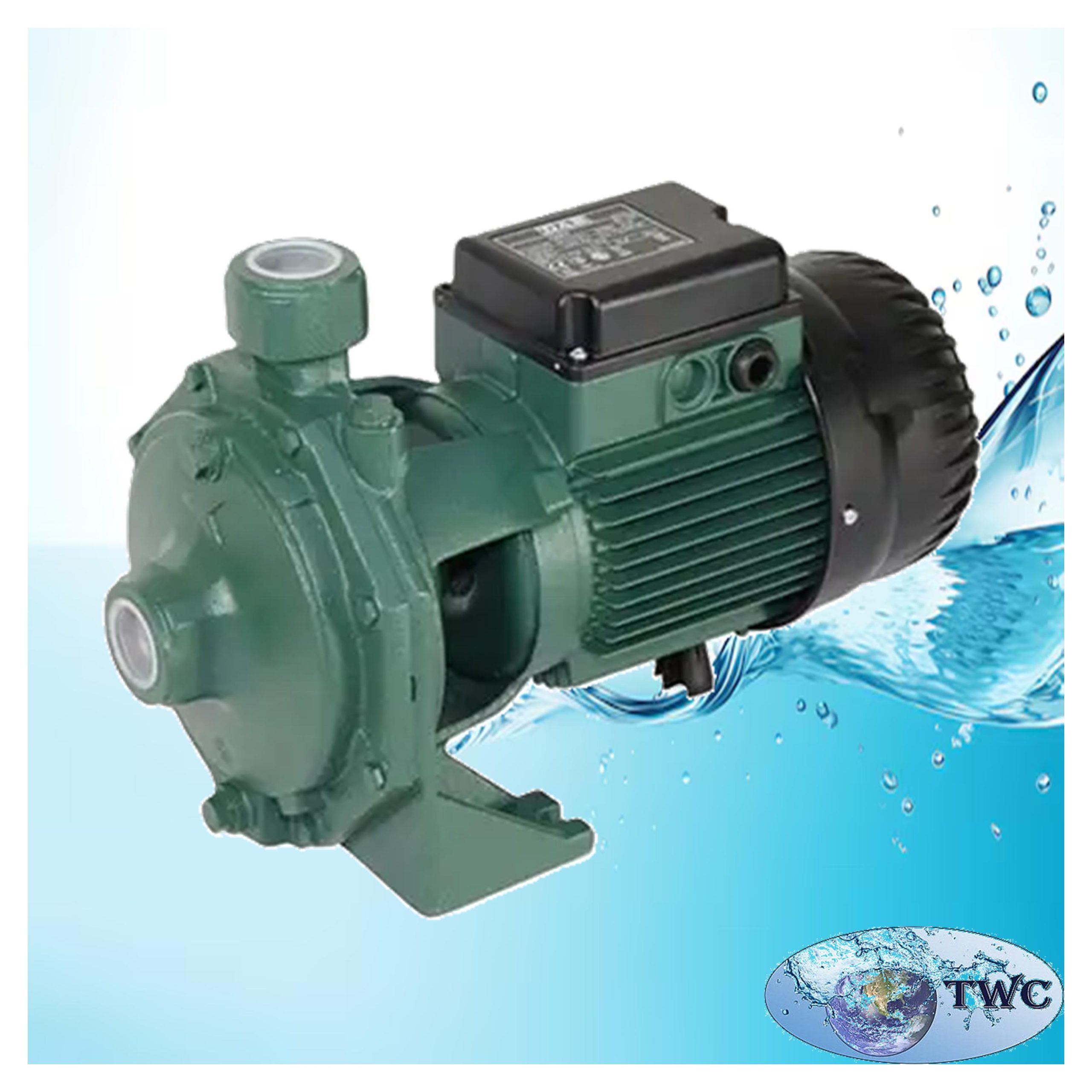

The DAB K 11/500 M is a robust single-impeller centrifugal pump designed for domestic, civil, industrial and agricultural water systems, as well as applications such as water transfer, decanting, mixing and irrigation.

The pump is equipped with a 2.2 kW single-phase motor and is designed for demanding water-transfer applications where reliable flow and pressure performance are required.

The K 11/500 M features a cast-iron pump body and motor support, a cast-iron impeller, carbon/ceramic mechanical seal and a durable construction suitable for continuous-duty water applications.

According to DAB’s catalogue, the K 11/500 M delivers heads from approximately 24.5 m at zero flow to 6.5 m at 30 m³/h, with a maximum operating pressure of 8 bar (800 kPa).

Features:

• DAB K Series single-impeller centrifugal pump.
• Model: K 11/500 M.
• DAB product code 60168869.
• 2.2 kW nominal motor output.
• 3 HP motor.
• Single-phase 230 V supply.
• 50 Hz operating frequency.
• Cast-iron pump body.
• Cast-iron motor support.
• Cast-iron impeller.
• Carbon/ceramic mechanical seal.
• EPDM O-ring.
• AISI 303 stainless-steel shaft with rotor.
• Closed asynchronous motor.
• External ventilation cooling.
• Ball-bearing supported rotor.
• Built-in thermal/current protection on single-phase version.
• Permanently connected capacitor.
• IP55 motor protection for the 2.2 kW version.
• IP55 terminal-box protection.
• Insulation class F.
• Maximum operating pressure: 8 bar.
• Maximum ambient temperature: +40 °C.
• Designed for clean, non-aggressive water and compatible liquids.
• Horizontal or vertical installation, with the motor positioned above the pump.

Specifications:

• Manufacturer: DAB pumps.
• Series: K single impeller.
• Model: K 11/500 M.
• Product code: 60168869.
• Pump type: Single-impeller centrifugal.
• Maximum operating pressure: 8 bar / 800 kPa.
• Maximum ambient temperature: +40 °C.
• Installation: Horizontal or vertical, with motor above pump.
• Pump weight: 34.2 kg.
• Nominal motor power P2: 2.2 kW.
• Motor power: 3 HP.
• Maximum input power P1: 2.8 kW.
• Voltage: 1 × 230 V.
• Frequency: 50 Hz.
• Nominal current: 12.5 A.
• Motor type: Single-phase asynchronous induction motor.
• Rated speed: approximately 2,900 rpm.
• Motor protection: IP55.
• Insulation class: F.
• Cooling: External ventilation.
• Thermal/current protection: Built into single-phase version.
• Capacitor: Permanently connected in single-phase version.

Applications:

• Domestic water supply and transfer.
• Commercial water systems.
• Industrial water transfer.
• Agricultural water systems.
• Irrigation systems.
• Water transfer between tanks.
• Water boosting and circulation.
• Water decanting and transfer.
• Mixing applications.
• General clean-water pumping.
• Water treatment plant applications.
• Pre-treatment and filtration systems.
• Reverse osmosis feed-water transfer.
• Storage-tank filling and transfer.
• General process-water applications where the pumped liquid is compatible with the pump materials.
