Description

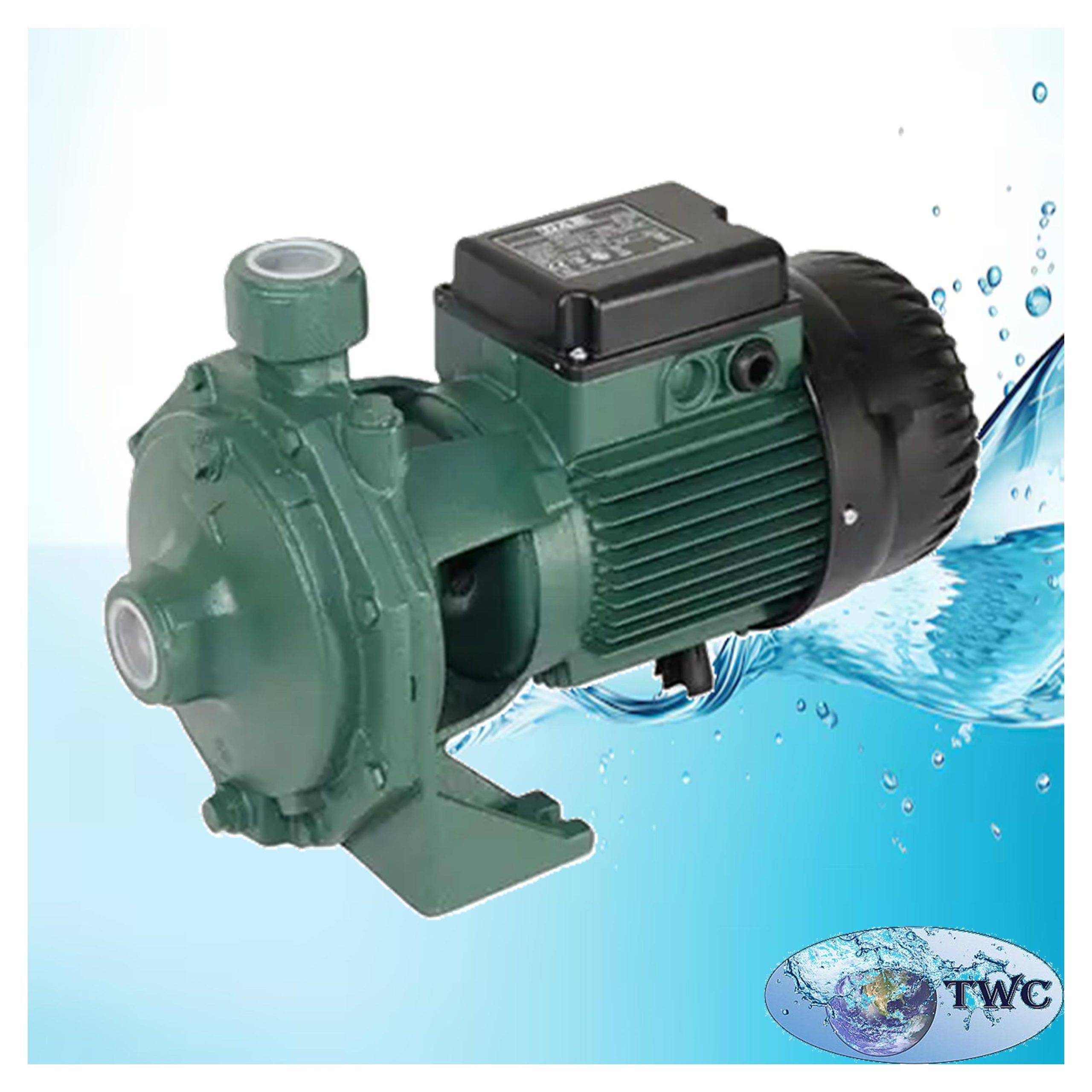

The DAB K 36/200 M is a robust single-impeller centrifugal pump designed for reliable clean-water transfer and water-supply applications in domestic, civil, industrial and agricultural installations.

Powered by a 2.2 kW (3 HP) single-phase motor, the K 36/200 M is designed for applications requiring substantial water flow and pressure. It is suitable for water transfer, irrigation, water supply, water treatment, tank transfer, mixing, decanting and general clean-water pumping.

The pump features a cast-iron pump body and motor support, a Technopolymer A impeller and a carbon/ceramic mechanical seal. The single-phase motor has built-in thermo-amperometric protection and a permanently fitted capacitor.

The K 36/200 M can be installed horizontally or vertically, provided that the motor remains above the pump.

DAB specifies the K single-impeller range for domestic, civil, industrial and agricultural systems, as well as transfer, mixing and irrigation applications.

Features:

• DAB K Series single-impeller centrifugal pump.
• Model: K 36/200 M.
• Product code: 60152451.
• 2.2 kW nominal motor power.
• 3 HP motor rating.
• Single-phase motor.
• 230 V, 50 Hz supply.
• Maximum input power P1: 3.0 kW.
• Nominal current: 13.5 A.
• Approximately 2,900 rpm.
• Robust cast-iron pump body.
• Cast-iron motor support.
• Technopolymer A impeller.
• Carbon/ceramic mechanical seal.
• EPDM rubber O-ring.
• AISI 303 stainless-steel shaft with rotor.
• Enclosed asynchronous motor.
• External ventilation cooling.
• Built-in thermo-amperometric protection.
• Permanently fitted capacitor.
• IP55 motor protection for the 2.2 kW version.
• IP55 terminal box.
• Insulation class F.
• Maximum operating pressure: 8 bar / 800 kPa.
• Horizontal or vertical installation.
• Motor must remain above the pump.
• 2″ G suction connection.
• 1¼” G discharge connection.
• Suitable for clean-water applications.
• MEI ≥ 0.70.

Specifications:

• Brand: DAB pumps.
• Series: K single impeller.
• Model: K 36/200 M.
• Product code: 60152451.
• Pump type: Single-impeller centrifugal pump.
• Motor power P2: 2.2 kW.
• Motor rating: 3 HP.
• Maximum power input P1: 3.0 kW.
• Power supply: 1 × 230 V.
• Frequency: 50 Hz.
• Nominal current: 13.5 A.
• Motor speed: approximately 2,900 rpm.
• Motor type: Enclosed asynchronous motor.
• Cooling: External ventilation.
• Motor protection: IP55.
• Terminal box protection: IP55.
• Insulation class: F.
• Capacitor: 80 µF / 450 V.
• Maximum operating pressure: 8 bar / 800 kPa.
• Maximum ambient temperature: +40 °C.
• Minimum liquid temperature: -10 °C.
• Maximum liquid temperature: +50 °C.
• Suction connection: 2″ G.
• Discharge connection: 1¼” G.
• Pump body: Cast iron 200 UNI ISO 185.
• Motor support: Cast iron 200 UNI ISO 185.
• Impeller: Technopolymer A.
• Mechanical seal: Carbon/ceramic.
• O-ring: EPDM rubber.
• Shaft with rotor: AISI 303 stainless steel.

Applications:

• Domestic water supply.
• Domestic water transfer.
• Commercial water systems.
• Civil water supply.
• Industrial water transfer.
• Agricultural water systems.
• Irrigation systems.
• Tank-to-tank water transfer.
• Water storage systems.
• Water treatment installations.
• Water purification systems.
• Filtration systems.
• Reverse osmosis system transfer duties.
• Clean-water circulation.
• Decanting applications.
• Mixing applications.
• General water-transfer applications.
