Description

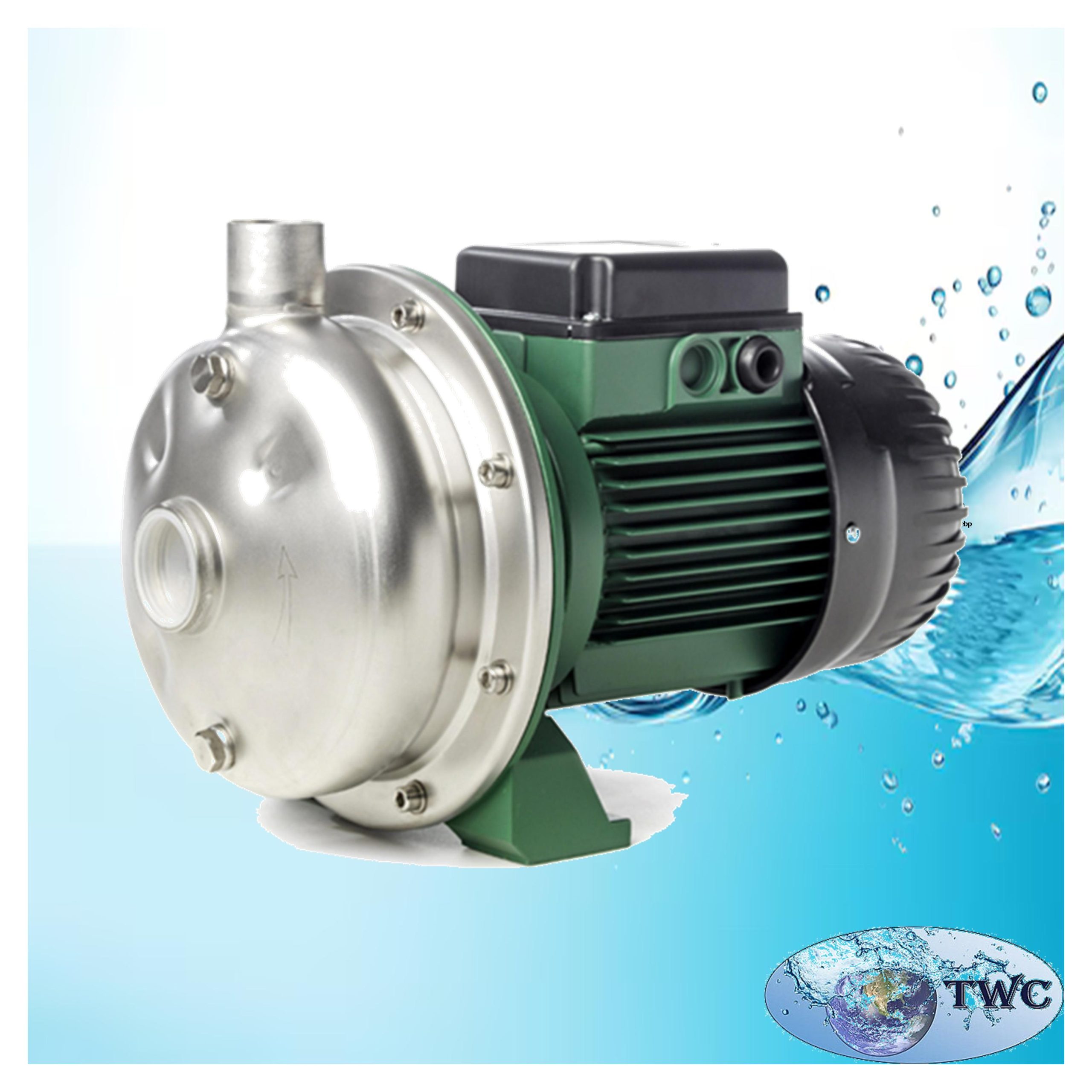

The DAB Centrifugal Stainless Steel KI Pump 0.75kW – Single Phase KI 30/90 is a premium single-impeller centrifugal pump designed for the efficient transfer of clean water and non-aggressive liquids in domestic, agricultural, commercial, and industrial applications. Manufactured entirely with a high-quality AISI 304 stainless steel pump body and impeller, the KI 30/90 offers exceptional corrosion resistance, hygienic operation, and long-lasting durability, making it ideal for demanding environments where water quality is essential.
Powered by a 0.75kW (1.0 HP) single-phase motor, the KI 30/90 delivers reliable, energy-efficient performance with quiet operation and minimal maintenance requirements. Its compact design makes it an excellent choice for pressure boosting systems, water transfer, industrial washing, irrigation, cooling systems, and general water supply applications.
Designed for pumping clean, non-abrasive and chemically neutral liquids, the DAB KI 30/90 can be installed in either a horizontal or vertical position, provided the motor remains above the pump. Its stainless steel construction makes it particularly suitable for applications where corrosion resistance and hygienic performance are important.
Features:
- Single-impeller stainless steel centrifugal pump.
- 0.75kW (1.0 HP) single-phase motor.
- 220–230V, 50Hz power supply.
- Pump body and impeller manufactured from AISI 304 stainless steel.
- Excellent corrosion resistance.
- Maximum flow rate: up to 11.7 m³/h (195 L/min).
- Maximum head: up to 31.4 metres.
- Carbon/ceramic mechanical seal.
- Aluminium motor support.
- Closed, externally ventilated asynchronous motor.
- Built-in thermal overload protection.
- Quiet and energy-efficient operation.
- Suitable for horizontal or vertical installation (motor positioned above the pump).
- Easy installation and low maintenance.
Specifications:
- Pump model: KI 30/90 M.
- Pump type: Single-impeller stainless steel centrifugal pump.
- Motor power: 0.75kW (1.0 HP).
- Power supply: 220–230V, Single phase, 50Hz.
- Maximum flow rate: 11.7 m³/h (195 L/min).
- Maximum head: 31.4 m.
- Maximum operating pressure: 8 bar.
- Inlet connection: 1¼”.
- Outlet connection: 1″.
- Liquid temperature: -10°C to +90°C.
- Maximum ambient temperature: +40°C.
- Protection class: IP55.
- Insulation class: F.
- Pump body: AISI 304 Stainless steel.
- Impeller: AISI 304 Stainless steel.
- Mechanical Seal: Carbon/Ceramic.
- Motor support: Aluminium.
- Suitable for: Clean, non-abrasive, chemically neutral liquids.
Applications:
- Domestic water supply.
- Pressure boosting systems.
- Water transfer.
- Agricultural irrigation.
- Commercial water systems.
- Industrial washing systems.
- Cooling and circulation systems.
- Process water applications.
- General clean water pumping.
Why Choose the DAB KI 30/90 Stainless Steel Pump?
The DAB KI 30/90 combines premium stainless steel construction with reliable hydraulic performance to provide an efficient and durable pumping solution for clean water applications. Its hygienic AISI 304 stainless steel design offers superior corrosion resistance, making it ideal for water supply, pressure boosting, industrial washing, and process water systems. Backed by DAB’s renowned engineering and manufacturing quality, the KI 30/90 delivers dependable performance, low maintenance, and a long operational lifespan.
