Description

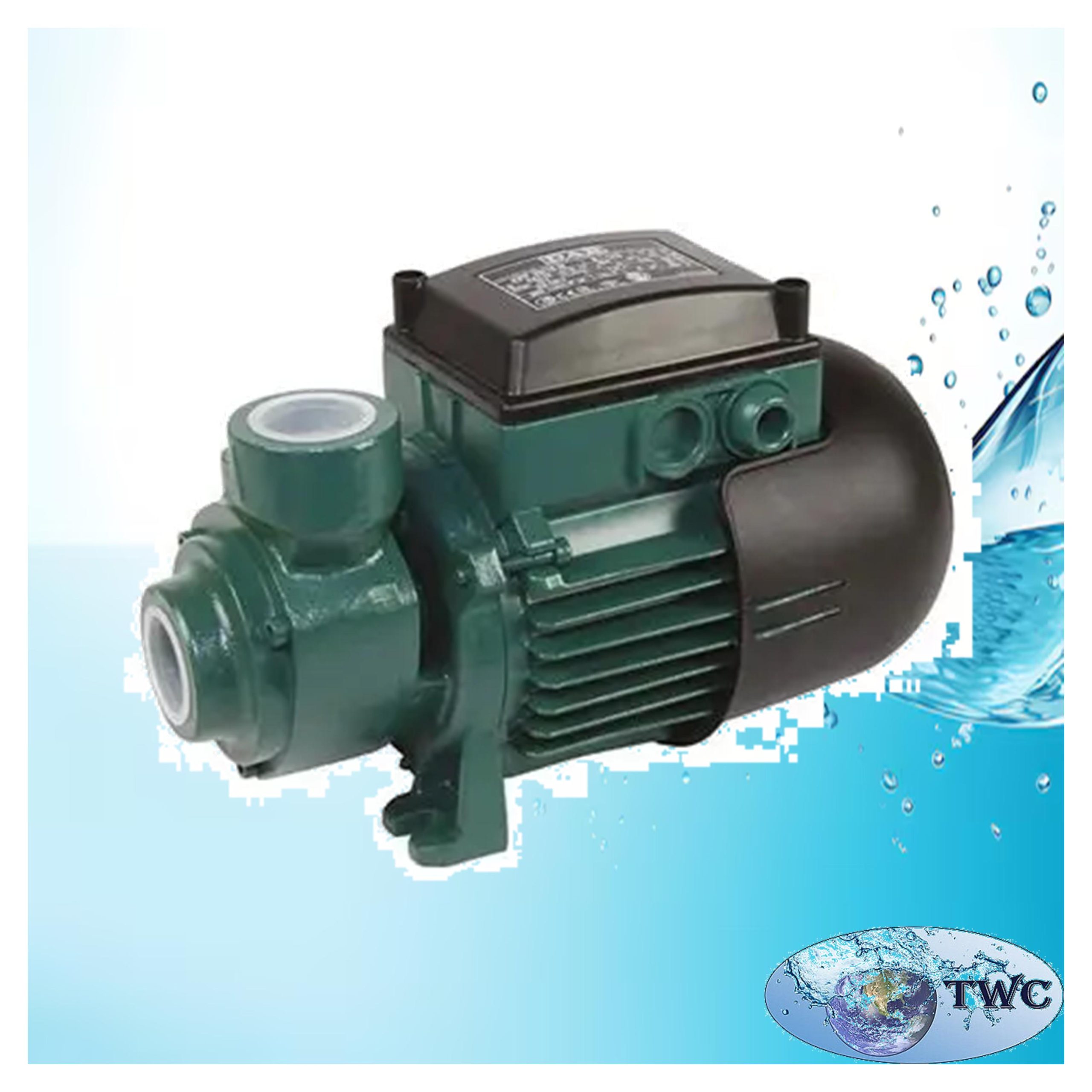

DAB KPF peripheral centrifugal pump 0.37kW – three phase
Peripheral centrifugal pump with compact dimensions. capable to generate high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for small industrial uses such as feeding pressurized boilers (anti-condensation).
Operating range: from 5 to 50 l/m with head up to 84 meters.
Brass pump body and motor support for KP 60/6 and KP 60/12. Cast iron pump body with radial suction for KP and KPS, frontal suction for KPF.
Brass impeller. Carbon/ceramic mechanical seal. IP44.
Liquid temperature range: from 0 °C to +35 °C for domestic use, from -10°C to +50°C for other uses.
Type: Peripheral
Discover the DAB KPF peripheral centrifugal pump 0.37kW – three phase : A powerful and durable solution for precise irrigation. With a 0.37 kW motor and 230/400 V voltage, it efficiently delivers water over long distances. Its corrosion-resistant design ensures longevity, making it suitable for agricultural, orchard, greenhouse, landscaping, and residential irrigation. Installation is straightforward, and it’s easy to monitor. Elevate your irrigation with your reliable partner for optimal water distribution.
CONSTRUCTION FEATURES OF THE PUMP
Brass pump body and motor support for KP 60/6 and KP 60/12. Pump body with radial suction for KP and KPS; front suction for KPF. Cast iron support with brass wear disc for KPS 30/16 and KP 38/18. KPS 30/16 is available on request with bronze pump body and support. Brass impeller. Carbon/ceramic mechanical seal
CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in therm-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41).
