Description

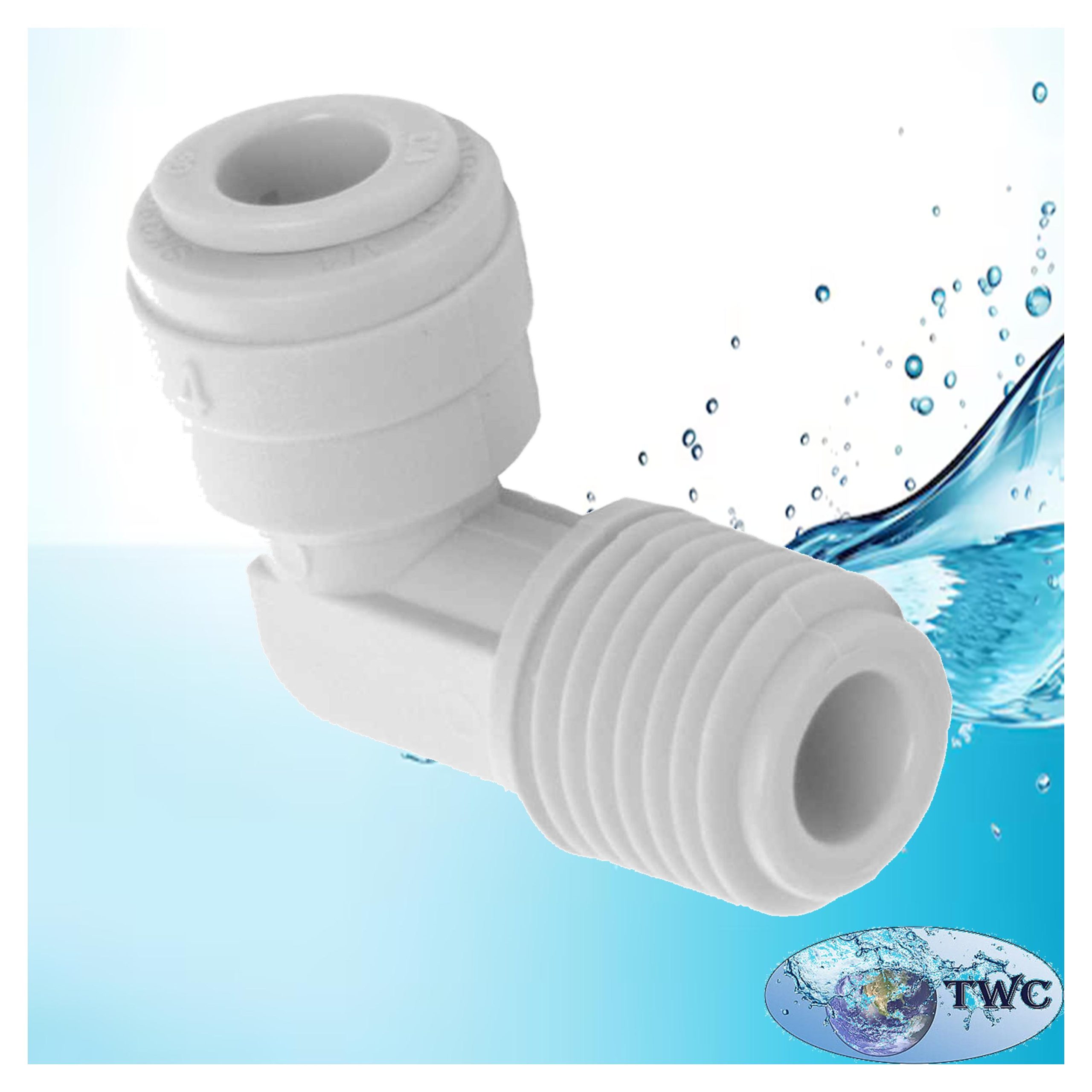

The 1/4″ thread × 3/8″ OD Quick-Connect elbow fitting is a compact 90° fitting designed to connect compatible 3/8″ OD tubing to a component with a compatible 1/4″ threaded connection. The 90° elbow configuration allows the tubing to change direction neatly, helping simplify tubing routing around components and within confined installation spaces.

The push-to-connect design allows compatible 3/8″ OD tubing to be installed quickly without additional clamps or specialised tools. The fitting is suitable for compatible reverse osmosis (RO), water filtration, water purification and other water-treatment applications.

Features:

• 90° elbow configuration.
• 1/4″ threaded connection.
• 3/8″ OD Quick-Connect connection.
• Push-to-connect design.
• Suitable for compatible 3/8″ OD tubing.
• Compact design.
• Helps simplify tubing routing.
• Suitable for confined installation spaces.
• Easy to install.
• Suitable for RO systems.
• Suitable for water filtration systems.
• Suitable for water purification systems.
• Useful for system repairs and modifications.
• Suitable for replacement applications.

Specifications:

• Product type: 90° Quick-Connect elbow fitting.
• Thread size: 1/4″.
• Thread type:  NPT.
• Thread connection: Male.
• Tubing connection: 3/8″ OD Quick-Connect.
• Connection type: Threaded × push-fit.
• Configuration: 90° Elbow.
• Compatible tubing: 3/8″ OD tubing.
• Application: RO, water filtration and water-treatment systems.

Applications:

• Domestic reverse osmosis systems.
• Commercial RO systems.
• Under-counter water filtration systems.
• Drinking-water filtration systems.
• Water purification systems.
• RO filter assemblies.
• Water-treatment equipment.
• Filter housing connections.
• Pressure regulator connections.
• Water dispenser systems.
• System repairs and modifications.
• Replacement fitting applications.

Why choose 1/4″ male × 3/8″ Quick-Connect elbow?

• 90° Direction change: Allows 3/8″ tubing to change direction neatly without requiring a sharp bend.
• Easy tubing connection: The Quick-Connect design allows compatible tubing to be inserted quickly and easily.
• Compact design: Suitable for installations where space around components is limited.
• Neat tubing routing: Helps keep tubing organised around filters, regulators and other components.
• Versatile application: Suitable for compatible RO, filtration, purification and water-treatment systems.
• Easy maintenance: Useful for replacement, servicing and system modifications.
• Two connection types: Combines a 1/4″ Male NPT threaded connection with a 3/8″ OD Quick-Connect tubing connection.
