Description

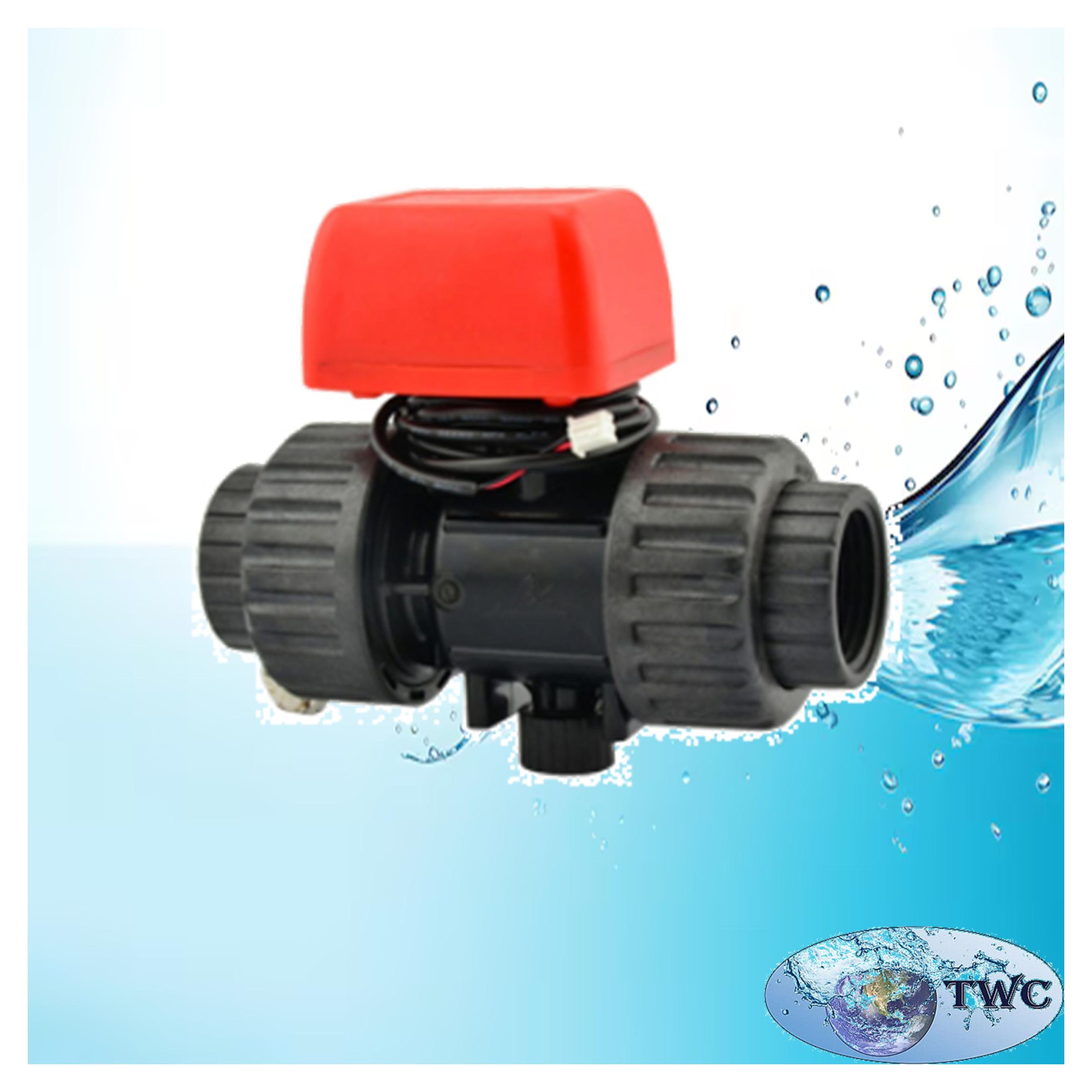

The Runxin Q931013C-50 is a compact, electrically operated ¾″ (DN20) motorized ball valve designed for reliable automatic control of water flow in water treatment and purification systems. The 3-wire motorized design allows the valve to be integrated into suitable automatic control systems for water treatment, filtration, purification and general fluid-control applications.

The valve features a durable PVC body and ceramic ball, providing good resistance to corrosion, chemical attack and scale build-up. The ceramic ball provides a durable sealing surface for reliable operation in compatible water-treatment applications.

The Q931013C-50 provides a larger flow path for systems requiring greater water-flow capacity. A compatible switching or control system allows the motorized actuator to electrically open and close the valve.

Engineers can particularly use the valve for automated water-treatment and filtration equipment where they require reliable electrical control of water flow.

Features:

• Durable PVC body with ceramic ball.
• 3-wire electric actuator for reliable automated operation.
• It automatically closes when you remove power.
• Very low energy consumption once the valve reaches its operating position.
• Corrosion, chemical, and scale resistant.
• Full-port design for maximum flow and low pressure loss.
• Leak-resistant, maintenance-free operation.
• Suitable for automatic open/close control.
• Simple ON/OFF electrical control.
• Easy to install and maintain.
• Suitable for a wide range of water systems.

Specifications:

• Valve port size: 50 mm (2″).
• Connection size: 63 mm (2½”).
• Connection type: Glue-in.
• Product type: Motorized ball valve.
• Actuator type: 3-wire electric actuator.
• Working pressure: 0–1 MPa (0–10 bar).
• Operating temperature: 1°C to 60°C.
• Voltage: DC 24 V.
• Valve body material: PVC.
• Ball material: Ceramic.
• Opening time: 3 seconds.
• Closing time: 12.5 seconds.
• Valve design: Full port.
• Control: Automatic ON/OFF.
• Power consumption: Very low once the valve reaches its operating position.
• Fail-safe function: Removing power closes the valve.

Applications:

• Reverse osmosis and water purification systems.
• Water filtration and treatment plants.
• Irrigation and agricultural systems.
• Swimming pool and spa equipment.
• Water storage and distribution systems.
• Commercial and industrial process-water control.
• Borehole water systems.
• Automatic water shut-off systems.
• Pump automation and protection.
• Large-volume water flow control.
• General-purpose automated water flow control.

Why Choose the 50 mm (2½”) port motorized ball valve?

• Automatic flow control: Provides reliable electric operation for automated water systems.
• Power-loss shut-off: Automatically closes when power is removed, helping prevent unwanted water flow.
• Low energy consumption: Power is primarily used while the valve changes position.
• Durable construction: PVC and ceramic components provide excellent resistance to corrosion, chemicals, and scale.
• High-flow capacity: The full-port design helps maintain efficient flow with minimal pressure loss.
• Fast operation: Opens in approximately 3 seconds and closes in approximately 12.5 seconds.
• Simple control: Can be integrated with suitable ON/OFF control systems.
• Maintenance-free operation: Designed for dependable long-term automated flow control.
• Ideal for larger pipework: The 50 mm (2″) size is well suited to higher-flow water-treatment, irrigation, and industrial applications.
