Description

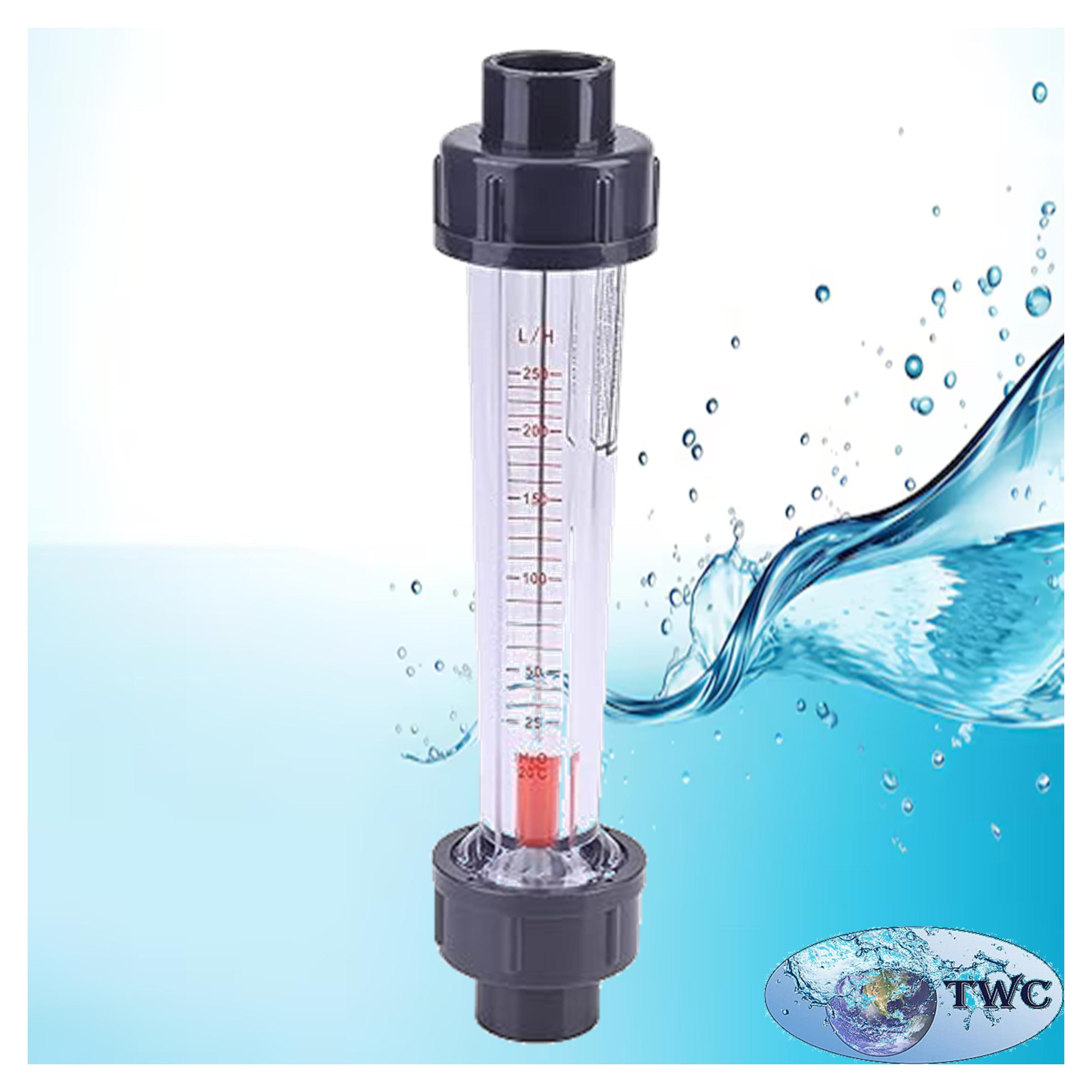

The Rotameter 12–60 m³/h plastic tube type flow meter is an in-line variable-area flow meter designed for measuring and monitoring the flow rate of water through a piping system. The visible float moves within the graduated measuring tube as water passes through the meter, allowing the operator to quickly read the approximate flow rate.
Its plastic tube construction and easy-to-read graduated scale provide a simple visual solution for monitoring higher water-flow rates in filtration, water purification, reverse osmosis and other water-treatment applications. The mechanical design requires no electrical power for basic flow measurement, making the rotameter suitable for commercial and industrial water-treatment systems.
Features:
- Flow range: 12–60 m³/h (approximately 200–1,000 L/min).
- Plastic tube-type rotameter.
- Variable-area flow measurement.
- Easy-to-read graduated flow scale.
- Visible float for direct flow indication.
- Simple mechanical operation.
- No electrical power required.
- Lightweight construction.
- Corrosion-resistant construction.
- Suitable for water applications.
- Suitable for filtration and water-treatment systems.
- Suitable for commercial and industrial water-treatment applications.
- Suitable for higher-flow water-treatment systems.
Specifications:
- Product type: Variable-area flow meter / Rotameter.
- Flow range: 12–60 m³/h.
- Equivalent flow range: Approximately 200–1,000 L/min.
- Measuring medium: Water.
- Body material: Acrylonitrile Styrene.
- Float material: Plastic.
- Guide material: 316L stainless steel.
- Connection size: 75 mm.
- Connection type: uPVC socket.
- Maximum working pressure: 10 bar.
- Maximum temperature: 80°C.
- Installation: In-line.
- Power requirement: None.
Applications:
- Industrial reverse osmosis systems.
- Commercial reverse osmosis systems.
- Water purification systems.
- Pre-treatment systems.
- Post-treatment systems.
- Water treatment plants.
- Membrane filtration systems.
- Process-water systems.
- Industrial water-treatment equipment.
- Commercial water-treatment equipment.
- High-flow filtration systems.
- Flow monitoring on water-treatment pipelines.
- General high-flow water monitoring.
How a Rotameter works:
A rotameter is a variable-area flow meter. As water flows upward through the measuring tube, it causes the internal float to rise. The position of the float corresponds to the water flow rate shown on the graduated scale.
As the flow rate increases, the float rises to a higher position within the measuring tube. The operator can then read the approximate water flow rate directly from the graduated scale.
This provides a simple visual indication of water flow without requiring electrical power.
Installation:
The rotameter should be installed in accordance with the manufacturer’s installation requirements, with the measuring tube positioned in the correct orientation to allow the float to move freely and provide a clear flow-rate reading.
The connected pipework should be properly supported to prevent excessive mechanical stress on the meter. Flush the pipework before installation to remove debris that could interfere with the float or measuring tube.
Ensure that the system flow falls within the rotameter’s 12–60 m³/h measuring range and that the operating pressure and temperature remain within the manufacturer’s specified limits.
Important:
- Check that the required system flow falls within the 12–60 m³/h measuring range.
- The equivalent flow range is approximately 200–1,000 L/min.
- Confirm that the connection size and connection type are compatible with the existing piping system.
- Ensure that the system operating pressure does not exceed the manufacturer’s specified maximum working pressure.
- Ensure that the operating temperature remains within the manufacturer’s specified temperature range.
- Install the rotameter in the correct orientation to allow the float to move freely.
- Flush the pipework before installation to remove debris.
- Support connected pipework to prevent excessive mechanical stress on the rotameter.
